R5F21368 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K

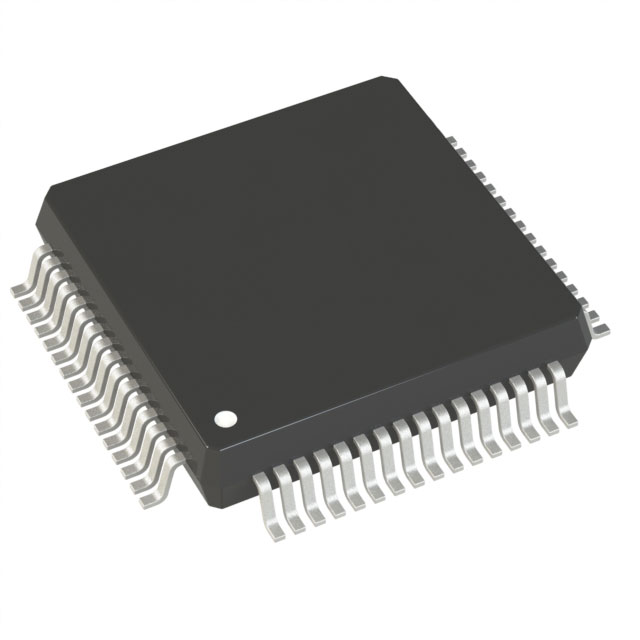

IC MCU 16BIT 64KB FLASH 64LQFP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Oscillator Type | Speed | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Program Memory Type | EEPROM Size | Number of I/O | Connectivity | RAM Size | Core Size | Package / Case | Program Memory Size | Peripherals | Core Processor | Mounting Type | Data Converters | Supplier Device Package | Data Converters [custom] | Data Converters [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 105 ¯C | -20 °C | Internal | 20 MHz | 1.8 V | 5.5 V | FLASH | 4K x 8 | 59 | I2C LINbus SIO SSU UART/USART | 6 K | 16-Bit | 64-LQFP | 64 KB | POR PWM Voltage Detect WDT | R8C | Surface Mount | A/D 12x10b | 64-LQFP (14x14) | ||
Renesas Electronics Corporation | 85 C | -40 ¯C | Internal | 20 MHz | 1.8 V | 5.5 V | FLASH | 4K x 8 | 59 | I2C LINbus SIO SSU UART/USART | 6 K | 16-Bit | 64-LQFP | 64 KB | POR PWM Voltage Detect WDT | R8C | Surface Mount | A/D 12x10b D/A 2x8b | 64-LQFP (14x14) | ||
 Renesas Electronics Corporation | 85 C | -40 ¯C | Internal | 20 MHz | 2.7 V | 5.5 V | FLASH | 4K x 8 | 59 | CANbus I2C LINbus SIO SSU UART/USART | 6 K | 16-Bit | 64-LQFP | 64 KB | POR PWM Voltage Detect WDT | R8C | Surface Mount | A/D | 64-LFQFP (10x10) | 10 b | 16 |
