JB Series
Manufacturer: American Electrical Inc.
Beta
⌘K
JUNCTION BOX PLAS 3.23"LX3.15"W
| Part | Design | Area (L x W) | Area (L x W) | Container Type | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height | Height | Color | Ratings | Material | Area (L x W) [custom] | Area (L x W) [custom] | Area (L x W) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

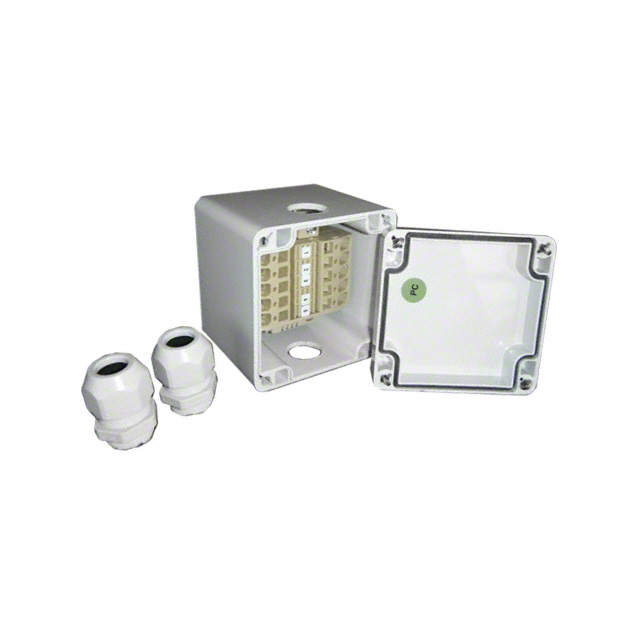

 American Electrical Inc. | Cover Included | 10.3 in² | 66 cm² | Junction Box | Sealed Terminals - 5 | 80 mm | 3.228 in | 82 mm | 3.15 in | 85 mm | 3.346 in | Gray | IP65 | Plastic Polycarbonate | ||||

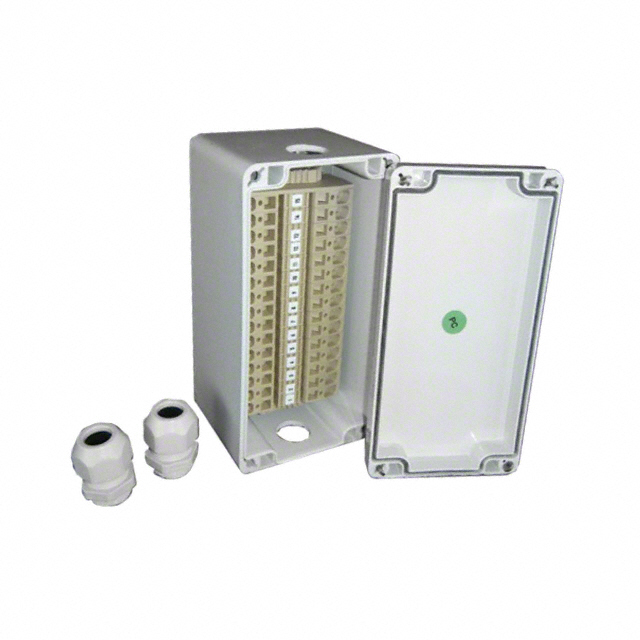

 American Electrical Inc. | Cover Included | Junction Box | Sealed Terminals - 15 | 80 mm | 6.299 " | 160 mm | 3.15 in | 85 mm | 3.346 in | Gray | IP65 | Plastic Polycarbonate | 19.8 in˛ | 128 cm˛ | ||||

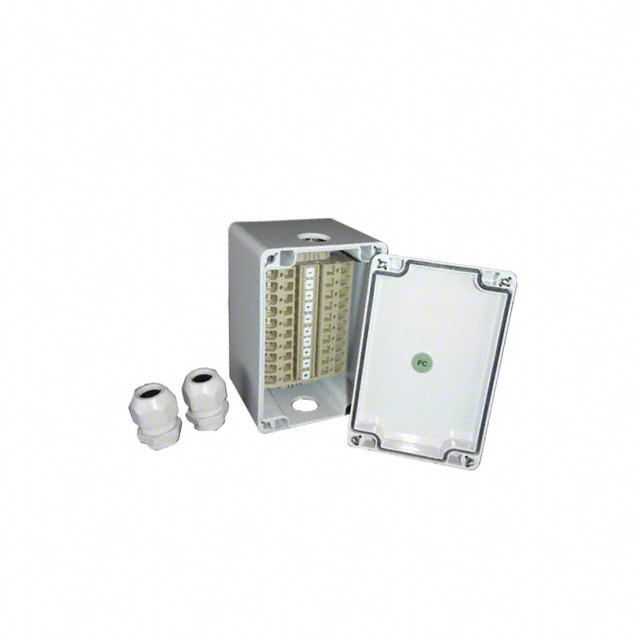

 American Electrical Inc. | Cover Included | 96 cm˛ | Junction Box | Sealed | 80 mm | 4.724 in | 120 mm | 3.15 in | 85 mm | 3.346 in | Gray | IP65 | Plastic Polycarbonate | 14.9 in˛ | 10 | |||

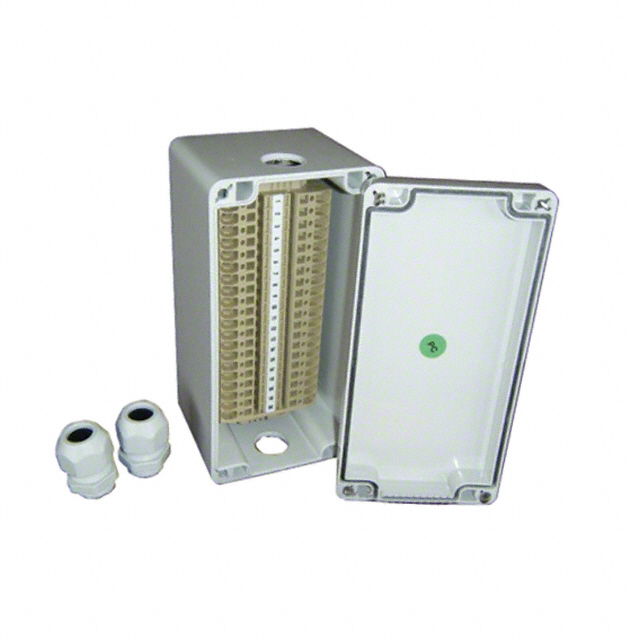

 American Electrical Inc. | Cover Included | Junction Box | Sealed Terminals - 20 | 80 mm | 6.299 " | 160 mm | 3.15 in | 85 mm | 3.346 in | Gray | IP65 | Plastic Polycarbonate | 19.8 in˛ | 128 cm˛ |
