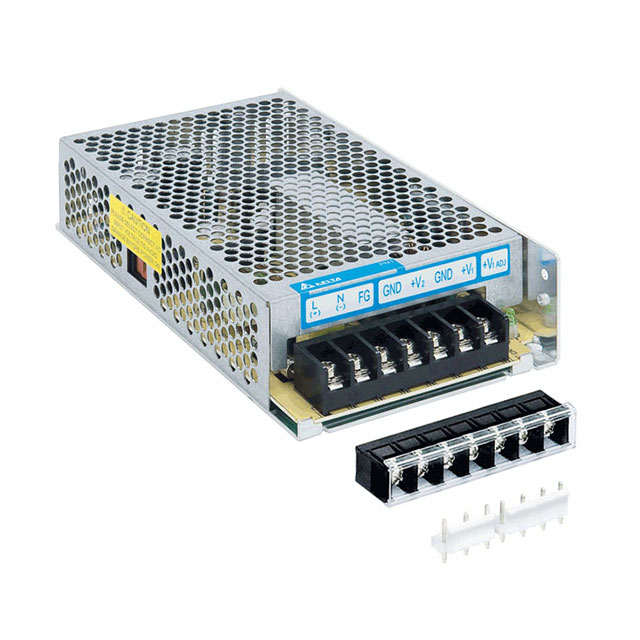

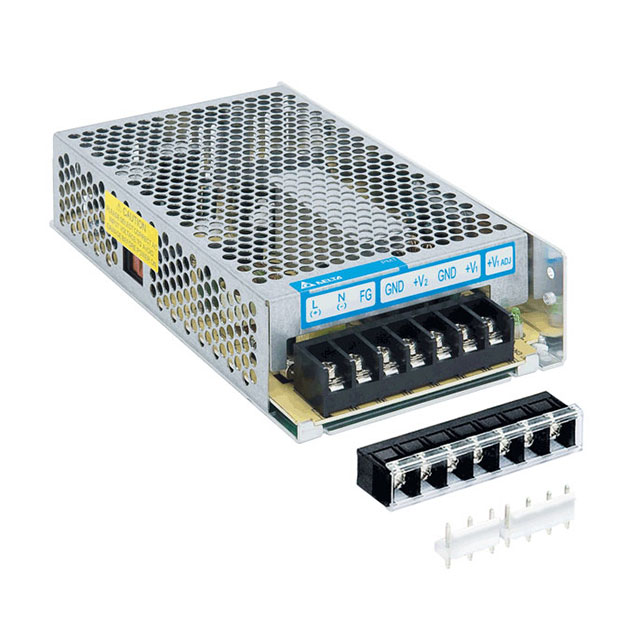

PML-D1 Series
Manufacturer: Delta Electronics
Beta
⌘K
AC/DC CONVERTER 12V 5V 100W
| Part | Current - Output 2 | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Current - Output 1 | Number of Outputs | Applications | Voltage - Isolation | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Output 2 | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 3 A | 12 V | 88 VAC 176 VAC | 132 VAC 264 VAC | 100 W | 7 A | 2 | ITE (Commercial) | 3000 V | CB CCC CE cURus TUV | 70 °C | -10 °C | Open Frame | 5 V | 38 mm | 1.5 in | 97 mm | 3.82 in | 178 mm | 7.01 in | Chassis Mount | Adjustable Output |
 Delta Electronics | 3 A | 12 V | 88 VAC 176 VAC | 132 VAC 264 VAC | 100 W | 7 A | 2 | ITE (Commercial) | 3000 V | CB CCC CE cURus TUV | 70 °C | -10 °C | Open Frame | 5 V | 38 mm | 1.5 in | 97 mm | 3.82 in | 178 mm | 7.01 in | Chassis Mount | Adjustable Output |
