PL105 Series

Catalog

TEM 40X40X3.1MM

Part	Type	Voltage - Max [Max]	Current - Max [Max]	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Number of Stages	Features	Delta Tmax @ Th	Resistance
Marlow Industries, Inc. PL105-7.5-40-01S	TEC (Thermoelectric Cooler)	21.2 V	7.6 A	105 W	40 mm	40 mm	3.1 mm	1	Lead Wires Sealed	60 °C	2.3 Ohms
Marlow Industries, Inc. PL105-7.5-40-01L	TEC (Thermoelectric Cooler)	21.2 V	7.6 A	105 W	40 mm	40 mm	3.1 mm	1	Lapped Lead Wires	60 °C	2.3 Ohms
Marlow Industries, Inc. PL105-7.5-40-01	TEC (Thermoelectric Cooler)	21.2 V	7.6 A	105 W	40 mm	40 mm	3.32 mm	1	Lead Wires	60 °C	2.3 Ohms

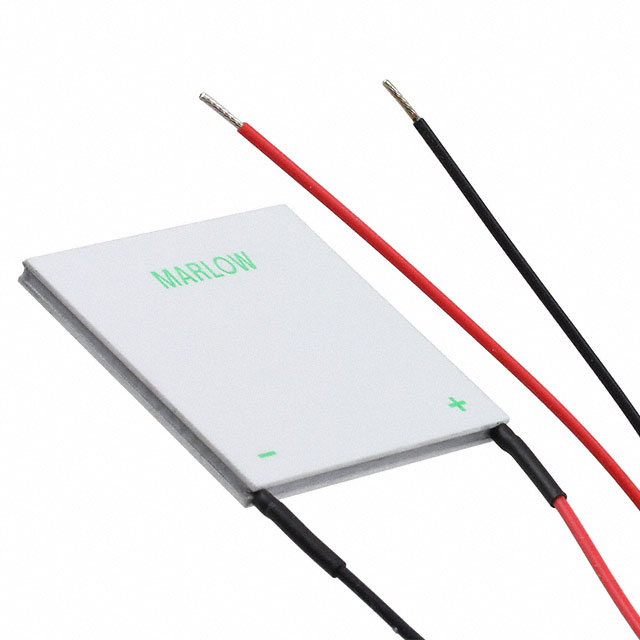

Marlow Industries, Inc. PL105-7.5-40-01LS	TEC (Thermoelectric Cooler)	21.2 V	7.6 A	105 W	40 mm	40 mm	3.1 mm	1	Lapped Lead Wires Sealed	60 °C	2.3 Ohms
