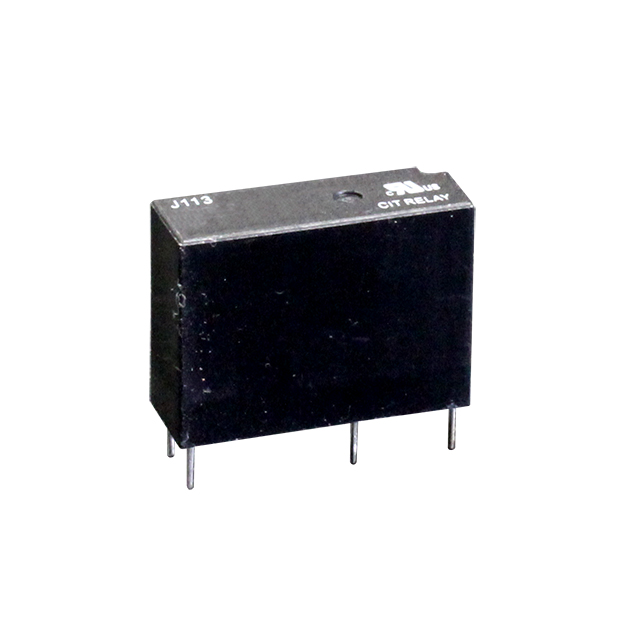

J1131AS5 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE SPST 5A 5V
| Part | Coil Resistance | Operate Time | Coil Current | Coil Voltage | Relay Type | Mounting Type | Contact Material | Load - Max Switching | Release Time | Contact Form | Switching Voltage [Max] | Must Operate Voltage | Termination Style | Coil Type | Seal Rating | Contact Rating (Current) | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 125 Ohms | 10 ms | 40 mA | 5 VDC | General Purpose | Through Hole | Silver Nickel (AgNi) | 150 W 1385 VA | 10 ms | SPST-NO (1 Form A) | 30 VDC 277 VAC | 3.75 VDC | PC Pin | Non Latching | Sealed - Fully | 5 A | 0.5 VDC | 85 °C | -40 C |
