090800 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 4POS 1.27MM

Part	Contact Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Connector Type	Insulation Material	Termination	Contact Finish - Post	Shrouding	Material Flammability Rating	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Number of Positions Loaded	Contact Type	Contact Shape	Mounting Type	Applications	Insulation Height [z]	Insulation Height [z]	Fastening Type	Number of Positions	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions
Molex 0908000004	Cartridge Brass	250 VDC	-40 °C	105 ░C	1.2 A	Header	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Tin	Shrouded - 2 Wall	UL94 V-0	Black	0.05 in	1.27 mm	0.134 in	3.4 mm	1	All	Male Blade	Rectangular	Through Hole Right Angle	Automotive General Purpose Industrial Medical	7 mm	0.276 in	Push-Pull	4	Board to Cable/Wire	118.1 µin	3 µm
Molex 0908003004	Cartridge Brass	250 VDC	-40 °C	105 ░C	1.2 A	Header	Polybutylene Terephthalate (PBT) Glass Filled	Solder		Shrouded - 2 Wall	UL94 V-0	Black	0.05 in	1.27 mm	0.134 in	3.4 mm	1	All	Male Blade	Rectangular	Through Hole Right Angle	Automotive General Purpose Industrial Medical	7 mm	0.276 in	Push-Pull	4	Board to Cable/Wire	0.76 Ám		30 Áin	Gold
Molex 0908000008	Cartridge Brass	250 VDC	-40 °C	105 ░C	1.2 A	Header	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Tin	Shrouded - 2 Wall	UL94 V-0	Black	0.05 in	1.27 mm	0.134 in	3.4 mm	1	All	Male Blade	Rectangular	Through Hole Right Angle	Automotive General Purpose Industrial Medical	7 mm	0.276 in	Push-Pull	8	Board to Cable/Wire	118.1 µin	3 µm
Molex 0908000006	Cartridge Brass	250 VDC	-40 °C	105 ░C	1.2 A	Header	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Tin	Shrouded - 2 Wall	UL94 V-0	Black	0.05 in	1.27 mm	0.134 in	3.4 mm	1	All	Male Blade	Rectangular	Through Hole Right Angle	Automotive General Purpose Industrial Medical	7 mm	0.276 in	Push-Pull	6	Board to Cable/Wire	118.1 µin	3 µm
Molex 0908000016	Cartridge Brass	250 VDC	-40 °C	105 ░C	1.2 A	Header	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Tin	Shrouded - 2 Wall	UL94 V-0	Black	0.05 in	1.27 mm	0.134 in	3.4 mm	1	All	Male Blade	Rectangular	Through Hole Right Angle	Automotive General Purpose Industrial Medical	7 mm	0.276 in	Push-Pull		Board to Cable/Wire	118.1 µin	3 µm			16
Molex 0908000020	Cartridge Brass	250 VDC	-40 °C	105 ░C	1.2 A	Header	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Tin	Shrouded - 2 Wall	UL94 V-0	Black	0.05 in	1.27 mm	0.134 in	3.4 mm	1	All	Male Blade	Rectangular	Through Hole Right Angle	Automotive General Purpose Industrial Medical	7 mm	0.276 in	Push-Pull	20	Board to Cable/Wire	118.1 µin	3 µm
Molex 0908000018	Cartridge Brass	250 VDC	-40 °C	105 ░C	1.2 A	Header	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Tin	Shrouded - 2 Wall	UL94 V-0	Black	0.05 in	1.27 mm	0.134 in	3.4 mm	1	All	Male Blade	Rectangular	Through Hole Right Angle	Automotive General Purpose Industrial Medical	7 mm	0.276 in	Push-Pull	18	Board to Cable/Wire	118.1 µin	3 µm
Molex 0908000012	Cartridge Brass	250 VDC	-40 °C	105 ░C	1.2 A	Header	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Tin	Shrouded - 2 Wall	UL94 V-0	Black	0.05 in	1.27 mm	0.134 in	3.4 mm	1	All	Male Blade	Rectangular	Through Hole Right Angle	Automotive General Purpose Industrial Medical	7 mm	0.276 in	Push-Pull	12	Board to Cable/Wire	118.1 µin	3 µm
Molex 0908000010	Cartridge Brass	250 VDC	-40 °C	105 ░C	1.2 A	Header	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Tin	Shrouded - 2 Wall	UL94 V-0	Black	0.05 in	1.27 mm	0.134 in	3.4 mm	1	All	Male Blade	Rectangular	Through Hole Right Angle	Automotive General Purpose Industrial Medical	7 mm	0.276 in	Push-Pull	10	Board to Cable/Wire	118.1 µin	3 µm

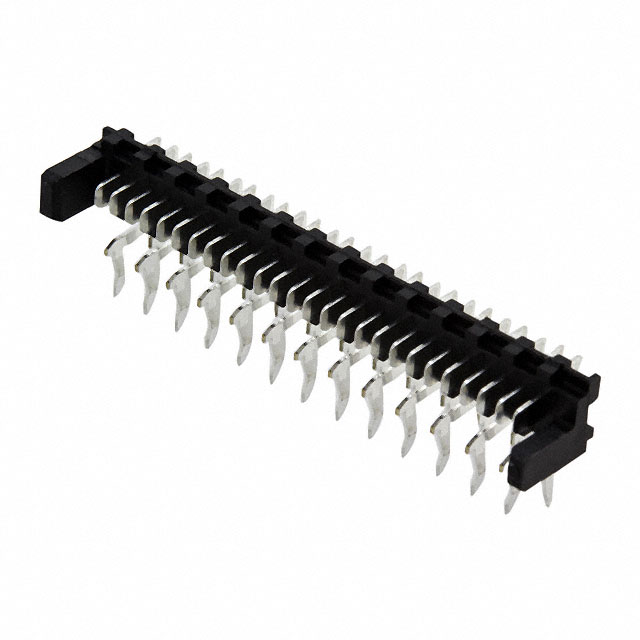

Molex 0908000026	Cartridge Brass	250 VDC	-40 °C	105 ░C	1.2 A	Header	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Tin	Shrouded - 2 Wall	UL94 V-0	Black	0.05 in	1.27 mm	0.134 in	3.4 mm	1	All	Male Blade	Rectangular	Through Hole Right Angle	Automotive General Purpose Industrial Medical	7 mm	0.276 in	Push-Pull	26	Board to Cable/Wire	118.1 µin	3 µm
