4312N Series

Catalog

DC FAN AXIAL BALL BEARING 12V 97.7CFM 43DB 119 X 119 X 32MM

Part	Material - Blade	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Air Flow	Air Flow	Width [y]	Approval Agency	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Bearing Type	Termination	Power (Watts)	Noise	RPM	Voltage - Rated
ebm-papst Inc. 4312NN	Polyamide (PA) Nylon Fiberglass Reinforced	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	6 VDC	15 V	72500 Hrs	0.553 lb	250.84 g	-4 °F	167 °F	Tubeaxial	112 CFM	3.14 mł/min	32 mm	CE CSA UL VDE	Square	119 mm	119 mm	Ball	2 Wire Leads	4.3 W	43 dB	2700 RPM	12 VDC
ebm-papst Inc. 4312NL	Polyamide (PA) Nylon Fiberglass Reinforced	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	6 VDC	15 V	95000 Hrs	0.553 lb	250.84 g	-4 °F	167 °F	Tubeaxial	58.8 CFM	1.64 m³/min	32 mm	CE CSA UL VDE	Square	119 mm	119 mm	Ball	2 Wire Leads	0.9 W	25 dB(A)	1450 RPM	12 VDC

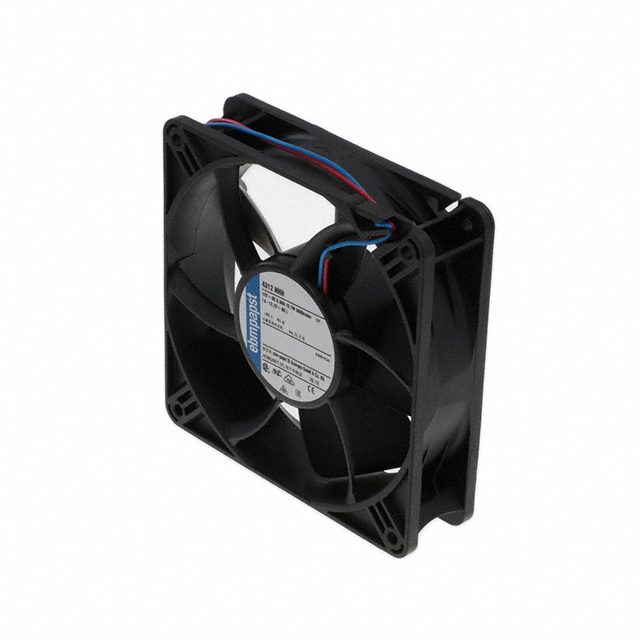

ebm-papst Inc. 4312NHH	Polyamide (PA) Nylon Fiberglass Reinforced	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	6 VDC	14.4 VDC	52500 Hrs	0.553 lb	250.84 g	-20 ░C	70 °C	Tubeaxial	147 CFM	4.12 m³/min	32 mm	CE CSA UL VDE	Square	119 mm	119 mm	Ball	2 Wire Leads	10.7 W	51 dB(A)	3600 RPM	12 VDC
ebm-papst Inc. 4312NH3	Polyamide (PA) Nylon Fiberglass Reinforced	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	7 V	13.2 VDC	45000 Hrs	0.553 lb	250.84 g	-4 °F	167 °F	Tubeaxial	167 CFM	4.68 m³/min	32 mm		Square	119 mm	119 mm	Ball	2 Wire Leads	12 W	55 dB(A)	4050 RPM	12 VDC
ebm-papst Inc. 4312NH	Polyamide (PA) Nylon Fiberglass Reinforced	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	6 VDC	15 V	62500 Hrs	0.553 lb	250.84 g	-4 °F	167 °F	Tubeaxial	129.3 CFM	3.62 m³/min	32 mm	CE CSA UL VDE	Square	119 mm	119 mm	Ball	2 Wire Leads	6.5 W	47 dB	3150 RPM	12 VDC
