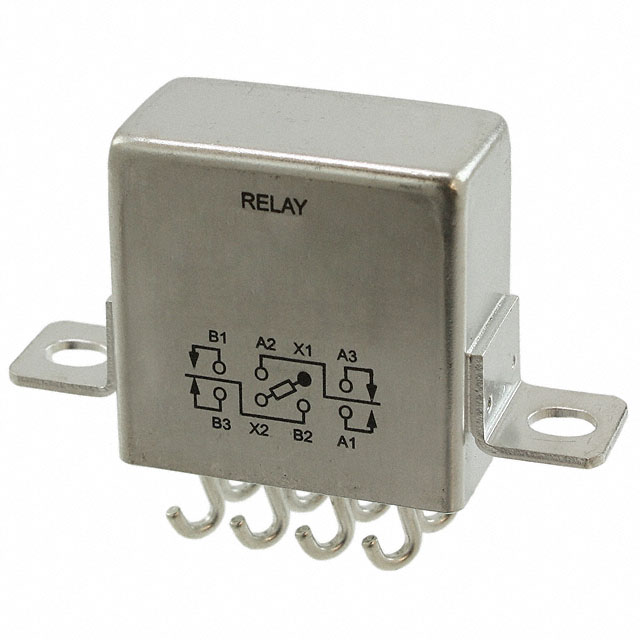

B07D69 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
B07D692BB2-0069 = M5757/23-006
| Part | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Termination Style | Release Time | Contact Rating (Current) | Seal Rating | Mounting Type | Coil Current | Contact Form | Coil Resistance | Relay Type | Coil Voltage | Must Operate Voltage | Operate Time | Contact Material | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | Non Latching | 125 °C | -65 ░C | 0.9 VDC | Solder Hook | 10 ms | 10 A | Sealed - Hermetically | Chassis Mount | 160 mA | DPDT (2 Form C) | 75 Ohms | General Purpose | 12 VDC | 6.5 VDC | 10 ms | Silver Cadmium Oxide (AgCdO) | |
 TE Connectivity Aerospace, Defense and Marine | Non Latching | 125 °C | -65 ░C | 2.3 VDC | Solder Hook | 15 ms | 10 A | Sealed - Hermetically | Chassis Mount | 88.3 mA | DPDT (2 Form C) | 300 Ohms | General Purpose | 26.5 VDC | 13 VDC | 15 ms | Silver Cadmium Oxide (AgCdO) | Military |
