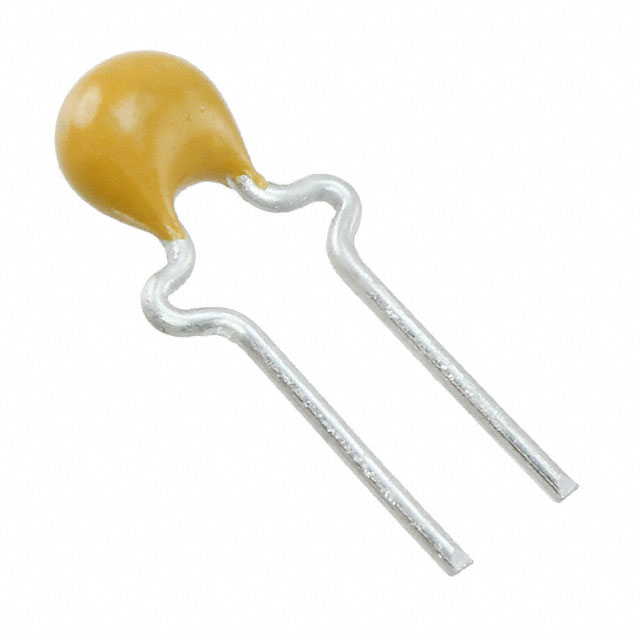

C316C Series

Manufacturer: KEMET

Catalog

Catalog

CAP CER 820PF 25V C0G/NP0 RADIAL

...

Part	Lead Spacing	Lead Spacing	Applications	Temperature Coefficient	Lead Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max]	Capacitance	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Features	Tolerance
KEMET C316C821J3G5TA	2.54 mm	0.1 in	General Purpose	C0G NP0	Formed Leads - Kinked	3.81 mm	0.1 in	0.15 "	2.54 mm	5.84 mm	0.23 in	820 pF	25 VDC	-55 C	125 °C	Through Hole	Radial	Low ESL	5 %
KEMET C316C399CAG5TA7301	2.54 mm	0.1 in	General Purpose	C0G NP0	Formed Leads - Kinked	3.81 mm	0.1 in	0.15 "	2.54 mm	5.84 mm	0.23 in	3.9 pF	250 V	-55 C	125 °C	Through Hole	Radial	Low ESL	0.25 pF
KEMET C316C510F3G5TA7301	2.54 mm	0.1 in	General Purpose	C0G NP0	Formed Leads - Kinked	3.81 mm	0.1 in	0.15 "	2.54 mm	5.84 mm	0.23 in	51 pF	25 VDC	-55 C	125 °C	Through Hole	Radial	Low ESL	1 %
KEMET C316C391GAG5TA7301	2.54 mm	0.1 in	General Purpose	C0G NP0	Formed Leads - Kinked	3.81 mm	0.1 in	0.15 "	2.54 mm	5.84 mm	0.23 in	390 pF	250 V	-55 C	125 °C	Through Hole	Radial	Low ESL	2 %
KEMET C316C202J3G5TA	2.54 mm	0.1 in	General Purpose	C0G NP0	Formed Leads - Kinked	3.81 mm	0.1 in	0.15 "	2.54 mm	5.84 mm	0.23 in	0.002 µF	25 VDC	-55 C	125 °C	Through Hole	Radial	Low ESL	5 %
KEMET C316C139B3G5TA7301	2.54 mm	0.1 in	General Purpose	C0G NP0	Formed Leads - Kinked	3.81 mm	0.1 in	0.15 "	2.54 mm	5.84 mm	0.23 in	1.3 pF	25 VDC	-55 C	125 °C	Through Hole	Radial	Low ESL	0.1 pF
KEMET C316C392J1G5TA7301	2.54 mm	0.1 in	General Purpose	C0G NP0	Formed Leads - Kinked	3.81 mm	0.1 in	0.15 "	2.54 mm	5.84 mm	0.23 in	3900 pF	100 V	-55 C	125 °C	Through Hole	Radial	Low ESL	5 %
KEMET C316C122F2G5TA	2.54 mm	0.1 in	General Purpose	C0G NP0	Formed Leads - Kinked	3.81 mm	0.1 in	0.15 "	2.54 mm	5.84 mm	0.23 in	1200 pF	200 VDC	-55 C	125 °C	Through Hole	Radial	Low ESL	1 %
KEMET C316C182F2G5TA	2.54 mm	0.1 in	General Purpose	C0G NP0	Formed Leads - Kinked	3.81 mm	0.1 in	0.15 "	2.54 mm	5.84 mm	0.23 in	1800 pF	200 VDC	-55 C	125 °C	Through Hole	Radial	Low ESL	1 %
KEMET C316C471F3G5TA	2.54 mm	0.1 in	General Purpose	C0G NP0	Formed Leads - Kinked	3.81 mm	0.1 in	0.15 "	2.54 mm	5.84 mm	0.23 in	470 pF	25 VDC	-55 C	125 °C	Through Hole	Radial	Low ESL	1 %
