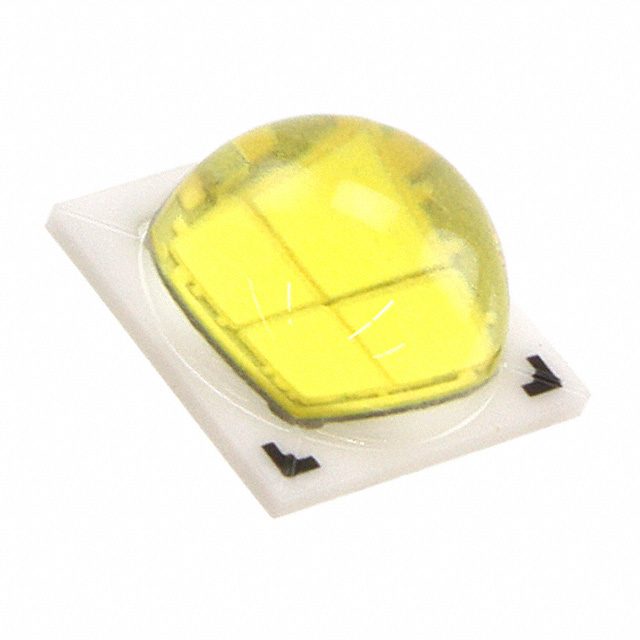

LXR8 Series

Manufacturer: Lumileds

Catalog

LED UNI-COLOR WHITE 920LM 5000K CHIP LED 3-PIN SMD T/R

Part	Thermal Resistance of Package	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Color	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Viewing Angle	CCT (K)	Current - Max [Max]	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Flux @ 85°C, Current - Test	Current - Test
Lumileds LXR8-RW50	1.25 °C/W	5.6 V	0.276 "	0.276 in	7 mm	7 mm	Cool White	2828 (7070 Metric)	0.152 in	3.87 mm	Surface Mount	120 °	5000 K	2.4 A	80	117 lm/W	920 lm
Lumileds LXR8-QW27	1.25 °C/W	2.8 V	0.276 "	0.276 in	7 mm	7 mm	Warm White	2828 (7070 Metric)	0.152 in	3.87 mm	Surface Mount	120 °	2700 K	4.8 A	80	102 lm/W	800 lm	2.8 A
Lumileds LXR8-QW50	1.25 °C/W	2.8 V	0.276 "	0.276 in	7 mm	7 mm	Cool White	2828 (7070 Metric)	0.152 in	3.87 mm	Surface Mount	120 °	5000 K	4.8 A	80	117 lm/W	920 lm	2.8 A
Lumileds LXR8-SW50	1.25 °C/W	11.2 V	0.276 "	0.276 in	7 mm	7 mm	Cool White	2828 (7070 Metric)	0.152 in	3.87 mm	Surface Mount	120 °	5000 K	1.2 A	80	117 lm/W	920 lm
Lumileds LXR8-SW40	1.25 °C/W	11.2 V	0.276 "	0.276 in	7 mm	7 mm	Neutral White	2828 (7070 Metric)	0.152 in	3.87 mm	Surface Mount	120 °	4000 K	1.2 A	80	115 lm/W	905 lm
Lumileds LXR8-QW35	1.25 °C/W	2.8 V	0.276 "	0.276 in	7 mm	7 mm	Warm White	2828 (7070 Metric)	0.152 in	3.87 mm	Surface Mount	120 °	3000 K	4.8 A	80	111 lm/W	870 lm	2.8 A
