560023 Series

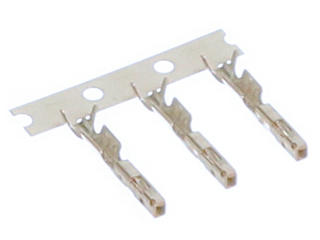

CTX50 Receptacle Terminal, Unsealed, Tin Plating, M-Grip, B-Wind, Right Payoff

Manufacturer: Molex

Catalog

CTX50 Receptacle Terminal, Unsealed, Tin Plating, M-Grip, B-Wind, Right Payoff

Part	Pin or Socket	Type	Contact Termination	Wire Gauge	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]

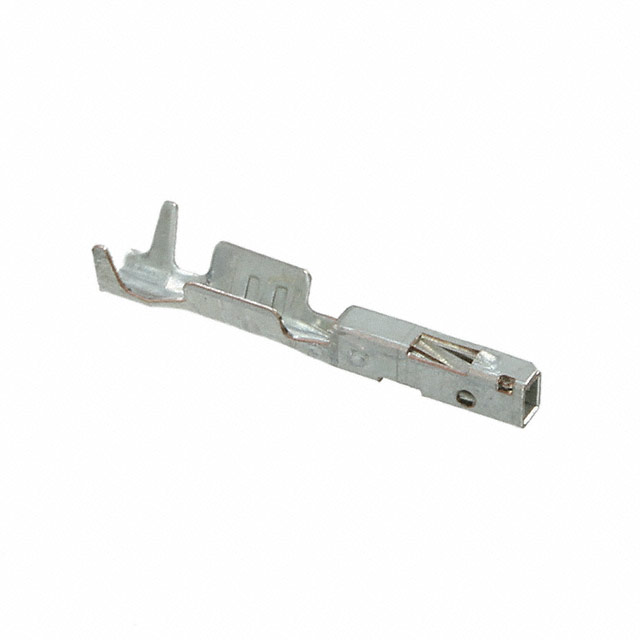

Molex 5600230448	Socket	Stamped	Crimp	22 AWG	Tin	19.7 µin	0.5 µm
Molex 5600230850	Socket	Power	Crimp		Gold
Molex 5600230745	Socket	Power	Crimp		Tin

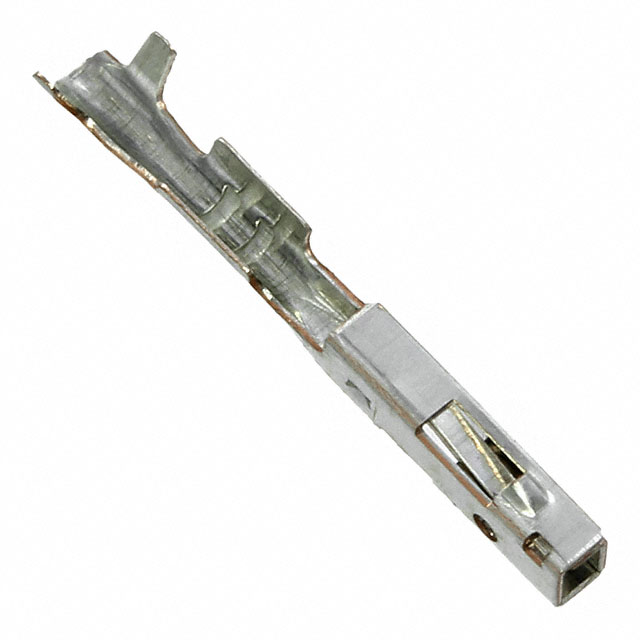

Molex 5600230422	Socket	Stamped	Crimp		Tin	19.7 µin	0.5 µm	26 AWG	30 AWG
Molex 5600230545	Socket	Stamped	Crimp	26 AWG	Gold
Molex 5600230450	Socket	Stamped	Crimp	22 AWG	Tin
Molex 5600230748	Socket	Power	Crimp		Tin
Molex 5600230425
Molex 5600230544	Socket	Stamped	Crimp	26 AWG	Gold
Molex 5600230445	Socket	Stamped	Crimp		Tin			26 AWG	30 AWG

CTX50 Receptacle Terminal, Unsealed, Tin Plating, M-Grip, B-Wind, Right Payoff
