KMT033 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K

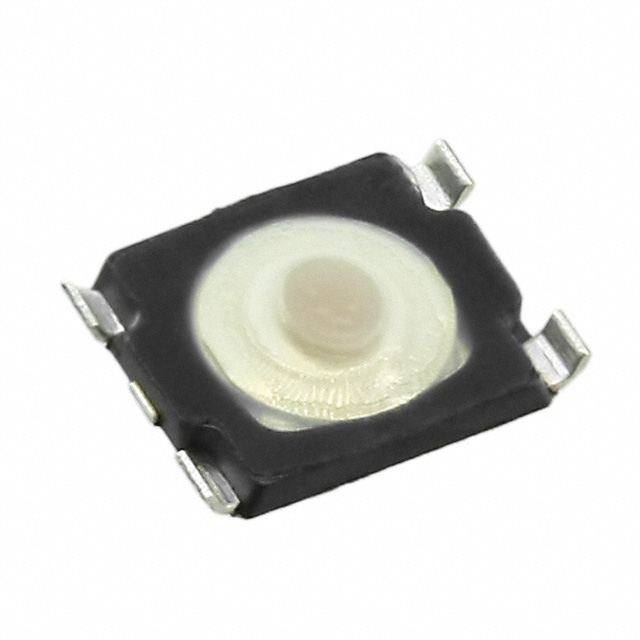

SWITCH TACTILE SPST-NO 0.01A 32V
| Part | Actuator Height off PCB, Vertical [z] | Switch Travel | Switch Function | Contact Rating @ Voltage | Illumination | Circuit | Actuator Type | Termination Style | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Orientation | Features | Operating Force | Ingress Protection | Mounting Type | Outline [y] | Outline [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 0.65 mm | 0.15 mm | Off-Mom | 0.01 A 32 VDC | Non-Illuminated | SPST-NO | Standard | J Lead | 300000 Cycles | 125 °C | -40 °C | Top Actuated | Tactile Feedback | 340 gf | IP68 - Dust Tight Waterproof | Surface Mount | 2.6 mm | 3 mm |
