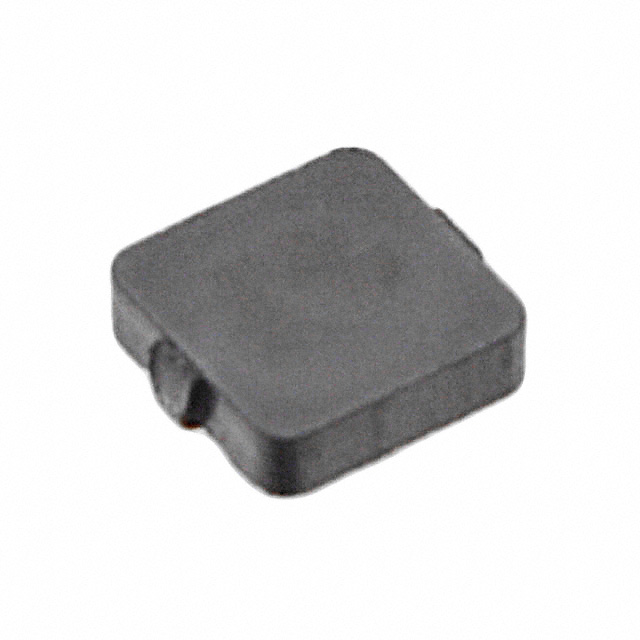

SRP4012 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 470NH 6.5A 20 MOHM SMD
| Part | Inductance Frequency - Test | Tolerance | Mounting Type | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [y] | Type | Package / Case | Shielding | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) [Max] | Material - Core | Inductance | Operating Temperature [Min] | Operating Temperature [Max] | Current - Saturation (Isat) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 100 kHz | 20 % | Surface Mount | 6.5 A | 0.185 in 4.7 mm | 0.157 " 4 mm | Drum Core Wirewound | Nonstandard | Shielded | 1.2 mm | 0.047 " | 20 mOhm | Iron | 470 nH | -55 C | 125 °C | 9 A |
Bourns Inc. | 100 kHz | 20 % | Surface Mount | 3 A | 0.185 in 4.7 mm | 0.157 " 4 mm | Drum Core Wirewound | Nonstandard | Shielded | 1.2 mm | 0.047 " | 50 mOhm | Iron | 1.5 µH | -55 C | 125 °C | 5.5 A |
