891801 Series

Catalog

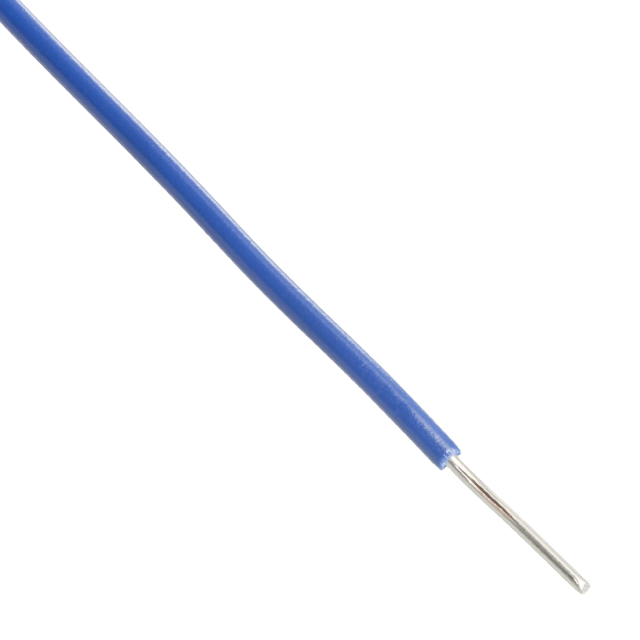

HOOK-UP SOLID 18AWG BLU 5000'

Part	Conductor Strand	Conductor Material	Jacket Color	Voltage	Jacket (Insulation) Material	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
ALPHA WIRE 891801 BL013	Solid	Copper Tinned	Blue	300 VDC	Poly-Vinyl Chloride (PVC)	18 AWG	0.41 mm	0.016 in	UL Style 1007/1569	-20 ░C	105 ░C	Hook-Up	0.072 in	1.83 mm
ALPHA WIRE 891801 BR013	Solid	Copper Tinned	Brown	300 VDC	Poly-Vinyl Chloride (PVC)	18 AWG	0.41 mm	0.016 in	UL Style 1007/1569	-20 ░C	105 ░C	Hook-Up	0.072 in	1.83 mm
ALPHA WIRE 891801 BK013	Solid	Copper Tinned	Black	300 VDC	Poly-Vinyl Chloride (PVC)	18 AWG	0.41 mm	0.016 in	UL Style 1007/1569	-20 ░C	105 ░C	Hook-Up	0.072 in	1.83 mm

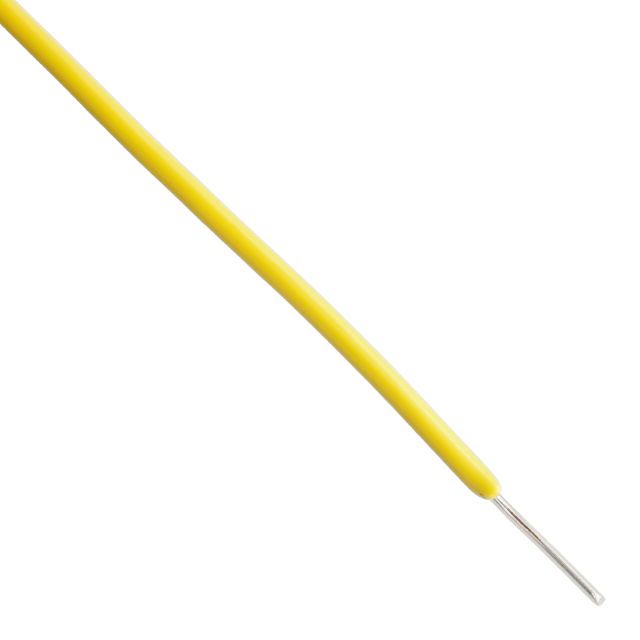

ALPHA WIRE 891801 YL013	Solid	Copper Tinned	Yellow	300 VDC	Poly-Vinyl Chloride (PVC)	18 AWG	0.41 mm	0.016 in	UL Style 1007/1569	-20 ░C	105 ░C	Hook-Up	0.072 in	1.83 mm
