PR20C05HB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

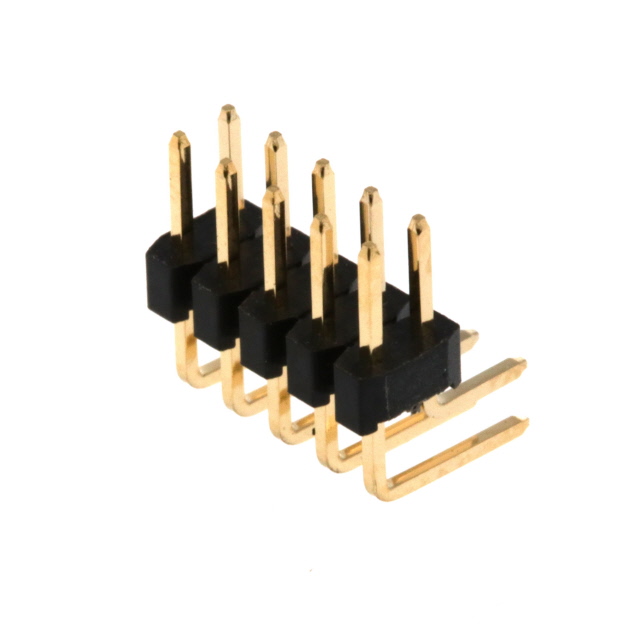

PIN HEADER, THR, DUAL ROW, 2.00
| Part | Contact Length - Mating | Contact Length - Mating | Pitch - Mating | Pitch - Mating | Shrouding | Insulation Color | Contact Finish Thickness - Mating | Number of Positions | Number of Rows [custom] | Mounting Type | Termination | Connector Type | Number of Positions Loaded | Contact Finish - Mating | Contact Material | Fastening Type | Contact Type | Insulation Material | Contact Length - Post [custom] | Contact Length - Post | Insulation Height [z] | Insulation Height [z] | Row Spacing - Mating | Row Spacing - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | 0.154 in | 3.91 mm | 0.079 " | 2 mm | Unshrouded | Black | Flash | 10 | 2 | Right Angle Through Hole | Solder | Header | All | Gold | Copper Zinc | Push-Pull | Male Pin | Polyethylene | 0.11 in | 2.79 mm | 2 mm | 0.079 in | 2 mm | 0.079 in | -55 C | 105 ░C | Square |
