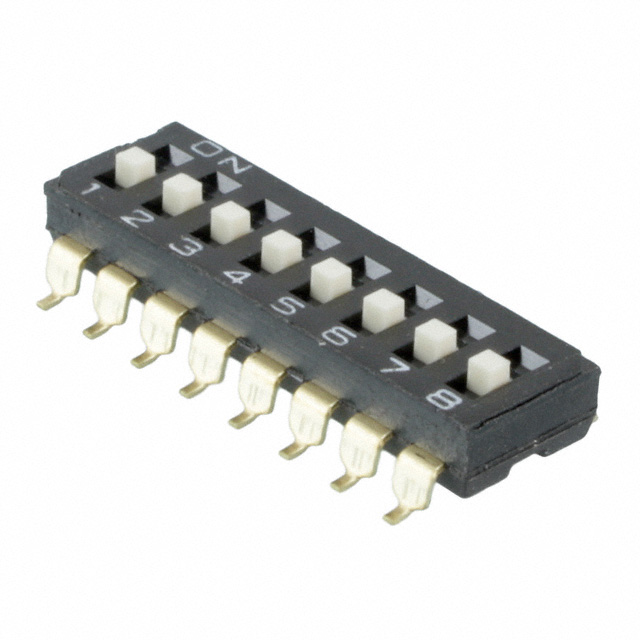

A6S-8102 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Contact Finish | Washable | Length [x] | Length [x] | Actuator Type | Voltage Rating | Electrical Life | Actuator Level | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Features | Pitch | Pitch | Current Rating (Amps) | Circuit | Height Above Board [z] | Height Above Board [z] | Mounting Type | Termination Style | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Gold | 0.837 in | 21.26 mm | Slide (Standard) | 24 VDC | 1000 Cycles | Flush Recessed | 1000 Cycles | -20 ░C | 70 °C | Tape Seal | 2.54 mm | 0.1 " | 25 mA | SPST | 3.7 mm | 0.146 in | Surface Mount | Gull Wing | 8 | |
 Omron Electronics Inc-EMC Div | Gold | 0.837 in | 21.26 mm | Slide (Standard) | 24 VDC | 1000 Cycles | Flush Recessed | 1000 Cycles | -20 ░C | 70 °C | Tape Seal | 2.54 mm | 0.1 " | 25 mA | SPST | 3.7 mm | 0.146 in | Surface Mount | Gull Wing | 8 |
