MXL7704 Series

Catalog

IC REG DSP/FPGA MICRO 5OUT 32QFN

Part	Number of Outputs	Package Width	Package Name	Package Length	Mounting Type	Voltage - Output	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Applications	Package / Case	Voltage - Output	Utilized IC / Part	Voltage - Output (1)	Voltage - Output (3)	Voltage - Output (2)	Voltage - Output (5)	Voltage - Output (4)	Contents	Regulator Topology	Main Purpose	Current - Output	Maximum Output Current	Minimum Output Current	Current - Output (1)	Current - Output (4)	Current - Output (3)	Current - Output (5)	Current - Output (2)	Output Type	Non-Isolated Output Count	Total Output Count	Frequency - Switching	Board Type	Supplied Contents

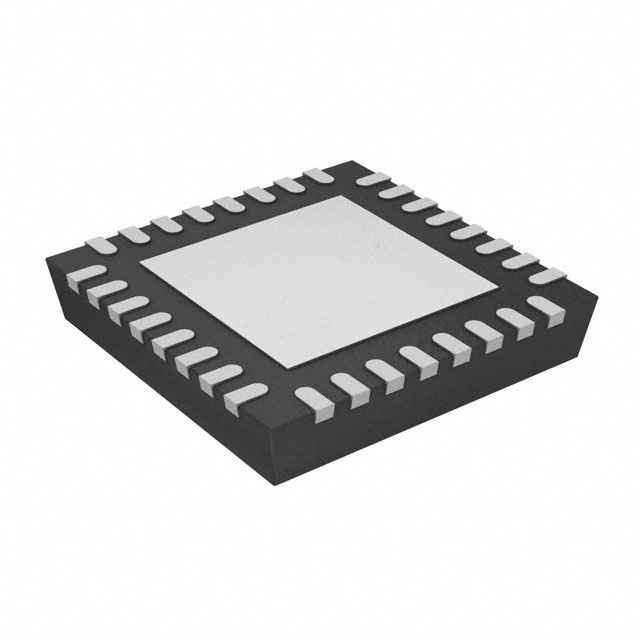

MaxLinear, Inc. MXL7704-XQB-T	5	5 mm	32-QFN	5 mm	Surface Mount	3.3 V	125 °C	-40 °C	5.5 V	4 V	DSPs FPGA Microprocessor	32-VFQFN Exposed Pad
MaxLinear, Inc. MXL7704-BQB-T	5	5 mm	32-QFN	5 mm	Surface Mount		125 °C	-40 °C	5.5 V	4 V	DSPs FPGA Microprocessor	32-VFQFN Exposed Pad	Multiple
MaxLinear, Inc. MXL7704-AQB-R	5	5 mm	32-QFN	5 mm	Surface Mount	3.3 V	125 °C	-40 °C	5.5 V	4 V	DSPs FPGA Microprocessor	32-VFQFN Exposed Pad
MaxLinear, Inc. MXL7704-PQB-R	4	5 mm	32-QFN	5 mm	Surface Mount		125 °C	-40 °C	5.5 V	4 V	DSPs FPGA Microprocessor	32-VFQFN Exposed Pad	Multiple

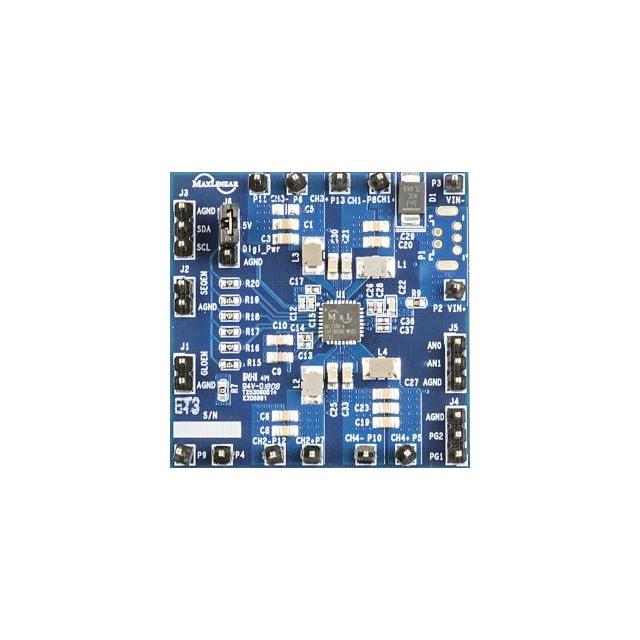

MaxLinear, Inc. MXL7704-A-EVB									5.5 V	4 V				MxL7704	1.2 V	1.8 V	1.35 V	3.3 V	3.3 V	Board	Buck	DC/DC Step Down with LDO	1.5A 100mA 2.5A 4A	4 A	100 mA	4 A	1.5 A	1.5 A	100 mA	2.5 A	Non-Isolated	5	5	1.5 MHz
MaxLinear, Inc. MXL7704-RQB-R	4	5 mm	32-QFN	5 mm	Surface Mount		125 °C	-40 °C	5.5 V	4 V	DSPs FPGA Microprocessor	32-VFQFN Exposed Pad	Multiple
MaxLinear, Inc. MXL7704-AQB-T	5	5 mm	32-QFN	5 mm	Surface Mount	3.3 V	125 °C	-40 °C	5.5 V	4 V	DSPs FPGA Microprocessor	32-VFQFN Exposed Pad
MaxLinear, Inc. MXL7704-B-EVB1									5.5 V	4 V				MxL7704	1.2 V	1.8 V	1.35 V	3.3 V	3.3 V	Board	Buck	DC/DC Step Down with LDO	1.5A 100mA 2.5A 4A	4 A	100 mA	4 A	1.5 A	1.5 A	100 mA	2.5 A	Non-Isolated	5	5		Fully Populated	Board(s)
