87000 Series Series

Overtravel Pushbutton Switches

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Overtravel Pushbutton Switches

Part	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Termination Style	Features	Voltage Rating - DC	Color - Actuator/Cap	Actuator Marking	Type	Voltage Rating - AC	Actuator Type	Panel Cutout Dimensions [diameter]	Mounting Type	Electrical Life	Current Rating (Amps)

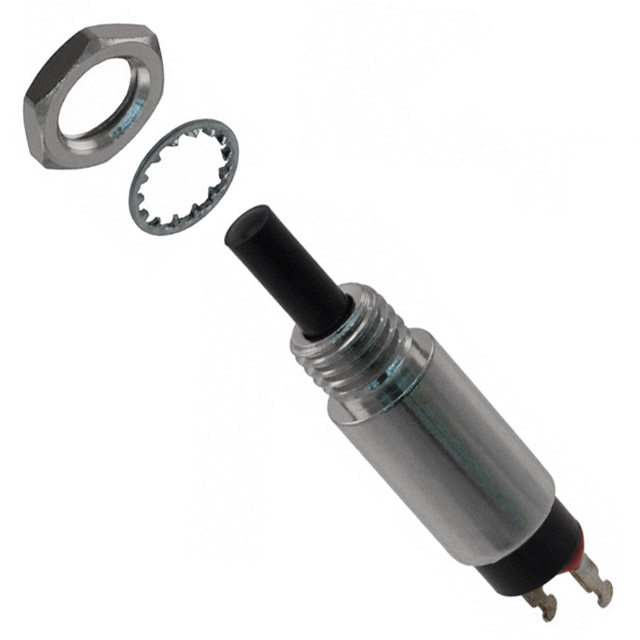

Littelfuse/Commercial Vehicle Products 8732S1HZQE	SPST-NO	65 °C	-30 ░C	Off-Mom	Solder Lug	Overtravel	28 V	Black	No Marking	Standard	125 V	Round Plunger	8.08 mm	Panel Mount Rear	100000 Cycles

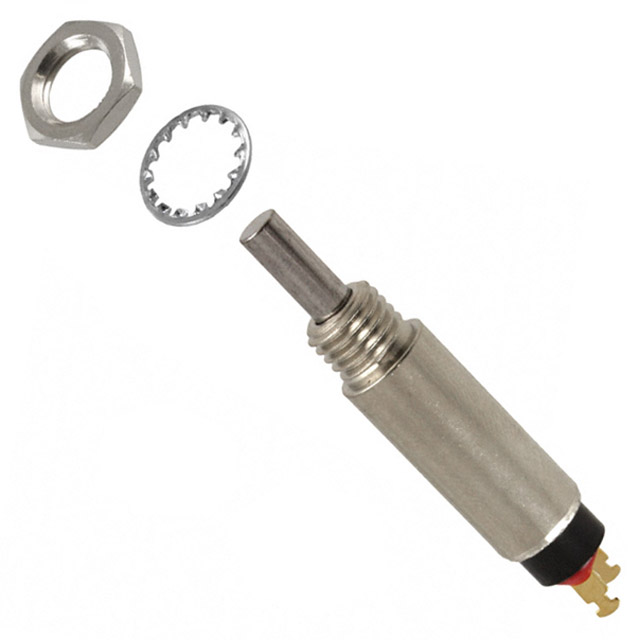

Littelfuse/Commercial Vehicle Products 8731SHZBE	SPST-NO	65 °C	-30 ░C	Off-Mom	Solder Lug	Overtravel	20 V	Silver	No Marking	Standard	20 V	Round Plunger	8.08 mm	Panel Mount Rear	100000 Cycles	0.4 VA

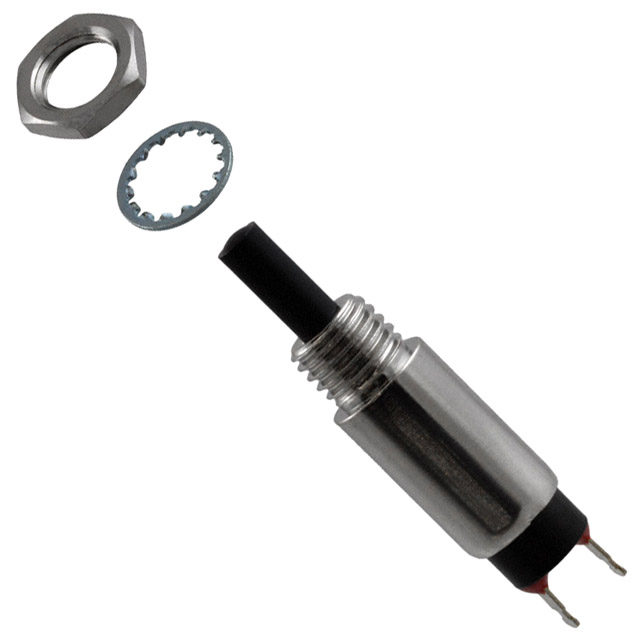

Littelfuse/Commercial Vehicle Products 8732S1HZBE	SPST-NO	65 °C	-30 ░C	Off-Mom	Solder Lug	Overtravel	20 V	Black	No Marking	Standard	20 V	Round Plunger	8.08 mm	Panel Mount Rear	100000 Cycles	0.4 VA

Catalog

Overtravel Pushbutton Switches

Key Features

• Extended pre-travel or over-travel

• Long electrical life - 100K cycles

• Heavy-duty brass plunger

Description

Designers in the medical test equipment and telecommunications industries turn to C&K’s 8700 series of overtravel pushbutton switches when engineering their latest product applications. With a long electrical lifecycle of 100k cycles, a heavy-duty brass plunger and extended pre-travel or overtravel options, the 8700 series give designers the highly-responsive, long-lasting switches they need to succeed.
