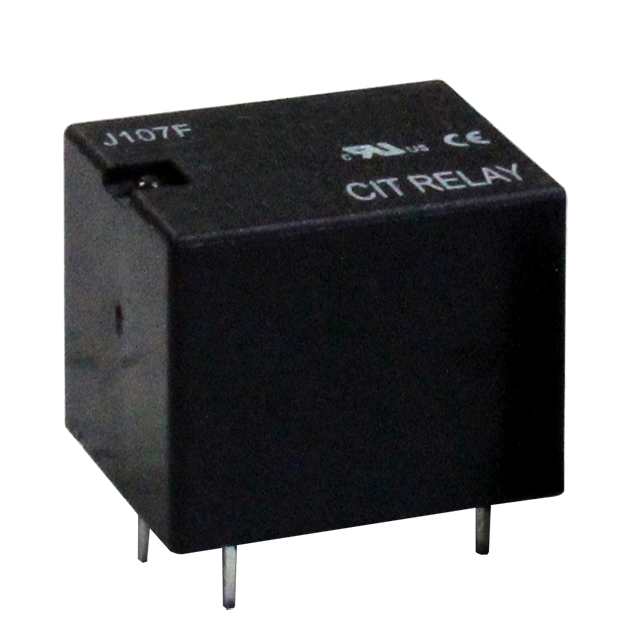

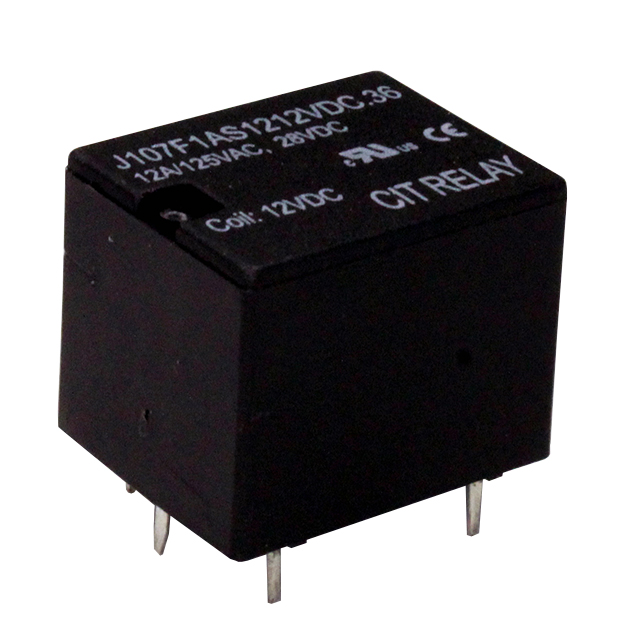

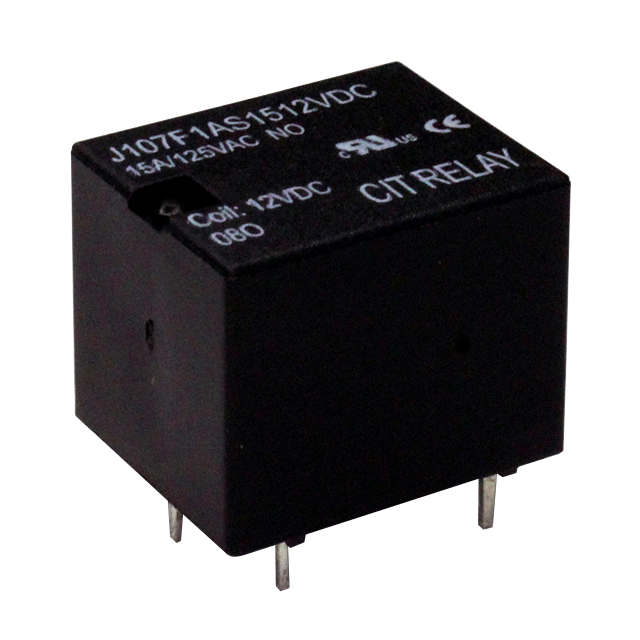

J107F1AS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE SPST 12A 3V
| Part | Coil Resistance | Must Operate Voltage | Seal Rating | Must Release Voltage | Relay Type | Contact Material | Contact Rating (Current) | Mounting Type | Contact Form | Approval Agency | Coil Type | Coil Current | Switching Voltage [Max] | Release Time | Coil Insulation | Termination Style | Operate Time | Operating Temperature [Min] | Operating Temperature [Max] | Load - Max Switching | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 11 Ohms | 2.25 VDC | Sealed - Fully | 0.3 VDC | General Purpose | Silver Tin Oxide (AgSnO) | 12 A | Through Hole | SPST-NO (1 Form A) | cURus TUV | Non Latching | 272.7 mA | 110 VDC 380 VAC | 5 ms | Class F | PC Pin | 10 ms | -55 C | 125 °C | 1320 W 4560 VA | |
CIT Relay and Switch | 2.88 kOhms | 36 VDC | Sealed - Fully | 4.8 VDC | General Purpose | Silver Tin Oxide (AgSnO) | 15 A | Through Hole | SPST-NO (1 Form A) | cURus TUV | Non Latching | 16.7 mA | 110 VDC 380 VAC | 5 ms | Class F | PC Pin | 10 ms | -55 C | 125 °C | 1650 W 5700 VA | 48 VDC |
CIT Relay and Switch | 11 Ohms | 2.25 VDC | Sealed - Fully | 0.3 VDC | General Purpose | Silver Tin Oxide (AgSnO) | 15 A | Through Hole | SPST-NO (1 Form A) | cURus TUV | Non Latching | 272.7 mA | 110 VDC 380 VAC | 5 ms | Class F | PC Pin | 10 ms | -55 C | 125 °C | 1650 W 5700 VA | |
CIT Relay and Switch | 180 Ohms | 6.75 VDC | Sealed - Fully | 0.9 VDC | General Purpose | Silver Tin Oxide (AgSnO) | 20 A | Through Hole | SPST-NO (1 Form A) | cURus TUV | Non Latching | 50 mA | 110 VDC 380 VAC | 5 ms | Class F | PC Pin | 10 ms | -55 C | 125 °C | 2200 W 7600 VA | 9 VDC |
CIT Relay and Switch | 6.4 kOhms | 36 VDC | Sealed - Fully | 4.8 VDC | General Purpose | Silver Tin Oxide (AgSnO) | 12 A | Through Hole | SPST-NO (1 Form A) | cURus TUV | Non Latching | 7.5 mA | 110 VDC 380 VAC | 5 ms | Class F | PC Pin | 10 ms | -55 C | 125 °C | 1320 W 4560 VA | 48 VDC |
CIT Relay and Switch | 20 Ohms | 2.25 VDC | Sealed - Fully | 0.3 VDC | General Purpose | Silver Tin Oxide (AgSnO) | 20 A | Through Hole | SPST-NO (1 Form A) | cURus TUV | Non Latching | 0.15 A | 110 VDC 380 VAC | 5 ms | Class F | PC Pin | 10 ms | -55 C | 125 °C | 2200 W 7600 VA | |
CIT Relay and Switch | 225 Ohms | 6.75 VDC | Sealed - Fully | 0.9 VDC | General Purpose | Silver Tin Oxide (AgSnO) | 15 A | Through Hole | SPST-NO (1 Form A) | cURus TUV | Non Latching | 40 mA | 110 VDC 380 VAC | 5 ms | Class F | PC Pin | 10 ms | -55 C | 125 °C | 1650 W 5700 VA | 9 VDC |
CIT Relay and Switch | 5.12 kOhms | 36 VDC | Sealed - Fully | 4.8 VDC | General Purpose | Silver Tin Oxide (AgSnO) | 12 A | Through Hole | SPST-NO (1 Form A) | cURus TUV | Non Latching | 9.4 mA | 110 VDC 380 VAC | 5 ms | Class F | PC Pin | 10 ms | -55 C | 125 °C | 1320 W 4560 VA | 48 VDC |
CIT Relay and Switch | 25 Ohms | 2.25 VDC | Sealed - Fully | 0.3 VDC | General Purpose | Silver Tin Oxide (AgSnO) | 12 A | Through Hole | SPST-NO (1 Form A) | cURus TUV | Non Latching | 0.12 A | 110 VDC 380 VAC | 5 ms | Class F | PC Pin | 10 ms | -55 C | 125 °C | 1320 W 4560 VA | |
 CIT Relay and Switch | 400 Ohms | 9 VDC | Sealed - Fully | 1.2 VDC | General Purpose | Silver Tin Oxide (AgSnO) | 12 A | Through Hole | SPST-NO (1 Form A) | cURus TUV | Non Latching | 0.03 A | 110 VDC 380 VAC | 5 ms | Class F | PC Pin | 10 ms | -55 C | 125 °C | 1320 W 4560 VA | 12 VDC |
