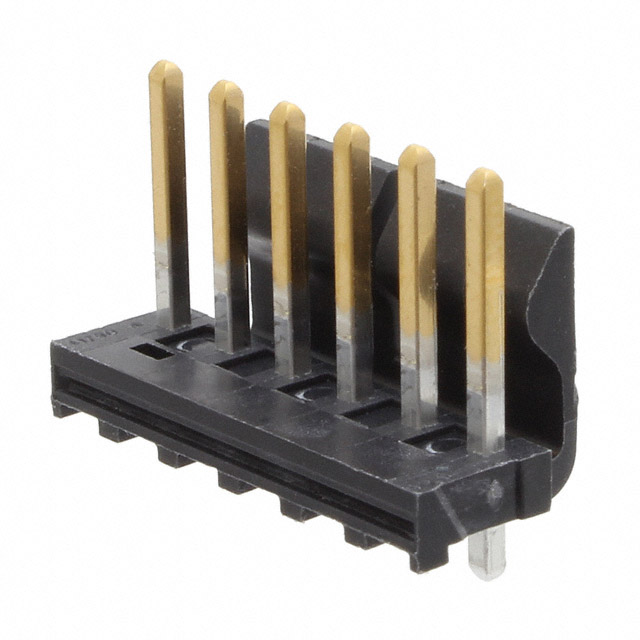

171813 Series

3.96mm Pitch, KK 396 RPC Vertical Header with Friction Lock, Tin (Sn) Plating, Pin Length 17.02mm, Tape and Reel, 9 Circuits, without Pegs

Manufacturer: Molex

Catalog

3.96mm Pitch, KK 396 RPC Vertical Header with Friction Lock, Tin (Sn) Plating, Pin Length 17.02mm, Tape and Reel, 9 Circuits, without Pegs

Part	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Shape	Number of Positions Loaded	Mounting Type	Applications	Number of Rows	Insulation Height	Insulation Height	Connector Type	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Fastening Type	Number of Positions	Contact Length - Mating	Contact Length - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Features	Material Flammability Rating	Contact Finish - Post	Contact Type	Insulation Color	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Finish - Mating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]

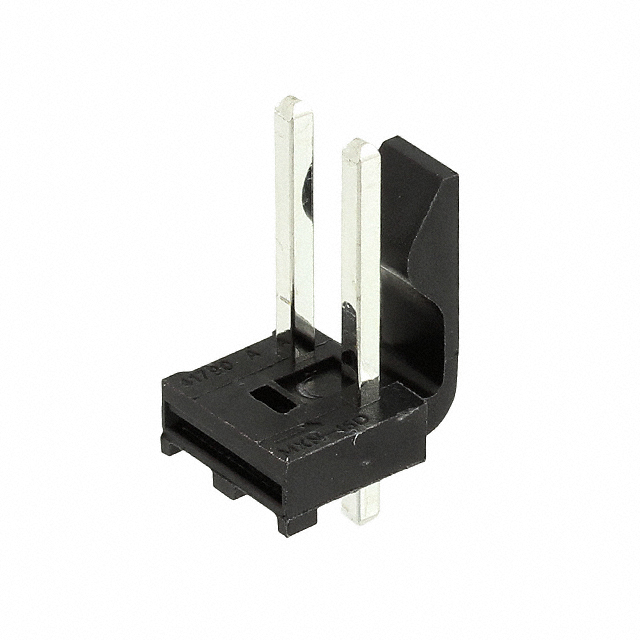

Molex 1718133002	0.671 "	17.05 mm	2.35 mm	0.093 in	Square	All	Through Hole	Automotive General Purpose Industrial Medical Telecommunications	1	0.446 in	11.33 mm	Header	Board to Board Cable	60 Áin	1.52 Ám	Nylon Polyamide (PA)	Friction Lock	2	0.448 in	11.38 mm	Shrouded - 1 Wall	0.156 in	3.96 mm	Pick and Place	UL94 V-2	Tin	Male Pin	Black	Brass	60 µin	1.52 µm	Solder

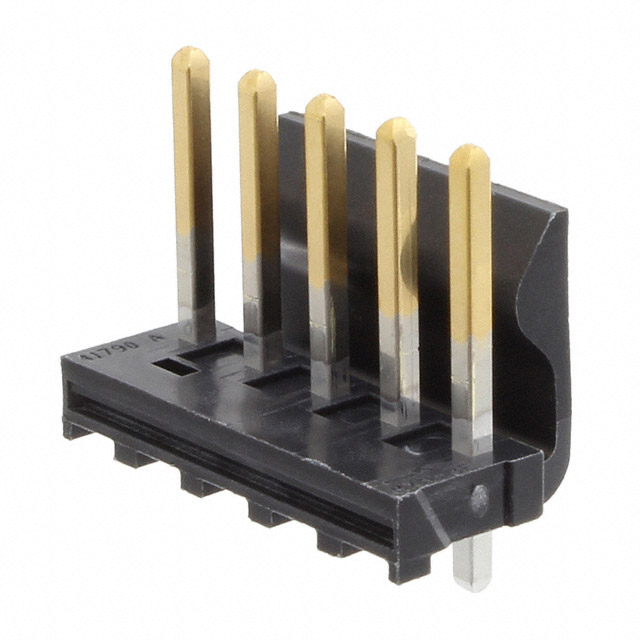

Molex 1718131005	0.671 "	17.05 mm	2.35 mm	0.093 in	Square	All	Through Hole	Automotive General Purpose Industrial Medical Telecommunications	1	0.446 in	11.33 mm	Header	Board to Board Cable	15 µin	0.38 µm	Nylon Polyamide (PA)	Friction Lock		0.448 in	11.38 mm	Shrouded - 1 Wall	0.156 in	3.96 mm		UL94 V-2	Tin	Male Pin	Black	Brass	100 µin	2.54 µm	Solder	Gold

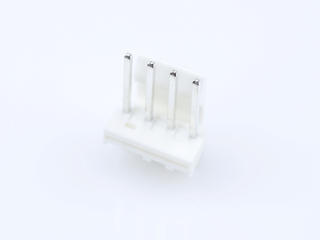

Molex 1718130004	0.671 "	17.05 mm	2.35 mm	0.093 in	Square	All	Through Hole	Automotive General Purpose Industrial Medical Telecommunications	1	0.446 in	11.33 mm	Header	Board to Board Cable	60 Áin	1.52 Ám	Nylon Polyamide (PA)	Friction Lock	4	0.448 in	11.38 mm	Shrouded - 1 Wall	0.156 in	3.96 mm		UL94 V-2	Tin	Male Pin	Black	Brass	60 µin	1.52 µm	Solder
Molex 1718131004	0.671 "	17.05 mm	2.35 mm	0.093 in	Square	All	Through Hole	Automotive General Purpose Industrial Medical Telecommunications	1	0.446 in	11.33 mm	Header	Board to Board Cable	15 µin	0.38 µm	Nylon Polyamide (PA)	Friction Lock	4	0.448 in	11.38 mm	Shrouded - 1 Wall	0.156 in	3.96 mm		UL94 V-2	Tin	Male Pin	Black	Brass	100 µin	2.54 µm	Solder	Gold

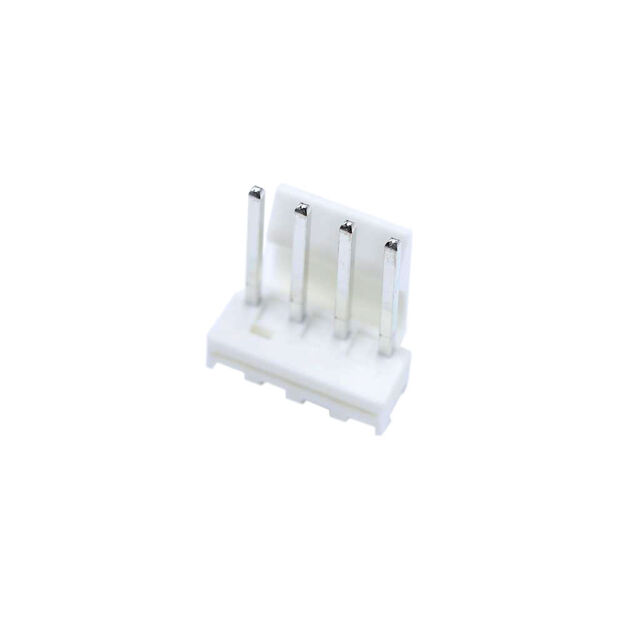

Molex 1718130104	0.72 "	18.29 mm			Square	All	Through Hole	Automotive General Purpose Industrial Medical Telecommunications	1	0.13 in	3.3 mm	Header	Board to Board Cable	60 Áin	1.52 Ám	Nylon Polyamide (PA)	Friction Lock	4	0.45 in	11.43 mm	Shrouded - 1 Wall	0.156 in	3.96 mm		UL94 V-0	Tin	Male Pin	Black	Brass	60 µin	1.52 µm	Solder		600 V	-40 °C	80 C	Varies by Wire Gauge	3.56 mm	0.14 in
Molex 1718132003	0.671 "	17.05 mm	2.35 mm	0.093 in	Square	All	Through Hole	Automotive General Purpose Industrial Medical Telecommunications	1	0.446 in	11.33 mm	Header	Board to Board Cable	30 Áin	0.76 Ám	Nylon Polyamide (PA)	Friction Lock		0.448 in	11.38 mm	Shrouded - 1 Wall	0.156 in	3.96 mm		UL94 V-0	Tin	Male Pin	Black	Brass	100 µin	2.54 µm	Solder	Gold
Molex 1718133012	0.671 "	17.05 mm	2.35 mm	0.093 in	Square	All	Through Hole	Automotive General Purpose Industrial Medical Telecommunications	1	0.446 in	11.33 mm	Header	Board to Board Cable	60 Áin	1.52 Ám	Nylon Polyamide (PA)	Friction Lock	12	0.448 in	11.38 mm	Shrouded - 1 Wall	0.156 in	3.96 mm	Pick and Place	UL94 V-2	Tin	Male Pin	Black	Brass	60 µin	1.52 µm	Solder

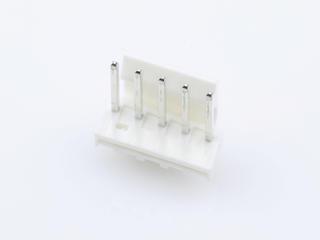

Molex 1718130005	0.671 "	17.05 mm	2.35 mm	0.093 in	Square	All	Through Hole	Automotive General Purpose Industrial Medical Telecommunications	1	0.446 in	11.33 mm	Header	Board to Board Cable	60 Áin	1.52 Ám	Nylon Polyamide (PA)	Friction Lock		0.448 in	11.38 mm	Shrouded - 1 Wall	0.156 in	3.96 mm		UL94 V-2	Tin	Male Pin	Black	Brass	60 µin	1.52 µm	Solder

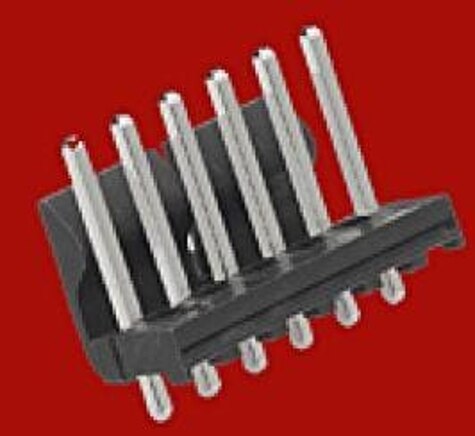

Molex 1718130008	0.671 "	17.05 mm	2.35 mm	0.093 in	Square	All	Through Hole	Automotive General Purpose Industrial Medical Telecommunications	1	0.446 in	11.33 mm	Header	Board to Board Cable	60 Áin	1.52 Ám	Nylon Polyamide (PA)	Friction Lock	8	0.448 in	11.38 mm	Shrouded - 1 Wall	0.156 in	3.96 mm		UL94 V-2	Tin	Male Pin	Black	Brass	60 µin	1.52 µm	Solder
Molex 1718134006	0.671 "	17.05 mm	2.35 mm	0.093 in	Square	All	Through Hole	Automotive General Purpose Industrial Medical Telecommunications	1	0.446 in	11.33 mm	Header	Board to Board Cable	15 µin	0.38 µm	Nylon Polyamide (PA)	Friction Lock	6	0.448 in	11.38 mm	Shrouded - 1 Wall	0.156 in	3.96 mm	Pick and Place	UL94 V-2	Tin	Male Pin	Black	Brass	100 µin	2.54 µm	Solder	Gold
