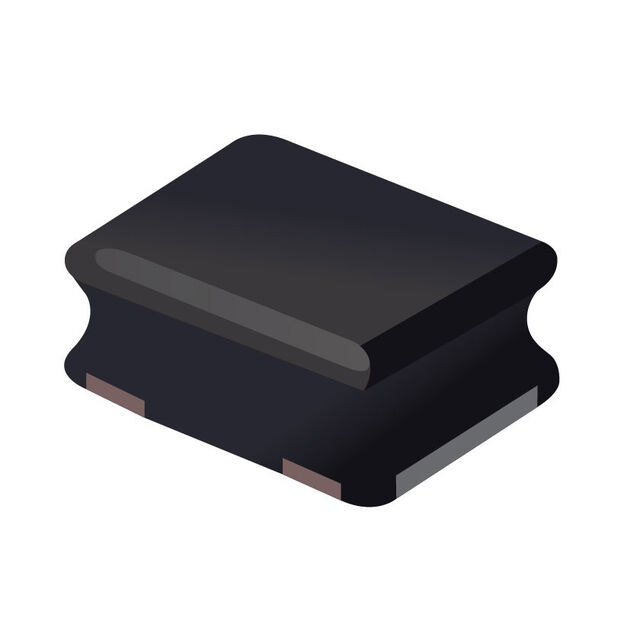

SRN2010BTA Series

Catalog

INDUCTOR POWER SEMI-SHIELDED WIREWOUND 1.5UH 20% 100KHZ 10Q-FACTOR FERRITE 2.5A 0.118OHM DCR 0806 T/R AUTOMOTIVE AEC-Q200

Part	Supplier Device Package	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency - Self Resonant	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Ratings	Q @ Freq [custom]	Q @ Freq [custom]	Mounting Type	Inductance	Inductance Frequency - Test	Material - Core	Current Rating (Amps)	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Saturation (Isat)	Tolerance	DC Resistance (DCR) [Max]
Bourns Inc. SRN2010BTA-1R5M	2010	Drum Core Wirewound	1.6 mm	0.079 in	0.063 "	2 mm	95 MHz	0806 (2016 Metric)	-55 C	125 °C	Shielded	AEC-Q200	1 MHz	10	Surface Mount	1.5 µH	100 kHz	Ferrite	2.5 A	118 mOhm	0.039 in	1 mm	1.6 A	20 %
Bourns Inc. SRN2010BTA-2R2M	2010	Drum Core Wirewound	1.6 mm	0.079 in	0.063 "	2 mm	76 MHz	0806 (2016 Metric)	-55 C	125 °C	Shielded	AEC-Q200	1 MHz	10	Surface Mount	2.2 µH	100 kHz	Ferrite	2.1 A		0.039 in	1 mm	1.3 A	20 %	168 mOhm
Bourns Inc. SRN2010BTA-R24M	2010	Drum Core Wirewound	1.6 mm	0.079 in	0.063 "	2 mm	270 MHz	0806 (2016 Metric)	-55 C	125 °C	Shielded	AEC-Q200	1 MHz	10	Surface Mount	240 nH	100 kHz	Ferrite	5.2 A	24 mOhm	0.039 in	1 mm	4.1 A	20 %
Bourns Inc. SRN2010BTA-R47M	2010	Drum Core Wirewound	1.6 mm	0.079 in	0.063 "	2 mm	240 MHz	0806 (2016 Metric)	-55 C	125 °C	Shielded	AEC-Q200	1 MHz	10	Surface Mount	470 nH	100 kHz	Ferrite	4 A		0.039 in	1 mm	2.9 A	20 %	45 mOhm
Bourns Inc. SRN2010BTA-4R7M	2010	Drum Core Wirewound	1.6 mm	0.079 in	0.063 "	2 mm	42 MHz	0806 (2016 Metric)	-55 C	125 °C	Shielded	AEC-Q200	1 MHz	10	Surface Mount	4.7 ÁH	100 kHz	Ferrite	1.3 A		0.039 in	1 mm	900 mA	20 %	474 mOhm
Bourns Inc. SRN2010BTA-6R8M	2010	Drum Core Wirewound	1.6 mm	0.079 in	0.063 "	2 mm	37 MHz	0806 (2016 Metric)	-55 C	125 °C	Shielded	AEC-Q200	1 MHz	10	Surface Mount	6.8 µH	100 kHz	Ferrite	900 mA		0.039 in	1 mm	800 mA	20 %	576 mOhm
Bourns Inc. SRN2010BTA-3R3M	2010	Drum Core Wirewound	1.6 mm	0.079 in	0.063 "	2 mm	64 MHz	0806 (2016 Metric)	-55 C	125 °C	Shielded	AEC-Q200	1 MHz	10	Surface Mount	3.3 µH	100 kHz	Ferrite	1.7 A		0.039 in	1 mm	1.1 A	20 %	252 mOhm
Bourns Inc. SRN2010BTA-R68M	2010	Drum Core Wirewound	1.6 mm	0.079 in	0.063 "	2 mm	180 MHz	0806 (2016 Metric)	-55 C	125 °C	Shielded	AEC-Q200	1 MHz	10	Surface Mount	0.68 µH	100 kHz	Ferrite	3.6 A		0.039 in	1 mm	2.5 A	20 %
Bourns Inc. SRN2010BTA-5R6M	2010	Drum Core Wirewound	1.6 mm	0.079 in	0.063 "	2 mm	40 MHz	0806 (2016 Metric)	-55 C	125 °C	Shielded	AEC-Q200	1 MHz	10	Surface Mount	5.6 µH	100 kHz	Ferrite	1.1 A		0.039 in	1 mm	850 mA	20 %	498 mOhm
Bourns Inc. SRN2010BTA-R33M	2010	Drum Core Wirewound	1.6 mm	0.079 in	0.063 "	2 mm	250 MHz	0806 (2016 Metric)	-55 C	125 °C	Shielded	AEC-Q200	1 MHz	10	Surface Mount	330 nH	100 kHz	Ferrite	4.6 A		0.039 in	1 mm	3.3 A	20 %	34.8 mOhm
