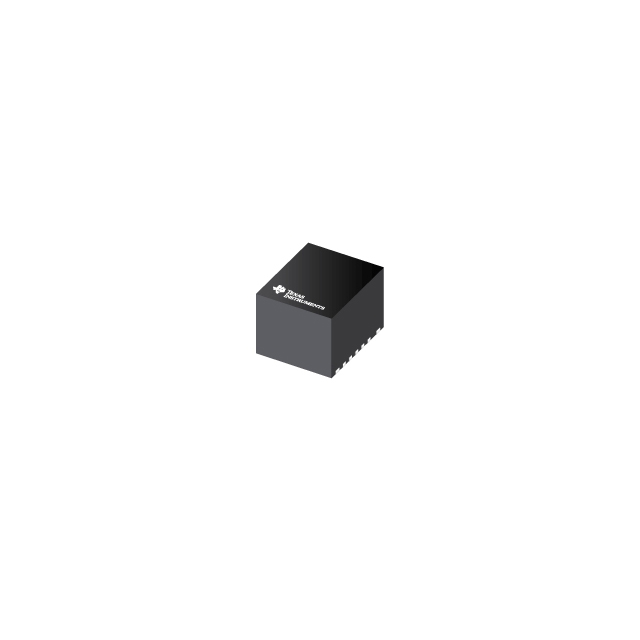

TPSM5601R5HE Series

-55°C junction, 60-V input, 1-V to 16-V output, 1.5-A power module in enhanced HotRod™ QFN package

Catalog

-55°C junction, 60-V input, 1-V to 16-V output, 1.5-A power module in enhanced HotRod™ QFN package

Part	Current - Output (Max) [Max]	Efficiency	Type	Applications	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs	Supplier Device Package	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Package / Case	Mounting Type	Voltage - Input (Min) [Min]
Texas Instruments TPSM5601R5HEXTRDAR	1.5 A	86 %	Non-Isolated PoL Module	ITE (Commercial)	60 V	5 mm	5.5 mm	0.2 in	0.22 "	4.1 mm	0.16 in	1	15-B3QFN (5x5.5)	24 W	-55 °C	125 °C	Adjustable Output Remote On/Off Standby Output	16 V	1 V	15-PowerBQFN Module	Surface Mount	4.2 V

Catalog

-55°C junction, 60-V input, 1-V to 16-V output, 1.5-A power module in enhanced HotRod™ QFN package

Key Features

• Functional Safety-CapableDocumentation available to aid functional safety system design5-mm × 5.5-mm × 4-mm Enhanced HotRod™ QFNExcellent thermal performance: up to 18-W output power at 85°C, no airflowStandard footprint: single large thermal pad and all pins accessible from perimeterDesigned for reliable and rugged applicationsWide input voltage range: 4.2 V to 60 VInput voltage transient protection up to 66 VOperating junction range: –40°C to +125°CEXT-suffix junction range: –55°C to +125°CFixed 1-MHz switching frequencyFPWM mode of operationOptimized for ultra-low EMI requirementsIntegrated shielded inductor and high-frequency bypass capacitorsMeets EN55011 EMI standardsSpread spectrum option reduces emissions26-µA non-switching quiescent currentMonotonic start-up into prebiased outputNo loop-compensation or bootstrap componentsPrecision enable and input UVLO with hysteresisThermal shutdown protection with hysteresisCreate a custom regulator design usingWEBENCH Power DesignerFunctional Safety-CapableDocumentation available to aid functional safety system design5-mm × 5.5-mm × 4-mm Enhanced HotRod™ QFNExcellent thermal performance: up to 18-W output power at 85°C, no airflowStandard footprint: single large thermal pad and all pins accessible from perimeterDesigned for reliable and rugged applicationsWide input voltage range: 4.2 V to 60 VInput voltage transient protection up to 66 VOperating junction range: –40°C to +125°CEXT-suffix junction range: –55°C to +125°CFixed 1-MHz switching frequencyFPWM mode of operationOptimized for ultra-low EMI requirementsIntegrated shielded inductor and high-frequency bypass capacitorsMeets EN55011 EMI standardsSpread spectrum option reduces emissions26-µA non-switching quiescent currentMonotonic start-up into prebiased outputNo loop-compensation or bootstrap componentsPrecision enable and input UVLO with hysteresisThermal shutdown protection with hysteresisCreate a custom regulator design usingWEBENCH Power Designer

Description

The TPSM5601R5Hx power module is a highly integrated 1.5-A power solution that combines a 60-V input, step-down DC/DC converter with power MOSFETs, a shielded inductor, and passives in a thermally-enhanced QFN package. The 5-mm × 5.5-mm × 4-mm, 15-pin QFN package usesEnhanced HotRod QFNtechnology for enhanced thermal performance, small footprint, and low EMI. The package footprint has all pins accessible from the perimeter and a single large thermal pad for simple layout and easy handling in manufacturing. The TPSM5601R5Hx is a compact, easy-to-use power module with a wide adjustable output voltage range of 1.0 V to 16 V. The total solution requires as few as four external components and eliminates the loop compensation and magnetics part selection from the design process. The full feature set includes power good, programmable UVLO, prebias start-up, overcurrent and temperature protections, making the TPSM5601R5Hx an excellent device for powering a wide range of applications. Space-constrained applications benefit from the 5-mm × 5.5-mm package. Additionally, the TPSM5601R5HEXToffers extended low temperature operation of –55°C and the TPSM5601R5HSoffers frequency spread-spectrum operation. The TPSM5601R5Hx power module is a highly integrated 1.5-A power solution that combines a 60-V input, step-down DC/DC converter with power MOSFETs, a shielded inductor, and passives in a thermally-enhanced QFN package. The 5-mm × 5.5-mm × 4-mm, 15-pin QFN package usesEnhanced HotRod QFNtechnology for enhanced thermal performance, small footprint, and low EMI. The package footprint has all pins accessible from the perimeter and a single large thermal pad for simple layout and easy handling in manufacturing. The TPSM5601R5Hx is a compact, easy-to-use power module with a wide adjustable output voltage range of 1.0 V to 16 V. The total solution requires as few as four external components and eliminates the loop compensation and magnetics part selection from the design process. The full feature set includes power good, programmable UVLO, prebias start-up, overcurrent and temperature protections, making the TPSM5601R5Hx an excellent device for powering a wide range of applications. Space-constrained applications benefit from the 5-mm × 5.5-mm package. Additionally, the TPSM5601R5HEXToffers extended low temperature operation of –55°C and the TPSM5601R5HSoffers frequency spread-spectrum operation.
