TMCM-3351 Series

3-axis stepper motor controller/driver module 11to 28V, 3A, 256 µSteps, with USB, CAN and RS485, RS232 Interface, StallGuard, CoolStep and StealthChop

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

3-axis stepper motor controller/driver module 11to 28V, 3A, 256 µSteps, with USB, CAN and RS485, RS232 Interface, StallGuard, CoolStep and StealthChop

Part	Current - Output	Interface	Motor Type	Control / Drive Type	Number of Motors	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Mounting Type
Analog Devices Inc./Maxim Integrated TMCM-3351-TMCL	3 A	CAN RS-232 RS-485 USB	Stepper	Bipolar Stepper	3	11 VDC	28 V	Board	Chassis Mount
Analog Devices Inc./Maxim Integrated TMCM-3351-CANOPEN	3 A	CAN RS-232 RS-485 USB	Stepper	Bipolar Stepper	3	11 VDC	28 V	Board	Chassis Mount

Catalog

3-axis stepper motor controller/driver module 11to 28V, 3A, 256 µSteps, with USB, CAN and RS485, RS232 Interface, StallGuard, CoolStep and StealthChop

Description

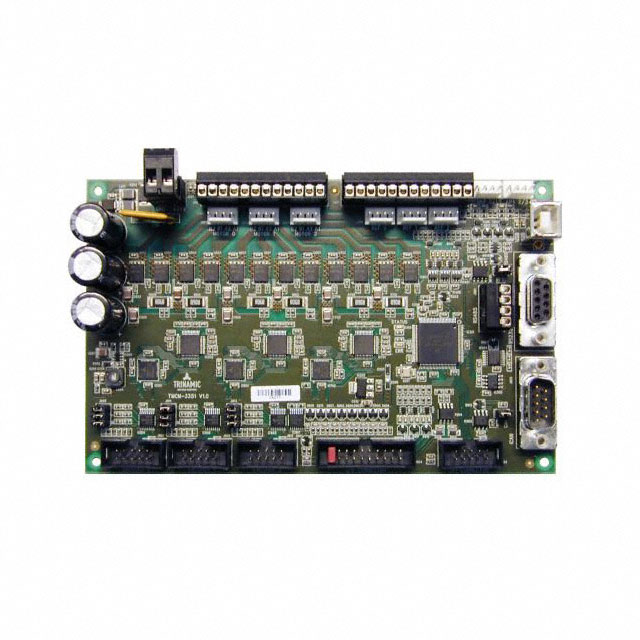

TMCM-3351 is a three axes motor controller/driver board for 2-phase bipolar stepper motors. It is the direct successor of TMCM-351 - mechanically and electrically compatible - with our latest generation of stepper driver and motion controller ICs supporting linear and S-shaped ramps and closed-loop operation with external ABN-encoders.APPLICATIONSLaboratory AutomationManufacturingSemiconductor HandlingRoboticsFactory AutomationTest & MeasurementLife ScienceBiotechnologyLiquid Handling
