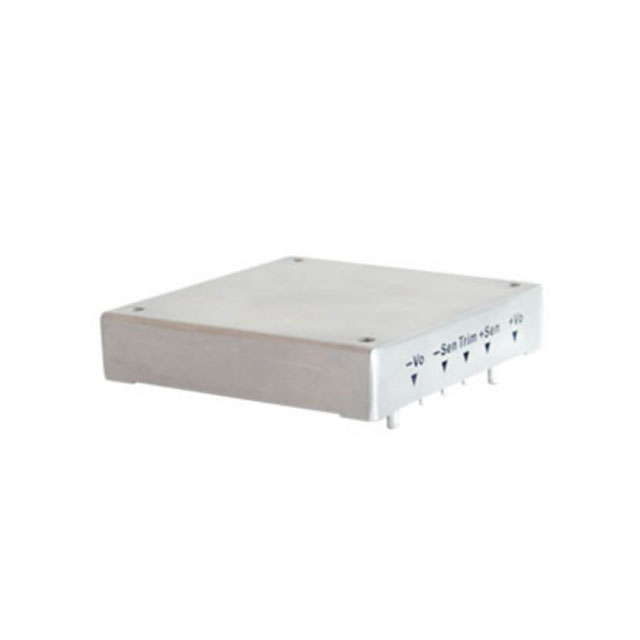

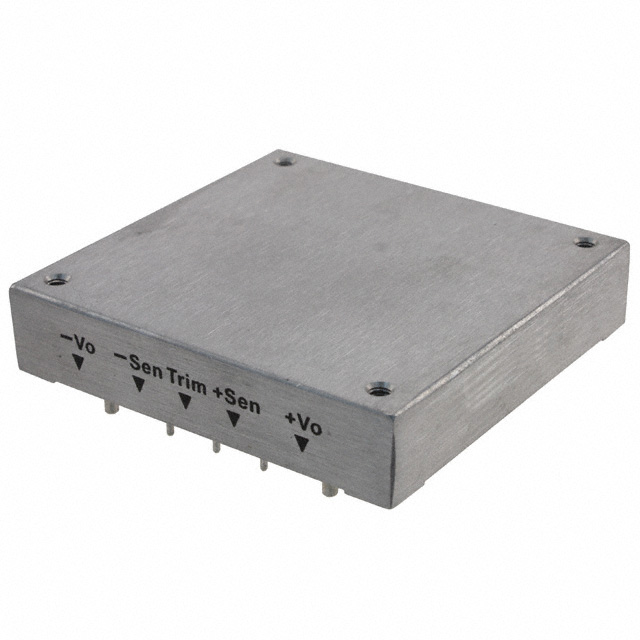

VHB100W Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 48V 100W

Part	Voltage - Input (Max) [Max]	Power (Watts)	Number of Outputs	Approval Agency	Control Features	Voltage - Isolation	Voltage - Input (Min) [Min]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Type	Current - Output (Max) [Max]	Mounting Type	Features	Voltage - Output 1	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Supplier Device Package
CUI Inc. VHB100W-Q24-S48	36 V	100 W	1	UL	Active High Enable	1.5 kV	9 V	ITE (Commercial)	-40 C	100 °C	60950-1	Isolated Module	2.08 A	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	48 V	9-DIP Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	85 %
CUI Inc. VHB100W-Q48-S5	75 V	100 W	1	UL	Active High Enable	1.5 kV	18 V	ITE (Commercial)	-40 C	100 °C	60950-1	Isolated Module	20 A	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	5 V	9-DIP Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	86 %
CUI Inc. VHB100W-Q24-S24	36 V	100 W	1	UL	Active High Enable	1.5 kV	9 V	ITE (Commercial)	-40 C	100 °C	60950-1	Isolated Module	4.17 A	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	24 V	9-DIP Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	86 %
CUI Inc. VHB100W-Q24-S12	36 V	100 W	1	UL	Active High Enable	1.5 kV	9 V	ITE (Commercial)	-40 C	100 °C	60950-1	Isolated Module	8.3 A	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	12 V	9-DIP Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	85 %
CUI Inc. VHB100W-Q48-S24	75 V	100 W	1	UL	Active High Enable	1.5 kV	18 V	ITE (Commercial)	-40 C	100 °C	60950-1	Isolated Module	4.17 A	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	24 V	9-DIP Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	88 %
CUI Inc. VHB100W-Q24-S5	36 V	100 W	1	UL	Active High Enable	1.5 kV	9 V	ITE (Commercial)	-40 C	100 °C	60950-1	Isolated Module	20 A	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	5 V	9-DIP Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	83.5 %
CUI Inc. VHB100W-Q24-S3R3	36 V	66 W	1	UL	Active High Enable	1.5 kV	9 V	ITE (Commercial)	-40 C	100 °C	60950-1	Isolated Module	20 A	Through Hole	OCP OTP OVP Remote On/Off SCP	3.3 V	9-DIP Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	81.5 %	Half Brick
CUI Inc. VHB100W-Q24-S28	36 V	100 W	1	UL	Active High Enable	1.5 kV	9 V	ITE (Commercial)	-40 C	100 °C	60950-1	Isolated Module	3.57 A	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	28 V	9-DIP Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	86 %
CUI Inc. VHB100W-Q48-S3R3	75 V	66 W	1	UL	Active High Enable	1.5 kV	18 V	ITE (Commercial)	-40 C	100 °C	60950-1	Isolated Module	20 A	Through Hole	OCP OTP OVP Remote On/Off SCP	3.3 V	9-DIP Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	80.5 %	Half Brick
CUI Inc. VHB100W-Q48-S28	75 V	100 W	1	UL	Active High Enable	1.5 kV	18 V	ITE (Commercial)	-40 C	100 °C	60950-1	Isolated Module	3.57 A	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	28 V	9-DIP Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	88 %
