1N5401 Series

Catalog

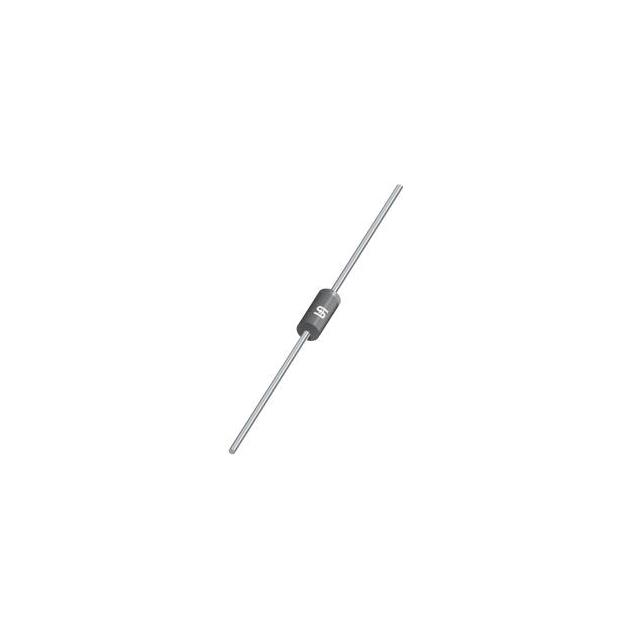

DIODE GEN PURP 100V 3A DO201AD

Part	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Mounting Type	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Capacitance @ Vr, F	Grade	Voltage - DC Reverse (Vr) (Max) [Max]	Qualification	Speed [Min]	Supplier Device Package	Technology
Taiwan Semiconductor Corporation 1N5401GHR0G	3 A	5 µA	1.1 V	DO-201AD Axial	Through Hole	-55 °C	150 °C	25 pF	Automotive	100 V	AEC-Q101	200 mA 500 ns	DO-201AD	Standard
Taiwan Semiconductor Corporation 1N5401G R0G	3 A	5 µA	1.1 V	DO-201AD Axial	Through Hole	-55 °C	150 °C	25 pF		100 V		200 mA 500 ns	DO-201AD	Standard
Taiwan Semiconductor Corporation 1N5401G-K	3 A	5 µA	1.1 V	DO-201AD Axial	Through Hole	-55 °C	150 °C	25 pF		100 V		200 mA 500 ns	DO-201AD	Standard
