ESMC-F Series

Manufacturer: Adam Tech

Catalog

CONN RCPT VERT SMT 20POS 1.27MM

Part	Contact Shape	Insulation Material	Contact Material	Mounting Type	Insulation Height	Insulation Height	Contact Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Connector Type	Contact Finish Thickness - Mating	Mated Stacking Heights	Insulation Color	Features	Number of Rows [custom]	Number of Positions Loaded	Material Flammability Rating	Termination	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Cable Termination	Color	Pitch	Pitch	Contact Finish	Row Spacing	Row Spacing	Wire Type	Contact Finish Thickness	Wire Gauge
Adam Tech ESMC-F-20-SGS-SMT-C-PP-T/R	Square	Thermoplastic	Phosphor Bronze	Surface Mount	13.64 mm	0.537 in	Female Socket	Tin	-55 C	125 °C	1.2 A	1.27 mm	0.05 in	Gold	Receptacle	Flash	15.4 mm 16.9 mm 18.5 mm	Black	Board Guide Pick and Place Solder Retention	2	All	UL94 V-0	Solder	20	0.05 in	1.27 mm	Push-Pull
Adam Tech ESMC-F-32-SGS-SMT-B-PP-T/R	Square	Thermoplastic	Phosphor Bronze	Surface Mount	9.05 mm	0.356 "	Female Socket	Tin	-55 C	125 °C	1.2 A	1.27 mm	0.05 in	Gold	Receptacle	Flash	10.8 mm 12.3 mm 13.9 mm	Black	Board Guide Pick and Place Solder Retention	2	All	UL94 V-0	Solder		0.05 in	1.27 mm	Push-Pull

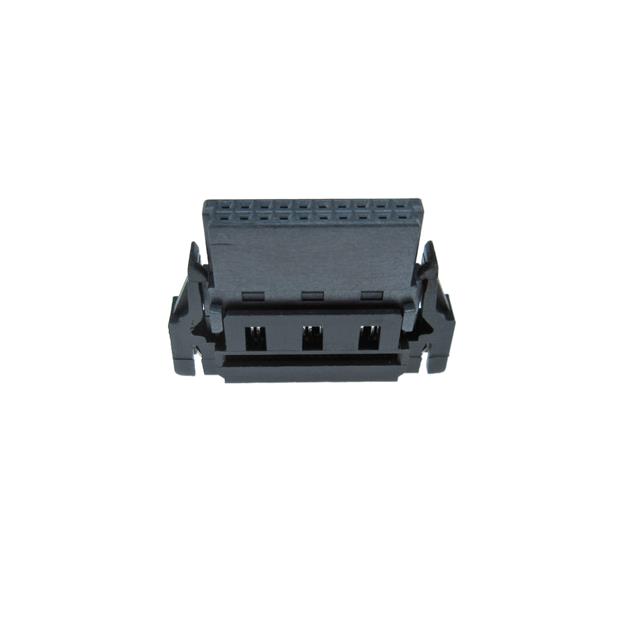

Adam Tech ESMC-F-20-SGS-14.10-IDC-L				Free Hanging (In-Line)			Female Socket								Receptacle				Closed End	2				20			Latch Lock	IDC	Ivory	0.05 in	1.27 mm	Gold	1.27 mm	0.05 "	Ribbon Cable	Flash	30 AWG

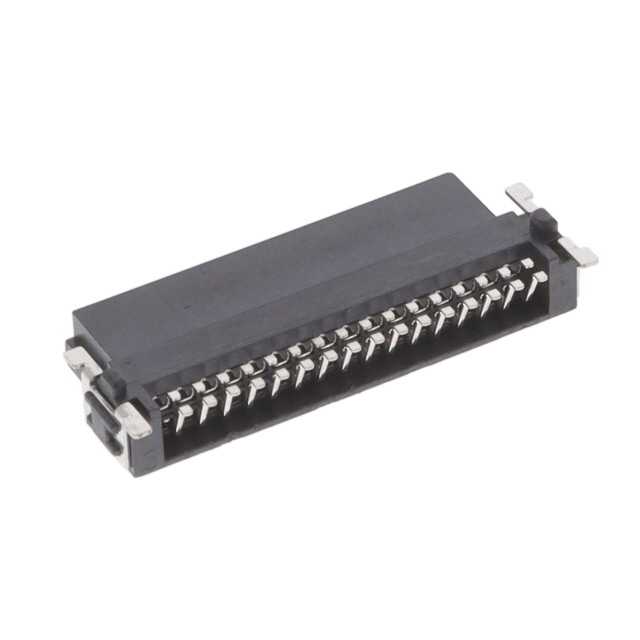

Adam Tech ESMC-F-32-SGR-SMT-T/R	Square	Thermoplastic	Phosphor Bronze	Right Angle Surface Mount	3.68 mm	0.145 in	Female Socket	Tin	-55 C	125 °C	1.2 A	1.27 mm	0.05 in	Gold	Receptacle	Flash		Black	Board Guide Solder Retention	2	All	UL94 V-0	Solder		0.05 in	1.27 mm	Push-Pull

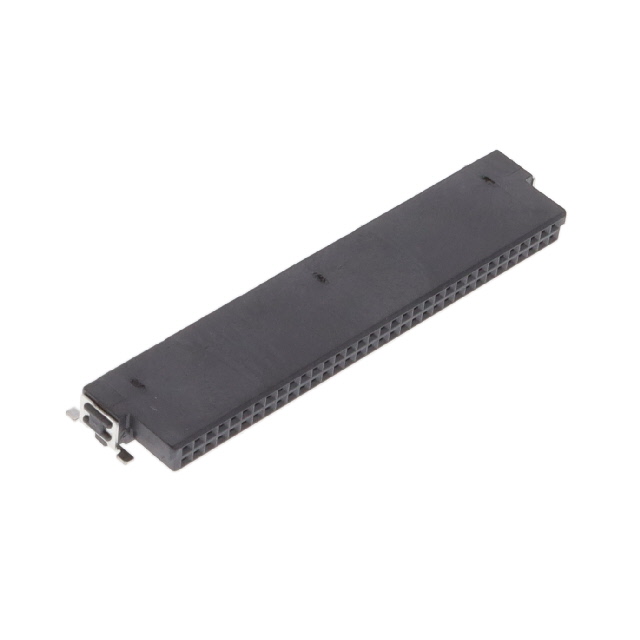

Adam Tech ESMC-F-68-SGR-SMT-T/R	Square	Thermoplastic	Phosphor Bronze	Right Angle Surface Mount	3.68 mm	0.145 in	Female Socket	Tin	-55 C	125 °C	1.2 A	1.27 mm	0.05 in	Gold	Receptacle	Flash		Black	Board Guide Solder Retention	2	All	UL94 V-0	Solder	68 positions	0.05 in	1.27 mm	Push-Pull
Adam Tech ESMC-F-50-SGS-SMT-B-PP-T/R	Square	Thermoplastic	Phosphor Bronze	Surface Mount	9.05 mm	0.356 "	Female Socket	Tin	-55 C	125 °C	1.2 A	1.27 mm	0.05 in	Gold	Receptacle	Flash	10.8 mm 12.3 mm 13.9 mm	Black	Board Guide Pick and Place Solder Retention	2	All	UL94 V-0	Solder	50	0.05 in	1.27 mm	Push-Pull
Adam Tech ESMC-F-68-SGS-SMT-A-PP-T/R	Square	Thermoplastic	Phosphor Bronze	Surface Mount	6.25 mm	0.246 in	Female Socket	Tin	-55 C	125 °C	1.2 A	1.27 mm	0.05 in	Gold	Receptacle	Flash	8 mm 9.5 mm 11.1 mm	Black	Board Guide Pick and Place Solder Retention	2	All	UL94 V-0	Solder	68 positions	0.05 in	1.27 mm	Push-Pull
Adam Tech ESMC-F-50-SGS-SMT-C-PP-T/R	Square	Thermoplastic	Phosphor Bronze	Surface Mount	13.64 mm	0.537 in	Female Socket	Tin	-55 C	125 °C	1.2 A	1.27 mm	0.05 in	Gold	Receptacle	Flash	15.4 mm 16.9 mm 18.5 mm	Black	Board Guide Pick and Place Solder Retention	2	All	UL94 V-0	Solder	50	0.05 in	1.27 mm	Push-Pull
Adam Tech ESMC-F-16-SGS-SMT-B-PP-T/R	Square	Thermoplastic	Phosphor Bronze	Surface Mount	9.05 mm	0.356 "	Female Socket	Tin	-55 C	125 °C	1.2 A	1.27 mm	0.05 in	Gold	Receptacle	Flash	10.8 mm 12.3 mm 13.9 mm	Black	Board Guide Pick and Place Solder Retention	2	All	UL94 V-0	Solder	16	0.05 in	1.27 mm	Push-Pull
Adam Tech ESMC-F-80-SGS-SMT-B-PP-T/R	Square	Thermoplastic	Phosphor Bronze	Surface Mount	9.05 mm	0.356 "	Female Socket	Tin	-55 C	125 °C	1.2 A	1.27 mm	0.05 in	Gold	Receptacle	Flash	10.8 mm 12.3 mm 13.9 mm	Black	Board Guide Pick and Place Solder Retention	2	All	UL94 V-0	Solder	80	0.05 in	1.27 mm	Push-Pull
