MDT350 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

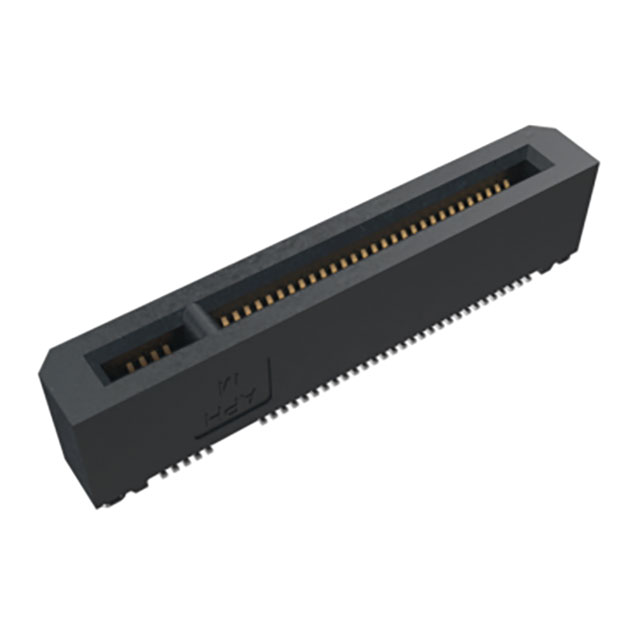

CONN M.2 FMALE 67POS 0.020 GOLD
| Part | Material - Insulation | Card Thickness | Card Thickness | Color | Contact Finish | Card Type | Number of Positions | Read Out | Gender | Contact Material | Number of Rows [custom] | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Liquid Crystal Polymer (LCP) | 0.031 in | 0.79 mm | Black | Gold | M.2 (NGFF) Mini Card | 67 | Dual | Female | Copper Alloy | 2 | Solder | 80 °C | -40 C | 0.02 " | 0.5 mm | 30 Áin | 0.76 Ám | Board Guide Locking Ramp Solder Retention | Surface Mount |
