CH-2 Series

Catalog

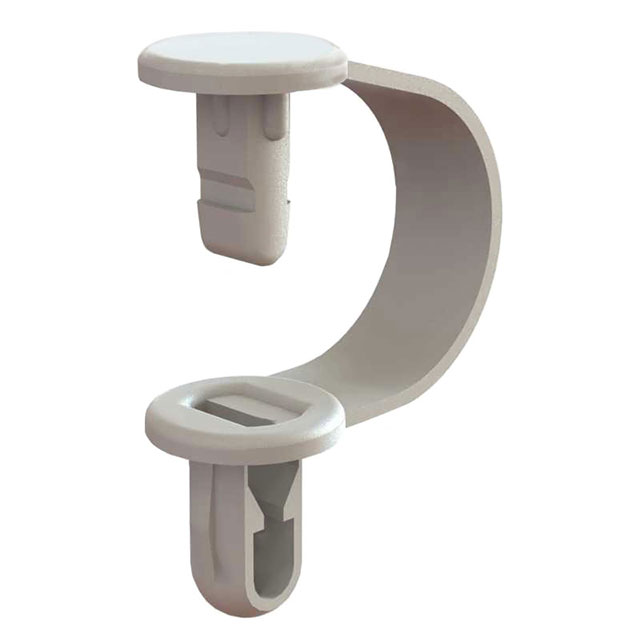

FASTENER, PUSH MOUNT CABLE CLAMP, 15.9 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 66.7 MM, 7.5 MM

Part	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Material Flammability Rating	Height	Type	Length	Length	Mounting Type	Width [y]	Width [y]	Material Thickness	Material Thickness	Color	Opening Size	Opening Size	Type Attributes	Material	Panel Hole Size	Panel Hole Size
Essentra Components CH-2-01	0.79 mm	2.39 mm	0.094 "	0.031 "	UL94 V-2	0.62 in 15.75 mm	Bendable Clip	2.625 in	66.68 mm	Push In	0.297 in	7.54 mm	1.02 mm	0.04 in	Natural	0.625 in	15.88 mm	Snap Closure	Polyamide (PA66) Nylon 6/6	6.35 mm	0.25 in

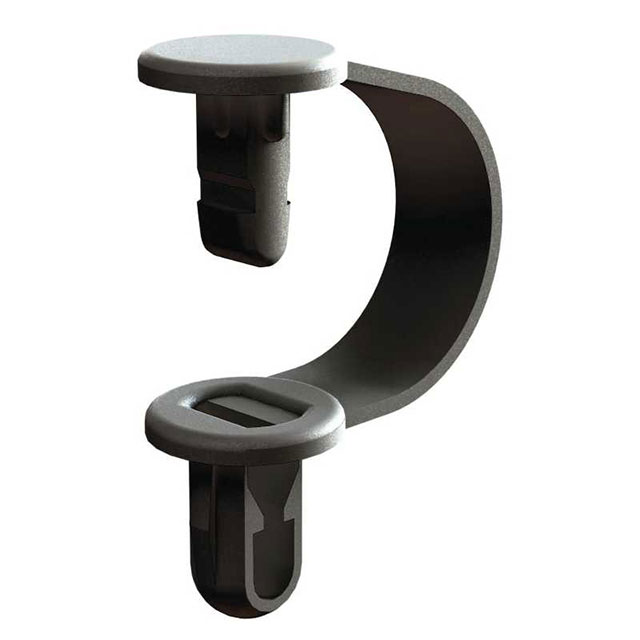

Essentra Components CH-2-01BK	0.79 mm	2.39 mm	0.094 "	0.031 "	UL94 V-2	0.62 in 15.75 mm	Bendable Clip	2.625 in	66.68 mm	Push In	0.297 in	7.54 mm	1.02 mm	0.04 in	Black	0.625 in	15.88 mm	Snap Closure	Polyamide (PA66) Nylon 6/6	6.35 mm	0.25 in
