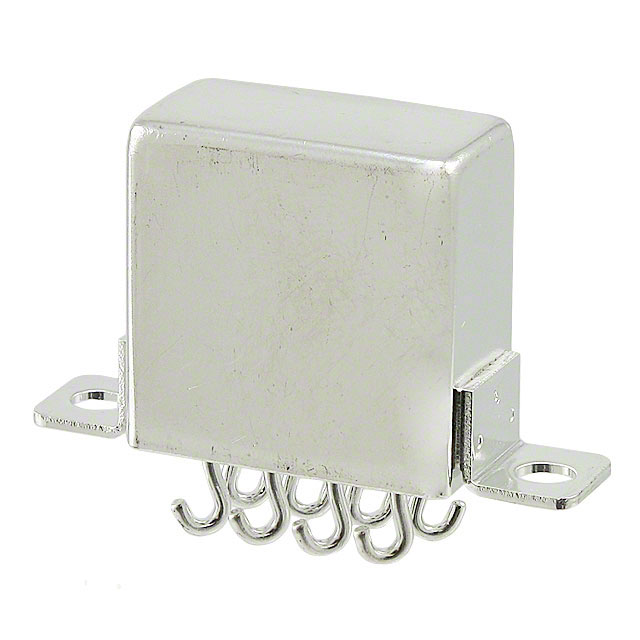

B07D99 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
RELAY GEN PURPOSE DPDT 10A 120V
| Part | Coil Voltage | Contact Material | Coil Resistance | Must Release Voltage | Release Time | Operate Time | Must Operate Voltage | Grade | Coil Type | Mounting Type | Contact Rating (Current) | Coil Current | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Seal Rating | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 120 VDC | Silver Cadmium Oxide (AgCdO) | 7600 Ohms | 7.7 VDC | 15 ms | 15 ms | 65 VDC | Military | Non Latching | Chassis Mount | 10 A | 15.8 mA | General Purpose | 125 °C | -65 ░C | DPDT (2 Form C) | Sealed - Hermetically | Solder Hook |
TE Connectivity Aerospace, Defense and Marine | 48 VDC | Silver Cadmium Oxide (AgCdO) | 1.2 kOhms | 3.6 VDC | 10 ms | 10 ms | 26 VDC | Non Latching | Chassis Mount | 10 A | 40 mA | General Purpose | 125 °C | -65 ░C | DPDT (2 Form C) | Sealed - Hermetically | Solder Hook | |
TE Connectivity Aerospace, Defense and Marine | 12 VDC | Silver Cadmium Oxide (AgCdO) | 75 Ohms | 0.9 VDC | 10 ms | 10 ms | 6.5 VDC | Non Latching | Chassis Mount | 10 A | 160 mA | General Purpose | 125 °C | -65 ░C | DPDT (2 Form C) | Sealed - Hermetically | Solder Hook |
