337-034 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 34POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Termination	Read Out	Card Type	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Flange Feature	Contact Material	Contact Finish	Number of Positions/Bay/Row [custom]	Contact Type	Mounting Type	Color	Number of Rows [custom]	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Features	Termination Rows	Number of Positions/Bay/Row	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]

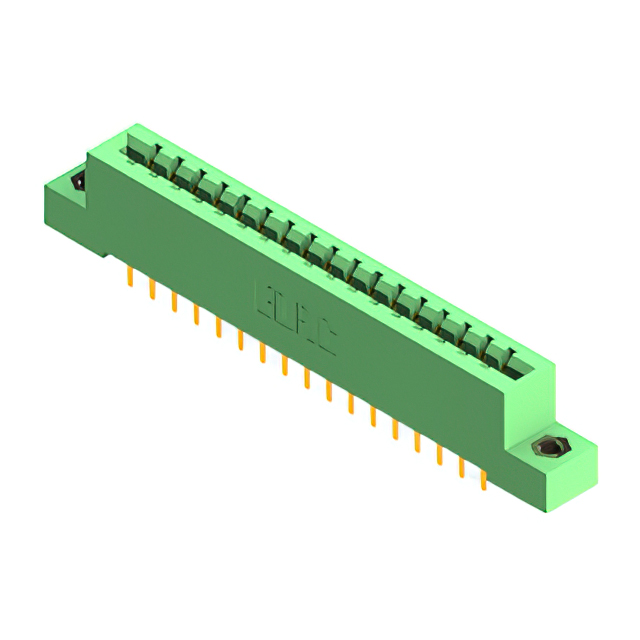

EDAC Inc. 337-034-520-207	Polyester Thermoplastic	2	Solder	Dual	Non Specified - Dual Edge	3.96 mm	0.156 in	-40 C	105 ░C	34	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Gold	17	Cantilever	Through Hole	Green	2	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm

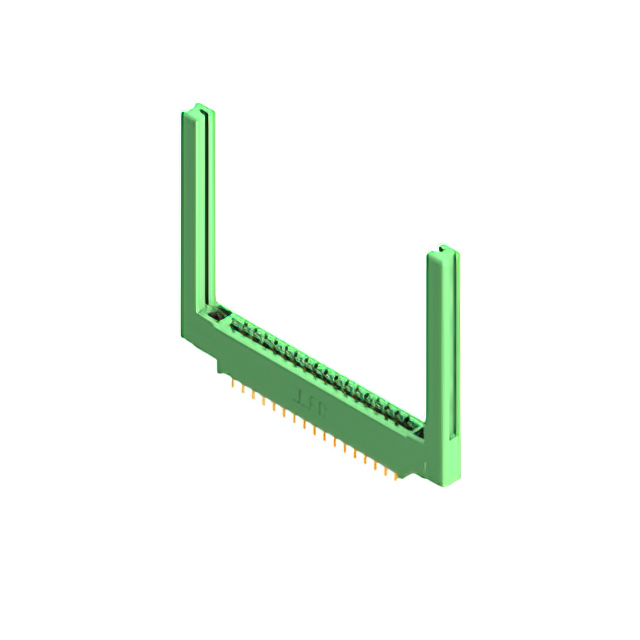

EDAC Inc. 337-034-540-858	Polyester Thermoplastic	2	Wire Wrap	Dual	Non Specified - Dual Edge	3.96 mm	0.156 in	-40 C	105 ░C	34	4-40 Threaded Insert Top Mount Opening	Copper Alloy	Gold	17	Cantilever	Through Hole	Green	2	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Guides

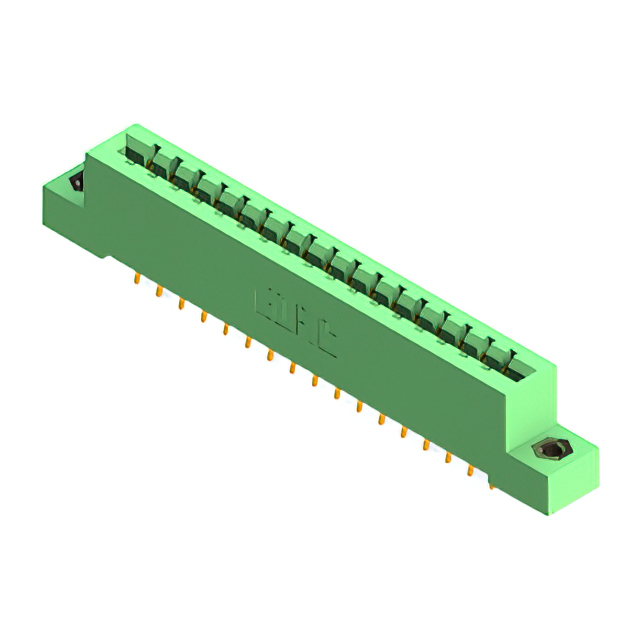

EDAC Inc. 337-034-556-207	Polyester Thermoplastic	2	Solder	Dual	Non Specified - Dual Edge	3.96 mm	0.156 in	-40 C	105 ░C	34	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Gold	17	Cantilever	Board Edge Straddle Mount	Green	2	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender

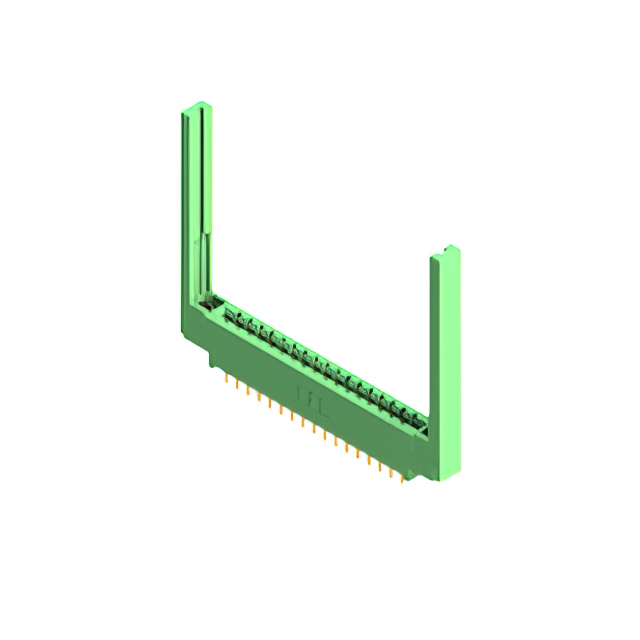

EDAC Inc. 337-034-540-868	Polyester Thermoplastic	2	Wire Wrap	Dual	Non Specified - Dual Edge	3.96 mm	0.156 in	-40 C	105 ░C	34	4-40 Threaded Insert Top Mount Opening	Copper Alloy	Gold	17	Cantilever	Through Hole	Green	2	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Guides

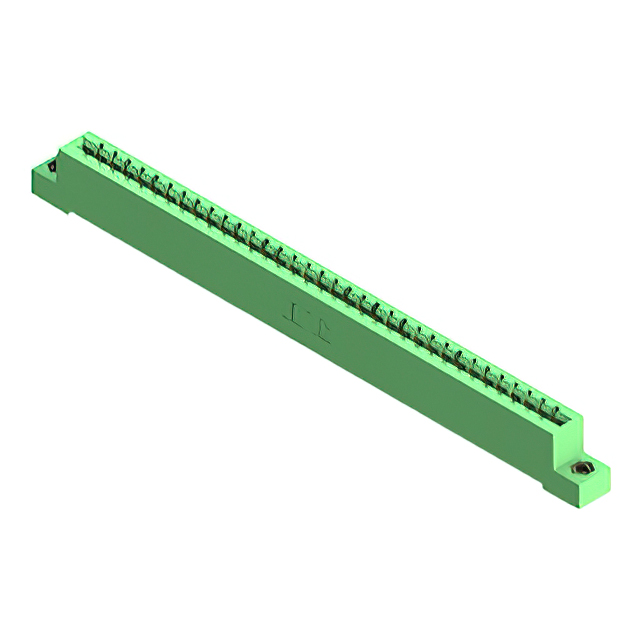

EDAC Inc. 337-034-524-107	Polyester Thermoplastic		Solder	Single	Non Specified - Single Edge	3.96 mm	0.156 in	-40 C	105 ░C	34	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Gold		Cantilever	Through Hole	Green		Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm		1	34	1

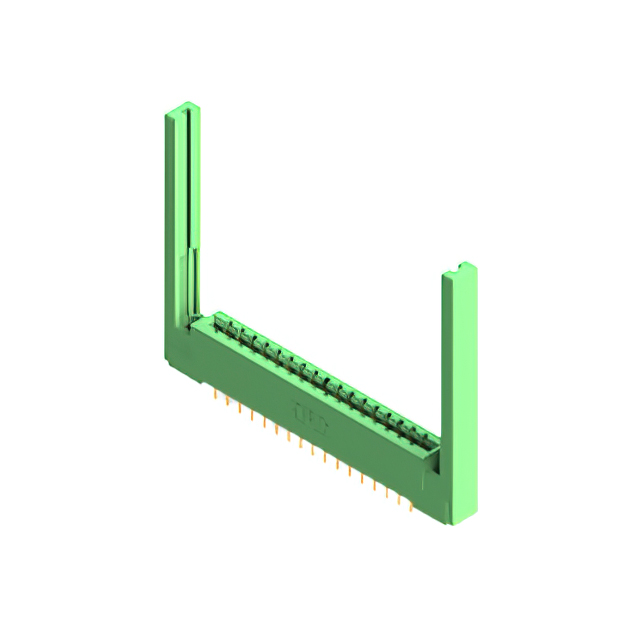

EDAC Inc. 337-034-524-268	Polyester Thermoplastic	2	Solder	Dual	Non Specified - Dual Edge	3.96 mm	0.156 in	-40 C	105 ░C	34	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Gold	17	Cantilever	Through Hole	Green	2	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Guides

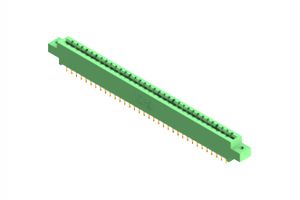

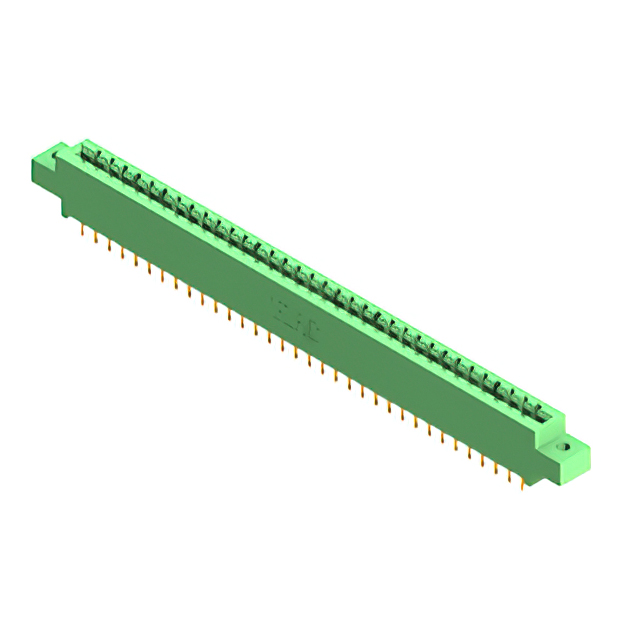

EDAC Inc. 337-034-558-602	Polyester Thermoplastic		Wire Wrap	Single	Non Specified - Single Edge	3.96 mm	0.156 in	-40 C	105 ░C	34		Copper Alloy	Gold		Cantilever	Right Angle Through Hole	Green		Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm		1	34	1	3.25 mm	0.128 "
EDAC Inc. 337-034-544-101	Polyester Thermoplastic		Wire Wrap	Single	Non Specified - Single Edge	3.96 mm	0.156 in	-40 C	105 ░C	34		Copper Alloy	Gold		Cantilever	Through Hole	Green		Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm		1	34	1

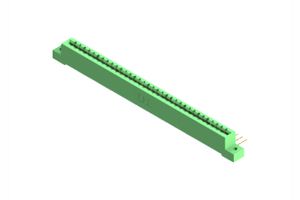

EDAC Inc. 337-034-559-102	Polyester Thermoplastic		Wire Wrap	Single	Non Specified - Single Edge	3.96 mm	0.156 in	-40 C	105 ░C	34	Flush Mount Top Opening Unthreaded	Copper Alloy	Gold		Cantilever	Right Angle Through Hole	Green		Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm		1	34	1	3.25 mm	0.128 "
EDAC Inc. 337-034-542-104	Polyester Thermoplastic		Wire Wrap	Single	Non Specified - Single Edge	3.96 mm	0.156 in	-40 C	105 ░C	34	Flush Mount Top Opening Unthreaded	Copper Alloy	Gold		Cantilever	Through Hole	Green		Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm		1	34	1	3.96 mm	0.156 "
