TPS720 Series
Manufacturer: Texas Instruments
Beta
⌘K

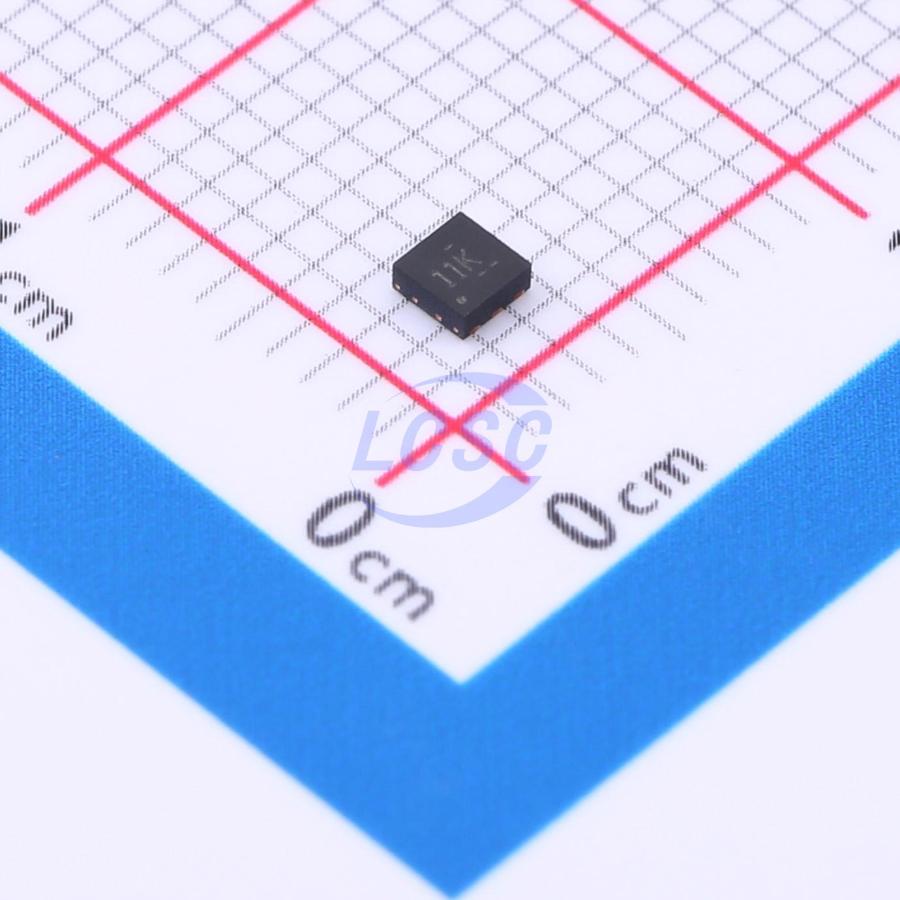

LDO VOLTAGE REGULATORS SGL OUTPUT LDO 350MA FIXED BIAS PIN A 595-TPS72018DRVR
| Part | Control Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Dropout (Max) | Supplier Device Package | Voltage - Input (Max) [Max] | Voltage - Output (Min/Fixed) | Current - Output | Protection Features | PSRR [Max] | PSRR [Min] | Current - Quiescent (Iq) | Mounting Type | Output Configuration | Number of Regulators | Current - Supply (Max) [Max] | Supplier Device Package [x] | Supplier Device Package [y] | Package / Case | Board Type | Supplied Contents | Regulator Type | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Contents | Channels per IC | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Enable | -40 C | 125 °C | 0.2 V | 6-WSON (2x2) | 4.5 V | 1.8 V | 350 mA | Over Current Over Temperature Under Voltage Lockout (UVLO) | 85 dB | 50 dB | 38 µA | Surface Mount | Positive | 1 | 80 µA | ||||||||||||
 Texas Instruments | Enable | -40 C | 125 °C | 0.2 V | 5-DSBGA | 4.5 V | 0.9 V | 350 mA | Over Current Over Temperature Under Voltage Lockout (UVLO) | 85 dB | 50 dB | 38 µA | Surface Mount | Positive | 1 | 80 µA | 0.96 | 1.33 | 6-UFBGA DSBGA | |||||||||
 Texas Instruments | 350 mA | Fully Populated | Board(s) | Positive Fixed | 1.5 V | 4.5 V | 1.3 V | Board(s) | 1 | TPS72013 | ||||||||||||||||||
Texas Instruments | Enable | -40 C | 125 °C | 0.2 V | 6-WSON (2x2) | 4.5 V | 1.05 V | 350 mA | Over Current Over Temperature Under Voltage Lockout (UVLO) | 85 dB | 50 dB | 38 µA | Surface Mount | Positive | 1 | 80 µA | ||||||||||||
Texas Instruments | Enable | -40 C | 125 °C | 0.2 V | 6-WSON (2x2) | 4.5 V | 1 V | 350 mA | Over Current Over Temperature Under Voltage Lockout (UVLO) | 85 dB | 50 dB | 38 µA | Surface Mount | Positive | 1 | 80 µA | ||||||||||||
 Texas Instruments | Enable | -40 C | 125 °C | 0.2 V | 5-DSBGA | 4.5 V | 1.05 V | 350 mA | Over Current Over Temperature Under Voltage Lockout (UVLO) | 85 dB | 50 dB | 38 µA | Surface Mount | Positive | 1 | 80 µA | 0.96 | 1.33 | 6-UFBGA DSBGA | |||||||||
Texas Instruments | Enable | -40 C | 125 °C | 0.2 V | 5-DSBGA | 4.5 V | 1.05 V | 350 mA | Over Current Over Temperature Under Voltage Lockout (UVLO) | 85 dB | 50 dB | 38 µA | Surface Mount | Positive | 1 | 80 µA | 0.96 | 1.33 | 6-UFBGA DSBGA | |||||||||
 Texas Instruments | Enable | -40 C | 125 °C | 0.2 V | 5-DSBGA | 4.5 V | 0.9 V | 350 mA | Over Current Over Temperature Under Voltage Lockout (UVLO) | 85 dB | 50 dB | 38 µA | Surface Mount | Positive | 1 | 80 µA | 0.96 | 1.33 | 6-UFBGA DSBGA | |||||||||
Texas Instruments | Enable | -40 C | 125 °C | 0.2 V | 5-DSBGA | 4.5 V | 1.02 V | 350 mA | Over Current Over Temperature Under Voltage Lockout (UVLO) | 85 dB | 50 dB | 38 µA | Surface Mount | Positive | 1 | 80 µA | 0.96 | 1.33 | 6-UFBGA DSBGA | |||||||||
Texas Instruments | Enable | -40 C | 125 °C | 0.2 V | 6-WSON (2x2) | 4.5 V | 1.5 V | 350 mA | Over Current Over Temperature Under Voltage Lockout (UVLO) | 85 dB | 50 dB | 38 µA | Surface Mount | Positive | 1 | 80 µA |
