ACNW3430 Series

Catalog

OPTOISO 5KV 1CH GATE DVR 8SMD GW

Part	Number of Channels [custom]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Mounting Type	Technology	Supplier Device Package	Current - Peak Output	Common Mode Transient Immunity (Min) [Min]	Voltage - Forward (Vf) (Typ)	Pulse Width Distortion (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Approval Agency	Current - DC Forward (If) (Max) [Max]	Propagation Delay tpLH / tpHL (Max) [Max]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Package / Case
Broadcom Limited ACNW3430-500E	1	4 A	4 A	Surface Mount	Optical Coupling	8-SMD Gull Wing	5 A	100 V/ns	1.45 V	80 ns	-40 C	105 ░C	20 ns	10 ns	CSA IEC/EN/DIN UR	25 mA	150 ns	15 V	30 V

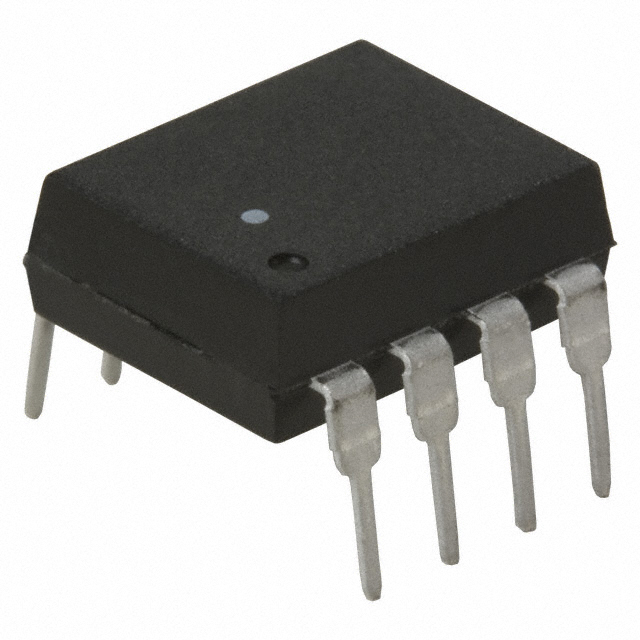

Broadcom Limited ACNW3430-000E	1	4 A	4 A	Through Hole	Optical Coupling	8-DIP	5 A	100 V/ns	1.45 V	80 ns	-40 C	105 ░C	20 ns	10 ns	CSA IEC/EN/DIN UR	25 mA	150 ns	15 V	30 V	8-DIP (0.400" 10.16mm)
