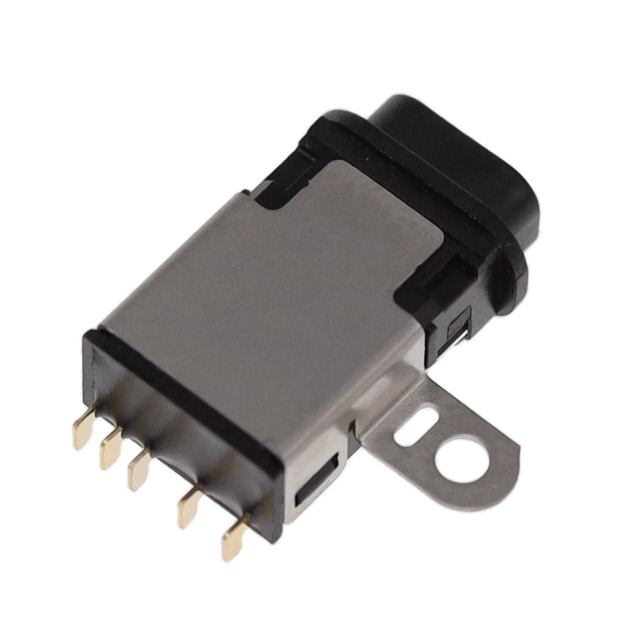

ASJ-182 Series
Manufacturer: Adam Tech
Beta
⌘K
AUDIO JACK, WATERPROOF
| Part | Housing Material | Contact Material | Contact Material - Plating | Current Rating (Amps) | Mating Length/Depth | Mating Length/Depth | Body Color | Voltage - Rated | Mounting Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Features | Gender | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Signal Lines | Actual Diameter [diameter] | Actual Diameter [diameter] | Termination | Insulation Color | Connector Type | Internal Switch(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Thermoplastic | Copper Alloy | Gold | 1 A | 14 mm | 0.551 in | Black | 12 VDC | Right Angle Through Hole | 5 | 4 | IP67 | Female | 0.125 in | 3.5 mm | 0.141 in | 85 °C | -25 °C | Shielded | Stereo (4 Conductor TRRS) | 0.142 in | 3.6 mm | Solder | Black | Phone Jack |
