32K421 Series
Manufacturer: Rosenberger
Beta
⌘K
SMA PANEL JACK
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Center Contact Plating | Body Material | Mating Cycles | Voltage Rating | Shield Termination | Center Contact Material | Number of Ports | Connector Style | Mounting Type | Impedance | Contact Termination | Connector Type | Mounting Feature | Fastening Type | Frequency - Max [Max] | Body Finish | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

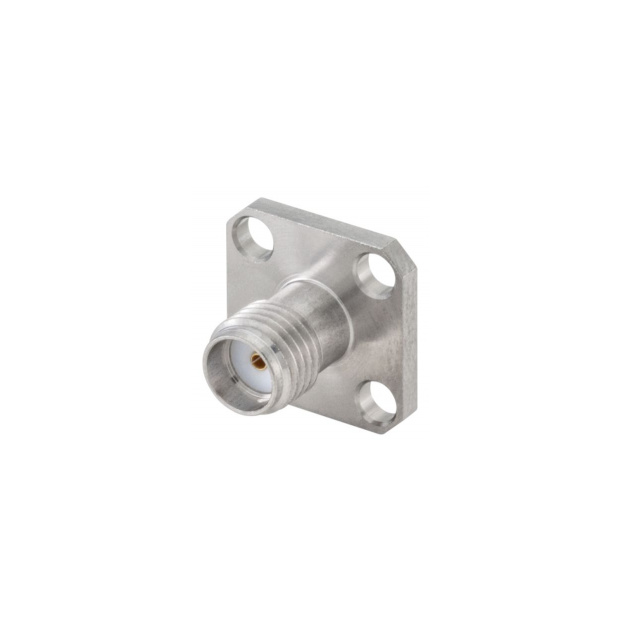

 Rosenberger | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | 500 | 480 V | Solder | Beryllium Copper | 1 | SMA | Panel Mount | 50 Ohms | Solder | Female Socket Jack | Flange | Threaded | 18 GHz | ||

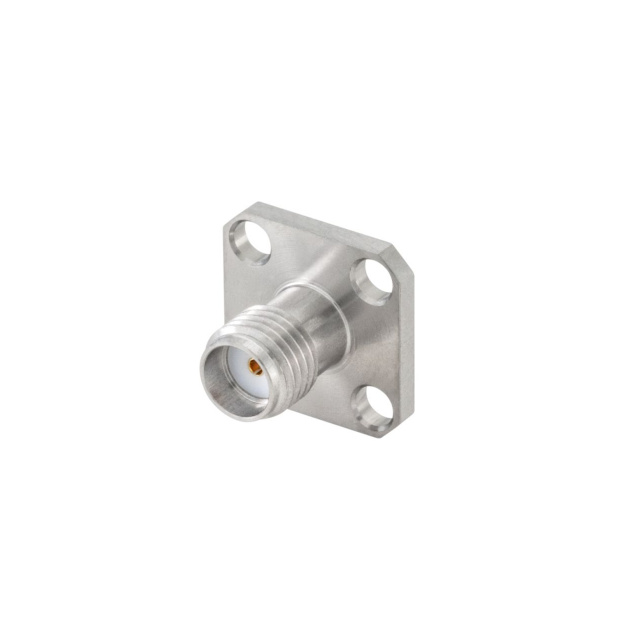

 Rosenberger | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | 500 | 480 V | Solder | Beryllium Copper | 1 | SMA | Panel Mount | 50 Ohms | Solder | Female Socket Jack | Flange | Threaded | 18 GHz | ||

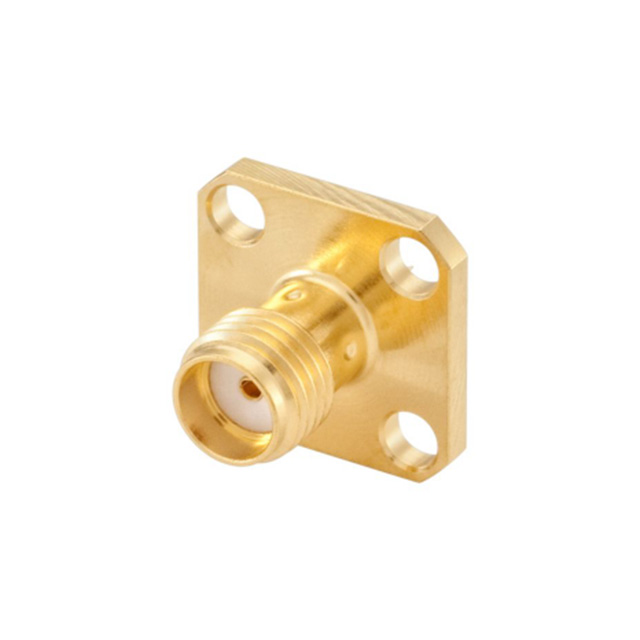

 Rosenberger | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | 500 | 480 V | Solder | Beryllium Copper | 1 | SMA | Panel Mount | 50 Ohms | Solder Cup | Female Socket Jack | Flange | Threaded | 18 GHz | Gold | Gold |
