25_BNC-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

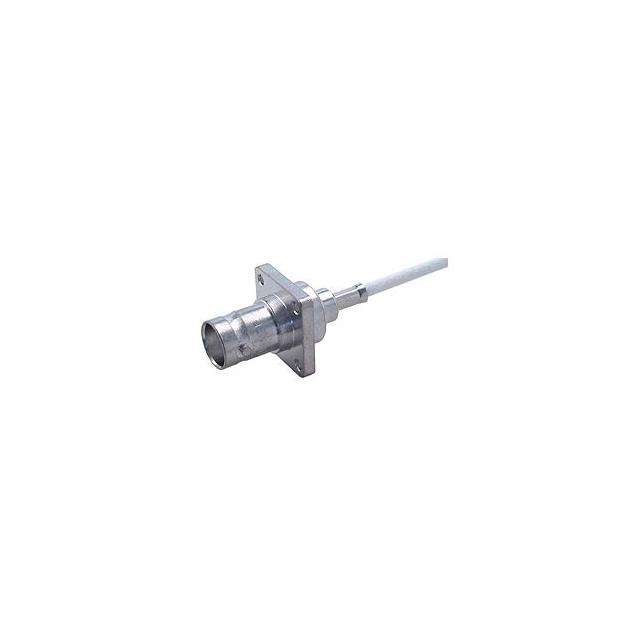

25_BNC-50-3-17/133_NE
| Part | Mating Cycles | Body Finish | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Housing Color | Mounting Type | Mounting Feature | Number of Ports | Connector Type | Contact Termination | Connector Style | Impedance | Fastening Type | Shield Termination | Center Contact Material | Cable Group | Frequency - Max [Max] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 500 | Tri-Metal | Brass | Gold | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Silver | Panel Mount | Flange | 1 | Female Socket Jack | Crimp | BNC | 50 Ohms | Bayonet Lock | Crimp | Beryllium Copper | 223 RG-142 | 4 GHz | |
 Huber+Suhner, Inc. | 500 | Tri-Metal | Brass | Gold | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Silver | Panel Mount | Flange | 1 | Female Socket Jack | Solder | BNC | 50 Ohms | Bayonet Lock | Clamp | Beryllium Copper | RG-405 (.086 Semi Rigid) | 4 GHz | |
 Huber+Suhner, Inc. | 500 | White Bronze | Brass | Gold | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Silver | Panel Mount | Flange | 1 | Female Socket Jack | Crimp | BNC | 50 Ohms | Bayonet Lock | Crimp | Beryllium Copper Brass | 188 316 RG-174 | 4 GHz | 500 V |
Huber+Suhner, Inc. | 500 | Tri-Metal | Brass | Gold | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Silver | Panel Mount | Flange | 1 | Female Socket Jack | Solder | BNC | 50 Ohms | Bayonet Lock | Solder | Beryllium Copper | RG-405 (.086 Semi Rigid) | 4 GHz |
