EN2C4F Series

Catalog

CONN PLUG FMALE 4POS GOLD CRIMP

Part	Current Rating (Amps)	Voltage Rating	Insert Material	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Fastening Type	Primary Material	Contact Finish - Mating	Features	Color	Contact Material	Backshell Material, Plating	Orientation	Shielding	Connector Type	Mounting Type	Material Flammability Rating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Termination	Applications	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]

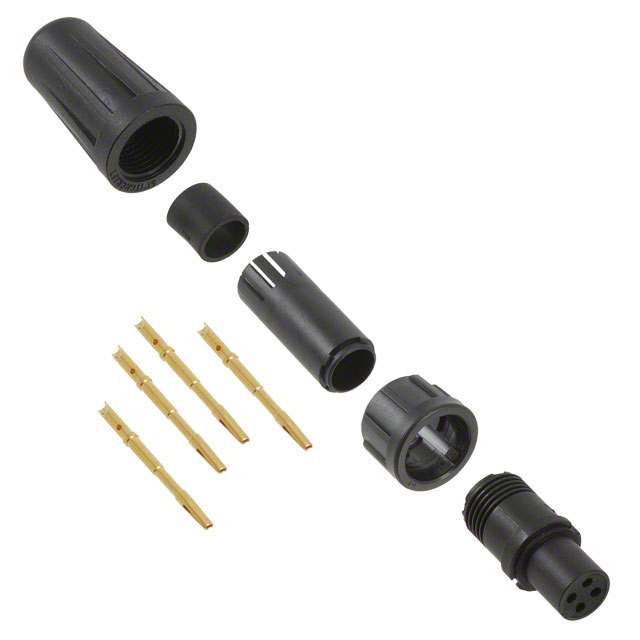

Switchcraft Inc. EN2C4F22G3	1.5 A	125 VAC	Elastomer	IP66 IP67 IP68	85 °C	-40 °C	4	Bayonet Lock	Plastic	Gold	Backshell Coupling Nut	Black	Copper Alloy	Thermoplastic	Keyed	Unshielded	Female Sockets Plug	Free Hanging (In-Line)	UL94 V-0	0.18 in	0.22 in	4.57 mm	5.59 mm	Crimp Solder Cup	Communication Systems Industrial Marine Medical

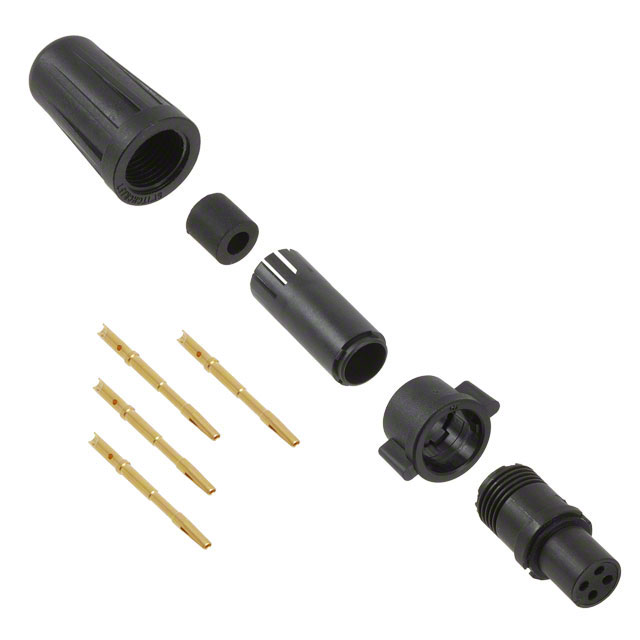

Switchcraft Inc. EN2C4F22G1W	1.5 A	125 VAC	Elastomer	IP66 IP67 IP68	85 °C	-40 °C	4	Bayonet Lock	Plastic	Gold	Backshell Coupling Nut Winged	Black	Copper Alloy	Thermoplastic	Keyed	Unshielded	Female Sockets Plug	Free Hanging (In-Line)	UL94 V-0					Crimp Solder Cup	Communication Systems Industrial Marine Medical	2.54 mm 3.56 mm	0.1 in 0.14 in

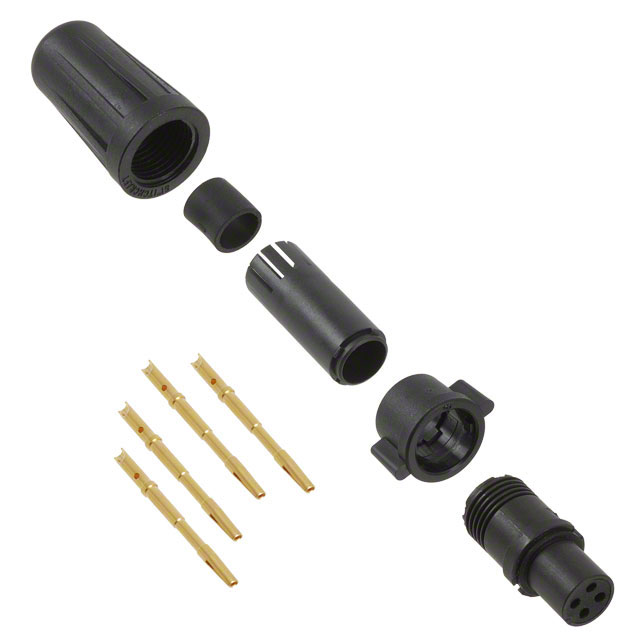

Switchcraft Inc. EN2C4F22G3W	1.5 A	125 VAC	Elastomer	IP66 IP67 IP68	85 °C	-40 °C	4	Bayonet Lock	Plastic	Gold	Backshell Coupling Nut Winged	Black	Copper Alloy	Thermoplastic	Keyed	Unshielded	Female Sockets Plug	Free Hanging (In-Line)	UL94 V-0	0.18 in	0.22 in	4.57 mm	5.59 mm	Crimp Solder Cup	Communication Systems Industrial Marine Medical

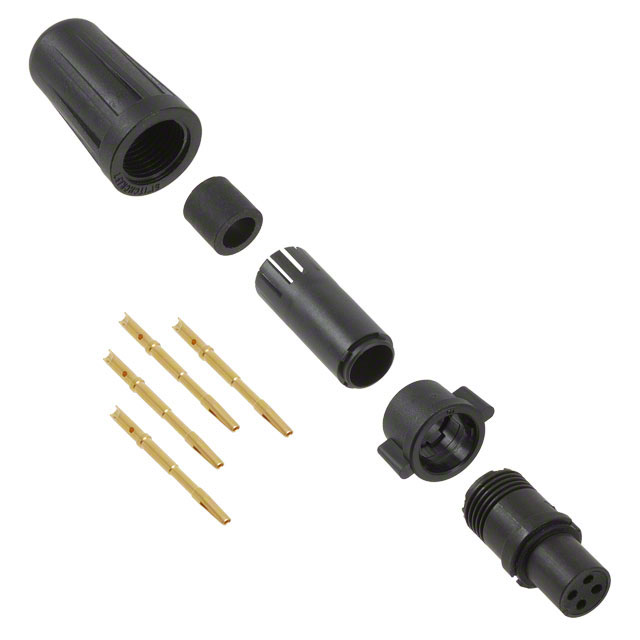

Switchcraft Inc. EN2C4F22G2W	1.5 A	125 VAC	Elastomer	IP66 IP67 IP68	85 °C	-40 °C	4	Bayonet Lock	Plastic	Gold	Backshell Coupling Nut Winged	Black	Copper Alloy	Thermoplastic	Keyed	Unshielded	Female Sockets Plug	Free Hanging (In-Line)	UL94 V-0					Crimp Solder Cup	Communication Systems Industrial Marine Medical			4.57 mm	3.56 mm	0.14 in	0.18 in

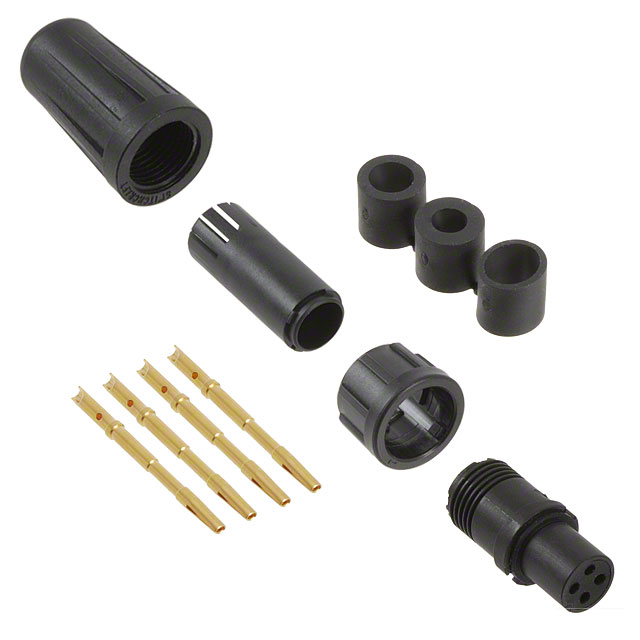

Switchcraft Inc. EN2C4F22DC	1.5 A	125 VAC	Elastomer	IP66 IP67 IP68	85 °C	-40 °C	4	Bayonet Lock	Plastic	Gold	Backshell Coupling Nut	Black	Copper Alloy	Thermoplastic	Keyed	Unshielded	Female Sockets Plug	Free Hanging (In-Line)	UL94 V-0					Crimp Solder Cup	Communication Systems Industrial Marine Medical

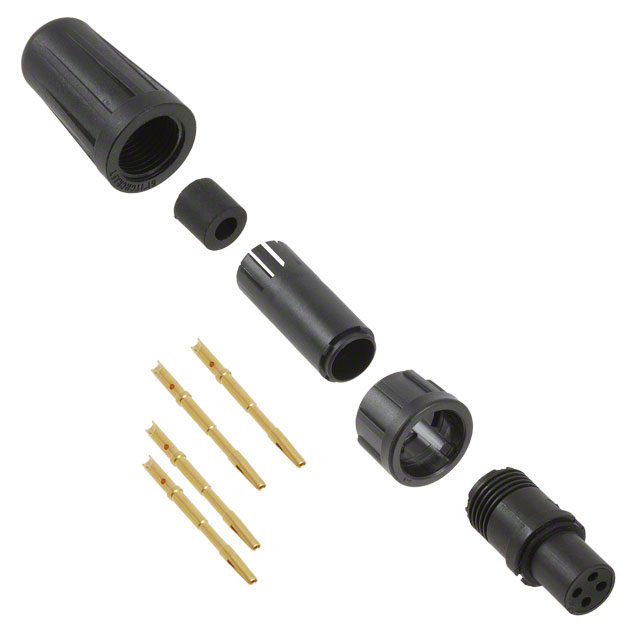

Switchcraft Inc. EN2C4F22G1	1.5 A	125 VAC	Elastomer	IP66 IP67 IP68	85 °C	-40 °C	4	Bayonet Lock	Plastic	Gold	Backshell Coupling Nut	Black	Copper Alloy	Thermoplastic	Keyed	Unshielded	Female Sockets Plug	Free Hanging (In-Line)	UL94 V-0					Crimp Solder Cup	Communication Systems Industrial Marine Medical	2.54 mm 3.56 mm	0.1 in 0.14 in
