9269 Series
Manufacturer: Belden Inc.
Beta
⌘K

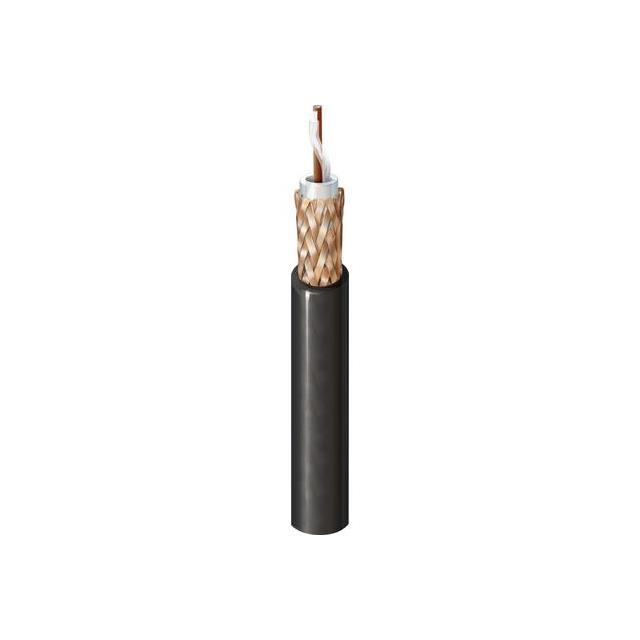

COAX RG-62A/U 22AWG 93 OHM
| Part | Shield Material | Dielectric Material | VoP, Velocity of Propagation | Conductor Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Length [x] | Length [x] | Cable Group | Jacket (Insulation) Material | Impedance | Conductor Strand | Shield Type | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Bare | Semi Solid Polyethylene (SSPE) | 84 | Copper Coated Steel | 95 % | 80 °C | -40 C | 3.71 mm | 0.146 in | Black | 0.239 " | 6.07 mm | 22 AWG | 304.8 m | 1000 ft | RG-62A | Poly-Vinyl Chloride (PVC) | 93 Ohms | Solid | Braid | Coaxial |
Belden Inc. | Copper Bare | Semi Solid Polyethylene (SSPE) | 84 | Copper Coated Steel | 95 % | 80 °C | -40 C | 3.71 mm | 0.146 in | Black | 0.239 " | 6.07 mm | 22 AWG | 304.8 m | 1000 ft | RG-62A | Poly-Vinyl Chloride (PVC) | 93 Ohms | Solid | Braid | Coaxial |
Belden Inc. | Copper Bare | Semi Solid Polyethylene (SSPE) | 84 | Copper Coated Steel | 95 % | 80 °C | -40 C | 3.71 mm | 0.146 in | Black | 0.239 " | 6.07 mm | 22 AWG | 152.4 m | 500 ft | RG-62A | Poly-Vinyl Chloride (PVC) | 93 Ohms | Solid | Braid | Coaxial |
