333-036 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

...

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Color	Card Type	Read Out	Number of Positions/Bay/Row [custom]	Contact Finish	Contact Type	Gender	Contact Material	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Number of Positions/Bay/Row	Number of Rows	Features

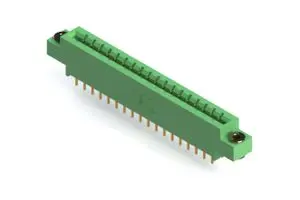

EDAC Inc. 333-036-521-803	Polyester Thermoplastic	2	2	Solder	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	3.96 mm	0.156 in	0.25 Ám	10 Áin	Through Hole	Green	Non Specified - Dual Edge	Dual	18	Gold	Cantilever	Female	Copper Alloy	36	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C
EDAC Inc. 333-036-541-102	Polyester Thermoplastic			Wire Wrap	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	3.96 mm	0.156 in	0.25 Ám	10 Áin	Through Hole	Green	Non Specified - Single Edge	Single		Gold	Cantilever	Female	Copper Alloy	36	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	1	36	1
EDAC Inc. 333-036-540-203	Polyester Thermoplastic	2	2	Wire Wrap	Floating Bobbin Flush Mount	0.116 "	2.95 mm	3.96 mm	0.156 in	0.25 Ám	10 Áin	Through Hole	Green	Non Specified - Dual Edge	Dual	18	Gold	Cantilever	Female	Copper Alloy	36	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C

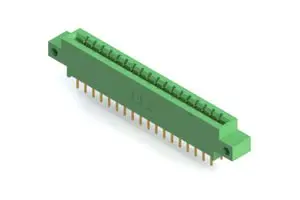

EDAC Inc. 333-036-520-812	Polyester Thermoplastic	2	2	Solder	Side Mount Opening Unthreaded	0.128 "	3.25 mm	3.96 mm	0.156 in	0.25 Ám	10 Áin	Through Hole	Green	Non Specified - Dual Edge	Dual	18	Gold	Cantilever	Female	Copper Alloy	36	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C

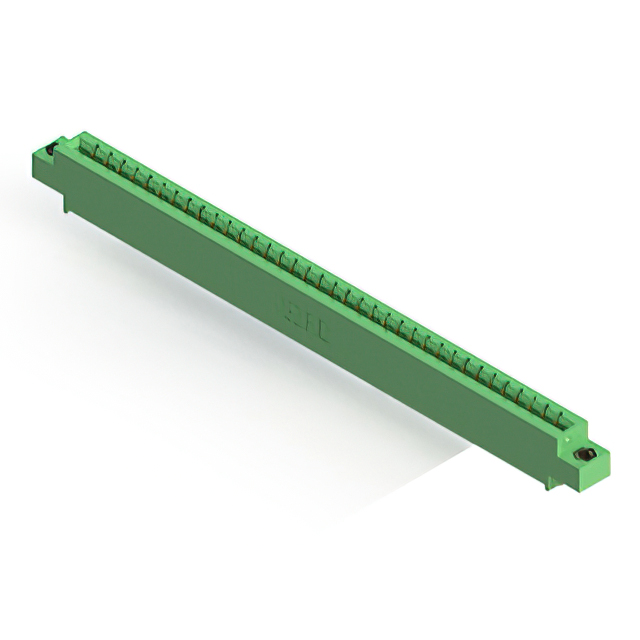

EDAC Inc. 333-036-521-607	Polyester Thermoplastic			Solder	M3 Threaded Insert Top Mount Opening			3.96 mm	0.156 in	0.25 Ám	10 Áin	Through Hole	Green	Non Specified - Single Edge	Single		Gold	Cantilever	Female	Copper Alloy	36	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	1	36	1
EDAC Inc. 333-036-524-104	Polyester Thermoplastic			Solder	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	3.96 mm	0.156 in	0.25 Ám	10 Áin	Through Hole	Green	Non Specified - Single Edge	Single		Gold	Cantilever	Female	Copper Alloy	36	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	1	36	1

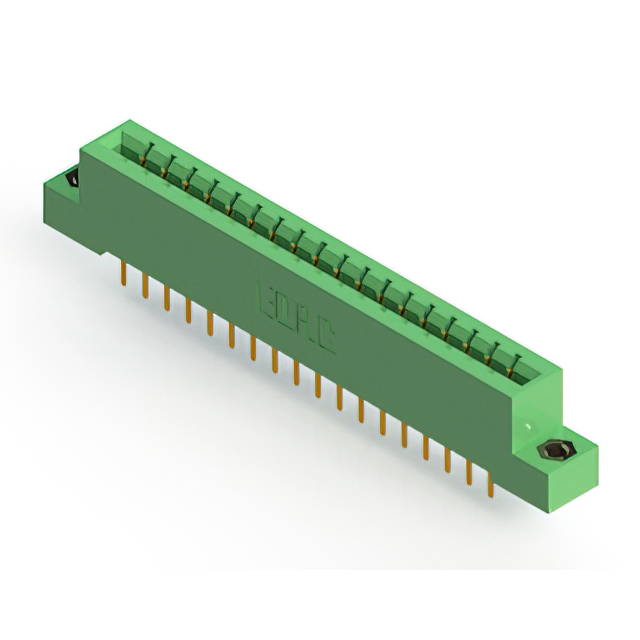

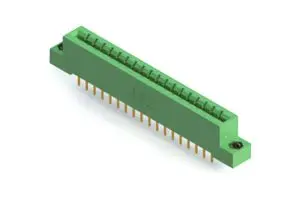

EDAC Inc. 333-036-520-207	Polyester Thermoplastic	2	2	Solder	Flush Mount M3 Threaded Insert Top Opening			3.96 mm	0.156 in	0.25 Ám	10 Áin	Through Hole	Green	Non Specified - Dual Edge	Dual	18	Gold	Cantilever	Female	Copper Alloy	36	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C

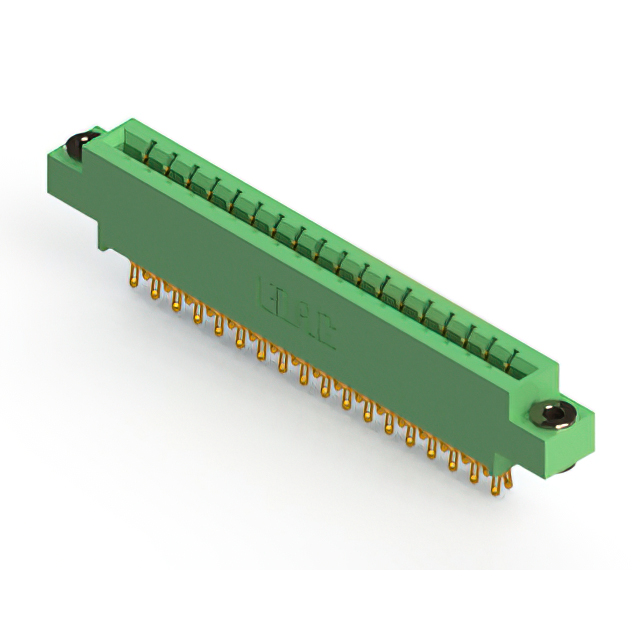

EDAC Inc. 333-036-555-803	Polyester Thermoplastic	2	2	Solder Eyelet(s)	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	3.96 mm	0.156 in	0.25 Ám	10 Áin	Board Edge Straddle Mount	Green	Non Specified - Dual Edge	Dual	18	Gold	Cantilever	Female	Copper Alloy	36	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C				Card Extender

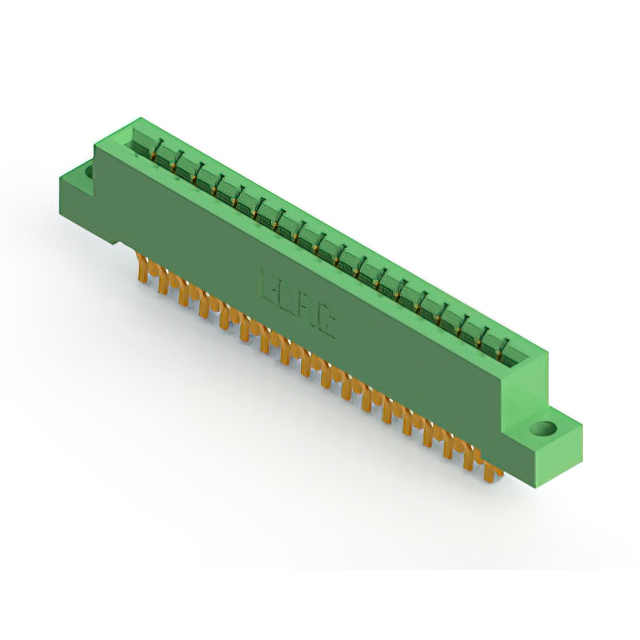

EDAC Inc. 333-036-560-204	Polyester Thermoplastic	2	2	Solder	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	3.96 mm	0.156 in	0.25 Ám	10 Áin	Board Edge Straddle Mount	Green	Non Specified - Dual Edge	Dual	18	Gold	Cantilever	Female	Copper Alloy	36	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C				Card Extender

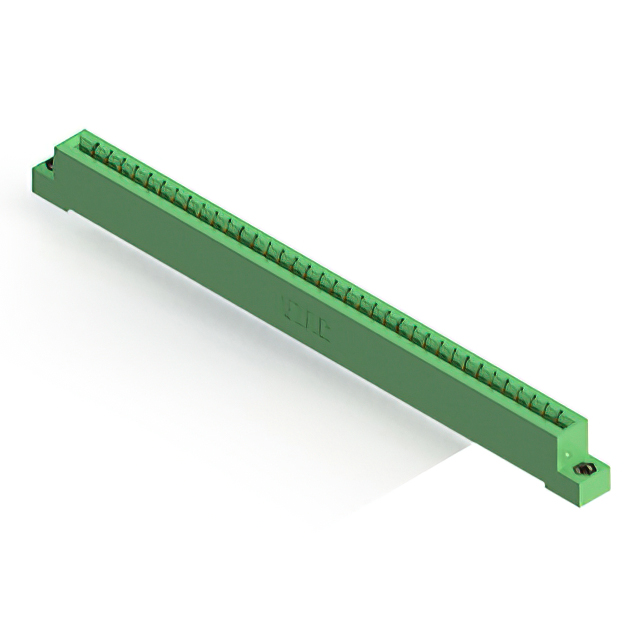

EDAC Inc. 333-036-520-108	Polyester Thermoplastic			Solder	4-40 Flush Mount Threaded Insert Top Opening			3.96 mm	0.156 in	0.25 Ám	10 Áin	Through Hole	Green	Non Specified - Single Edge	Single		Gold	Cantilever	Female	Copper Alloy	36	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	1	36	1
