861400082 Series

Catalog

8614 M CNR

Part	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating	Termination	Fastening Type	Insulation Height [z]	Insulation Height [z]	Number of Rows	Shrouding	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Type	Connector Type	Insulation Material	Contact Material	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]
Amphenol ICC (FCI) 861400082YO1LF	All	2.54 mm	0.1 in	UL94 V-0	Tin	100 °C	-40 °C	Through Hole	500 VAC	Solder	Push-Pull	0.102 in	2.6 mm	2	Unshrouded	3 A	0.496 in	12.6 mm	0.118 in	3 mm	0.1 in	2.54 mm	8	Male Pin	Breakaway Header	Thermoplastic	Copper Alloy	Square
Amphenol ICC (FCI) 861400082YO2846LF	All							Through Hole		Solder	Push-Pull	0.102 in	2.6 mm	2	Unshrouded						0.1 in	2.54 mm	8	Male Pin	Header			Square
Amphenol ICC (FCI) 861400082YO2LF	All	2.54 mm	0.1 in	UL94 V-0		125 °C	-55 °C	Through Hole	1000 VDC	Solder	Push-Pull	0.102 in	2.6 mm	2	Unshrouded	3 A	0.496 in	12.6 mm	0.118 in	3 mm	0.1 in	2.54 mm	8	Male Pin	Breakaway Header	Thermoplastic	Copper Alloy	Square	0.203 Ám	8 Áin	Gold or Gold GXT™

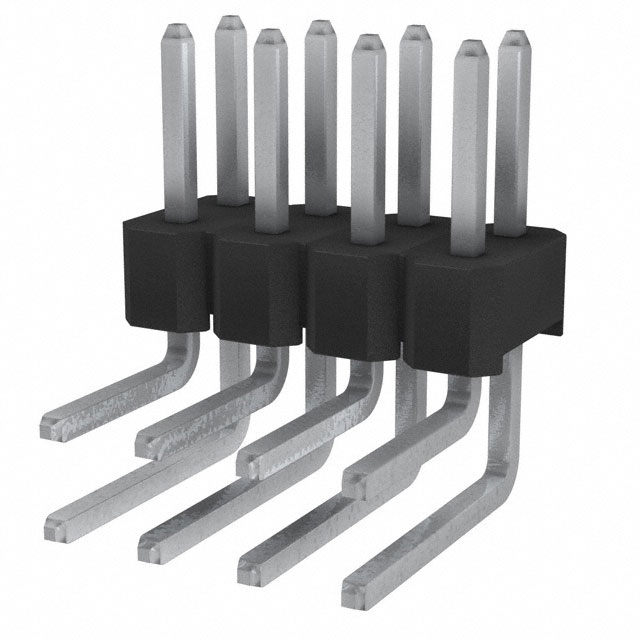

Amphenol ICC (FCI) 861400082LO1332	All	2.54 mm	0.1 in	UL94 V-0		100 °C	-40 °C	Through Hole Right Angle	500 VAC	Solder	Push-Pull			2	Unshrouded	3 A			0.098 in	2.5 mm	0.1 in	2.54 mm	8	Male Pin	Breakaway Header	Thermoplastic	Copper Alloy	Square				0.224 in	5.7 mm
Amphenol ICC (FCI) 861400082LO1332LF	All	2.54 mm	0.1 in	UL94 V-0	Tin	100 °C	-40 °C	Through Hole Right Angle	500 VAC	Solder	Push-Pull			2	Unshrouded	3 A			0.098 in	2.5 mm	0.1 in	2.54 mm	8	Male Pin	Breakaway Header	Thermoplastic	Copper Alloy	Square				0.224 in	5.7 mm
