9464 Series
Manufacturer: Belden Inc.
Beta
⌘K

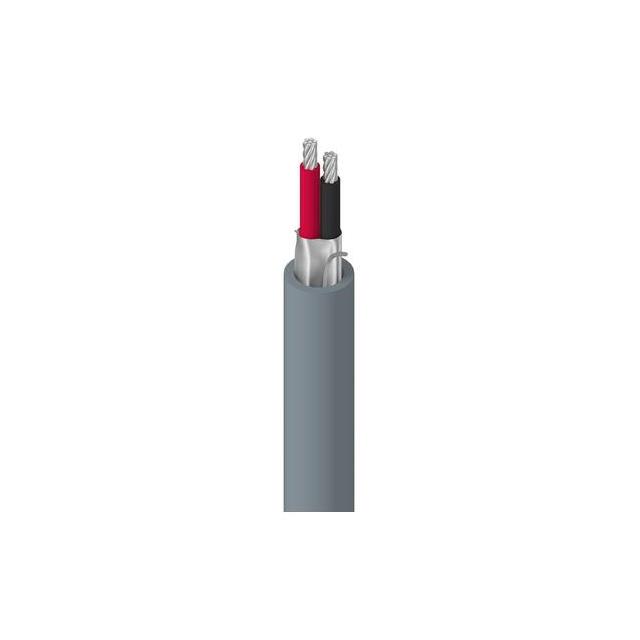

CABLE 2CON 20AWG CHROM SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Conductor Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Jacket Color | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Features | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Copper Tinned | Foil | 5.44 mm | 0.214 in | Multi-Conductor | 20 AWG | 0.035 in | 0.889 mm | 152.4 m | 500 ft | -20 ░C | 60 °C | Audio Control Instrumentation | Chrome | 2 | 28 AWG | 7 | 300 VDC | Drain Wire | Polyethylene (PE) |
