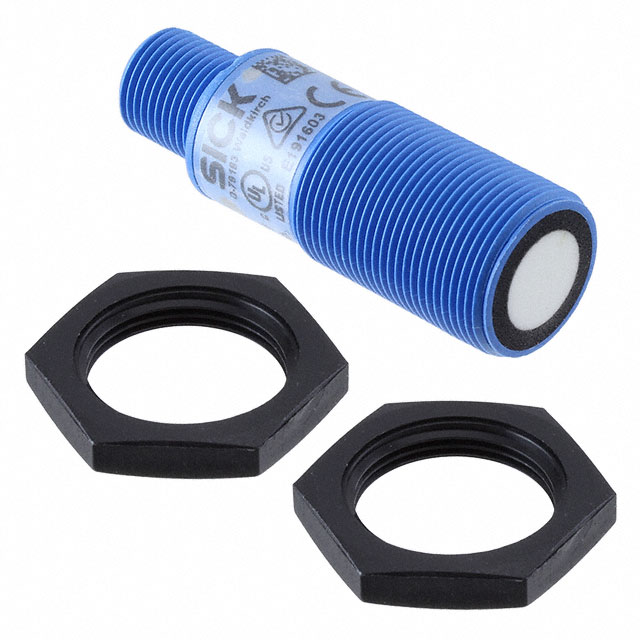

UM18 Series
Manufacturer: SICK, Inc.
Beta
⌘K
ULTRASONIC SENSOR, 320KHZ, 250MM ROHS COMPLIANT: YES
| Part | Sensing Distance [Max] | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Distance [Min] | Indicator | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Termination Style | Ingress Protection | Output Type | Sensor Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Material - Body | Response Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SICK, Inc. | 250 mm | 9.843 " | 1.181 in | 30 mm | LED | -25 °C | 70 °C | Cylinder Threaded - M18 | Connector | IP67 | Analog Voltage | Ultrasonic | 30 VDC | 10 VDC 15 VDC | Nickel-Plated Brass | |
 SICK, Inc. | 100 cm | 39.37 in | 4.724 in | 120 mm | LED | -25 °C | 70 °C | Cylinder Threaded - M18 | Connector | IP67 | NPN | Ultrasonic | 30 VDC | 10 VDC | Polybutylene Terephthalate (PBT) | 10 Hz |
 SICK, Inc. | 15 cm | 5.906 in | 0.787 " | 20 mm | LED | -25 °C | 70 °C | Cylinder Threaded - M18 | Connector | IP67 | NPN | Ultrasonic | 30 VDC | 10 VDC | Polybutylene Terephthalate (PBT) | 25 Hz |
 SICK, Inc. | 350 mm | 13.78 " | 2.559 in | 65 mm | LED | -25 °C | 70 °C | Cylinder Threaded - M18 | Connector | IP67 | Analog Current | Ultrasonic | 30 VDC | 10 VDC | Nickel-Plated Brass | |
SICK, Inc. | 100 cm | 39.37 in | 4.724 in | 120 mm | LED | -25 °C | 70 °C | Cylinder Threaded - M18 | Connector | IP67 | Analog Voltage | Ultrasonic | 30 VDC | 10 VDC 15 VDC | Nickel-Plated Brass | |
 SICK, Inc. | 15 cm | 5.906 in | 0.787 " | 20 mm | LED | -25 °C | 70 °C | Cylinder Threaded - M18 | Connector | IP67 | Analog Voltage | Ultrasonic | 30 VDC | 10 VDC 15 VDC | Nickel-Plated Brass | |
 SICK, Inc. | 100 cm | 39.37 in | 4.724 in | 120 mm | LED | -25 °C | 70 °C | Cylinder Threaded - M18 | Connector | IP67 | Analog Voltage | Ultrasonic | 30 VDC | 10 VDC 15 VDC | Nickel-Plated Brass | |
SICK, Inc. | 250 mm | 9.843 " | 1.181 in | 30 mm | LED | -25 °C | 70 °C | Cylinder Threaded - M18 | Connector | IP67 | Analog Current | Ultrasonic | 30 VDC | 10 VDC | Nickel-Plated Brass | |
SICK, Inc. | 15 cm | 5.906 in | 0.787 " | 20 mm | LED | -25 °C | 70 °C | Cylinder Threaded - M18 | Connector | IP67 | Analog Current | Ultrasonic | 30 VDC | 10 VDC | Nickel-Plated Brass | |
SICK, Inc. | 100 cm | 39.37 in | 4.724 in | 120 mm | LED | -25 °C | 70 °C | Cylinder Threaded - M18 | Connector | IP67 | Analog Current | Ultrasonic | 30 VDC | 10 VDC | Nickel-Plated Brass |
