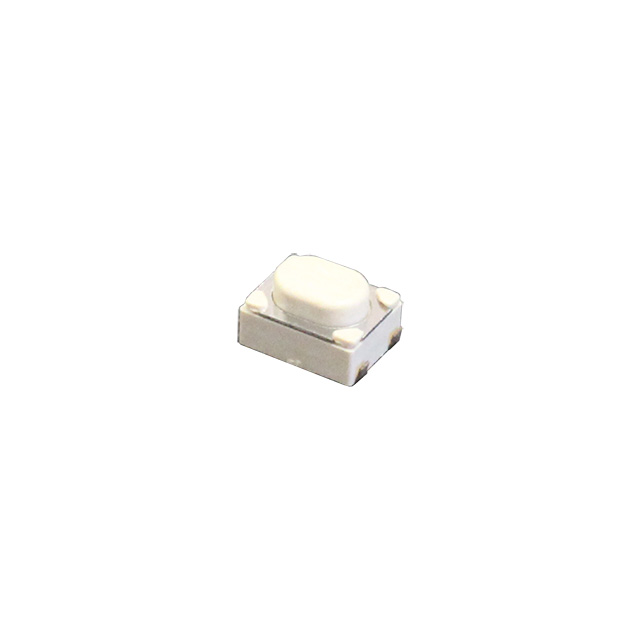

CS1215A Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Actuator Material | Termination Style | Operating Force | Contact Rating @ Voltage | Actuator Orientation | Actuator Length, Right Angle | Circuit | Switch Function | Illumination | Outline [x] | Outline [y] | Actuator Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Liquid Crystal Polymer (LCP) | J Lead | 260 gf | 0.05 A 50 VDC | Top Actuated | 2.5 mm | SPST-NO | Off-Mom | Non-Illuminated | 4.2 mm | 3.2 mm | Oval Button | Surface Mount | 85 °C | -40 C |
CIT Relay and Switch | Liquid Crystal Polymer (LCP) | J Lead | 160 gf | 0.05 A 50 VDC | Top Actuated | 2.5 mm | SPST-NO | Off-Mom | Non-Illuminated | 4.2 mm | 3.2 mm | Oval Button | Surface Mount | 85 °C | -40 C |
