1534797 Series

Catalog

CARD EDGE CONNECTOR, 11 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, SOLDER TERMINAL, NATURAL INSULATOR, RECEPTACLE

Part	Cable Termination	Wire Type	Features	Connector Type	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows	Wire Gauge [Max]	Wire Gauge [Min]	Contact Type	Mounting Type

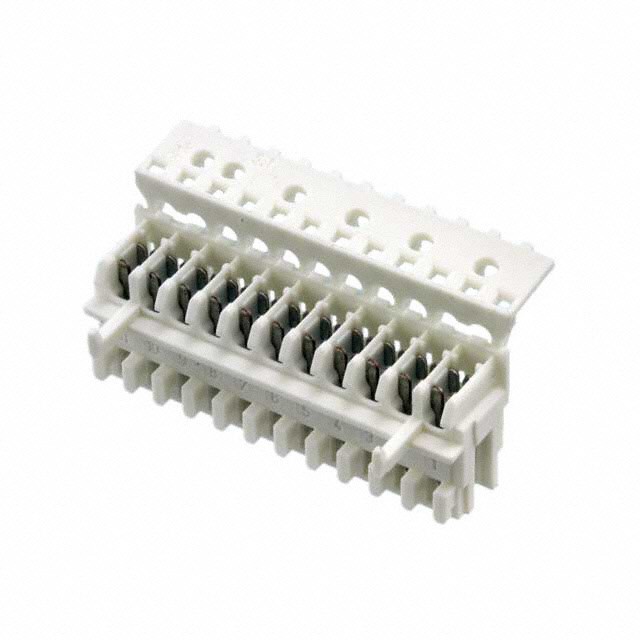

TE Connectivity Raychem Cable Protection 3-1534797-1	IDC	Discrete	Mates to PCB	Receptacle	11	Tin	0.098 in	2.5 mm	1	24 AWG	22 AWG	Female Blade Socket	Free Hanging (In-Line) Right Angle

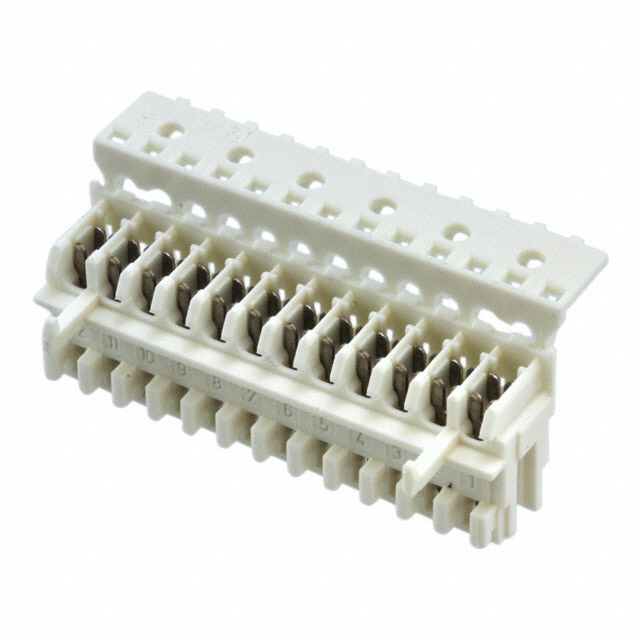

TE Connectivity Raychem Cable Protection 3-1534797-2	IDC	Discrete	Mates to PCB	Receptacle	12	Tin	0.098 in	2.5 mm	1	24 AWG	22 AWG	Female Blade Socket	Free Hanging (In-Line) Right Angle

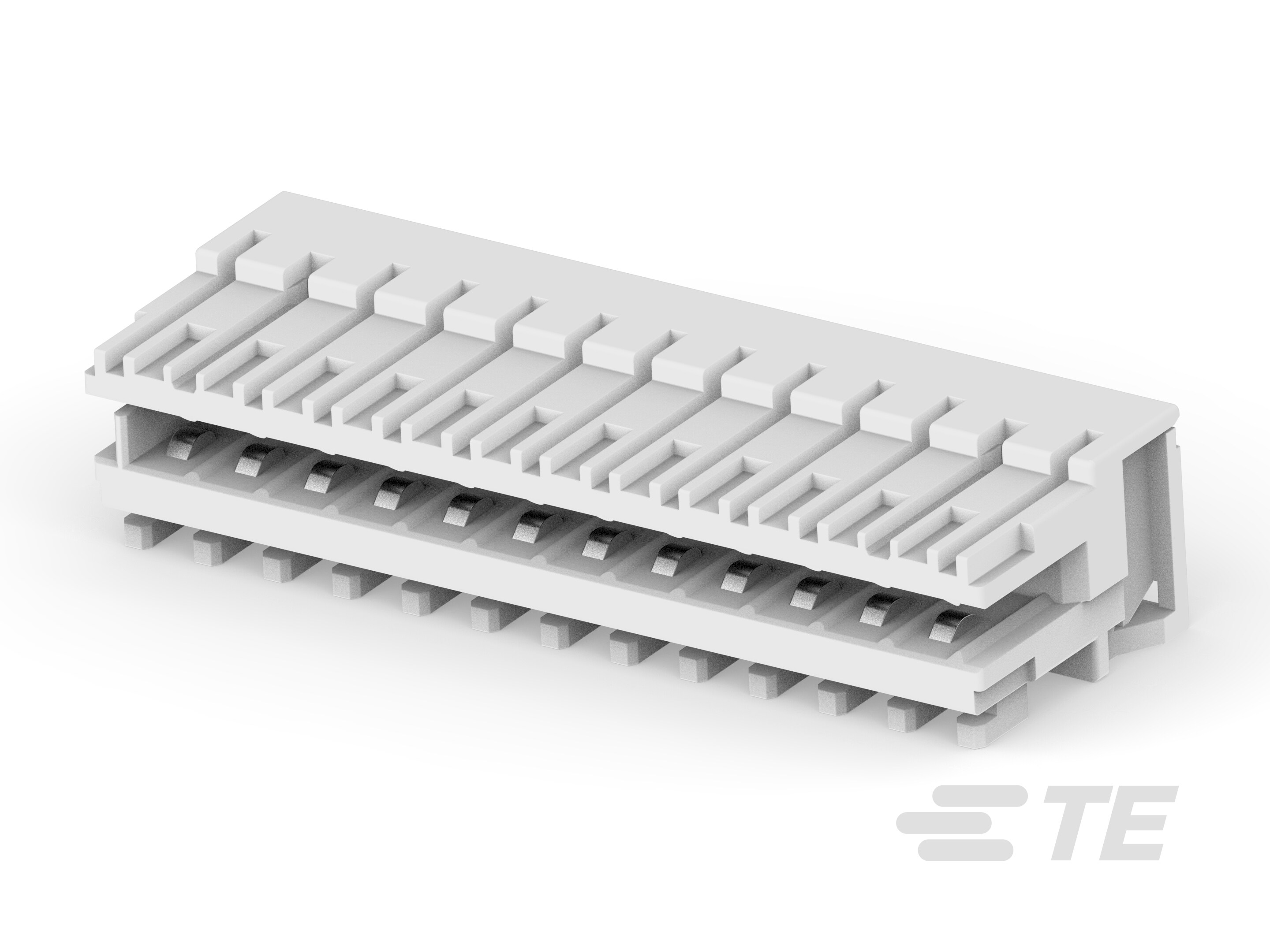

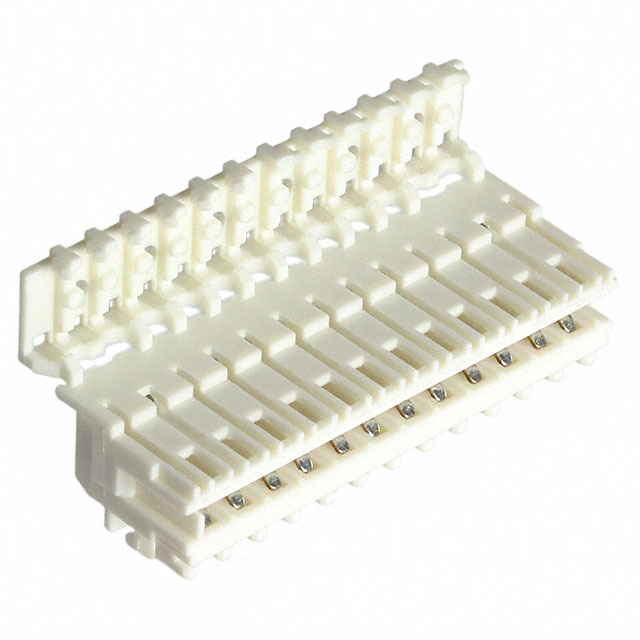

TE Connectivity Raychem Cable Protection 4-1534797-2	IDC	Discrete	Mates to PCB	Receptacle	12	Tin	0.098 in	2.5 mm	1	24 AWG	22 AWG	Female Blade Socket	Free Hanging (In-Line) Right Angle

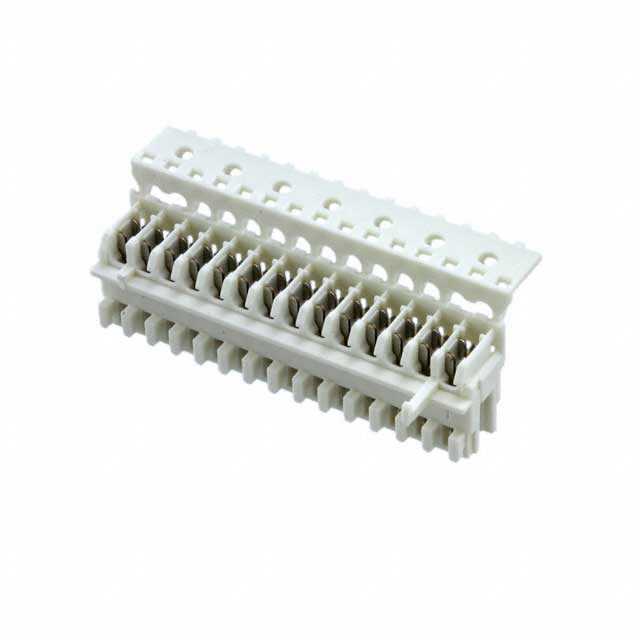

TE Connectivity Raychem Cable Protection 3-1534797-4	IDC	Discrete	Mates to PCB	Receptacle	14	Tin	0.098 in	2.5 mm	1	24 AWG	22 AWG	Female Blade Socket	Free Hanging (In-Line) Right Angle
