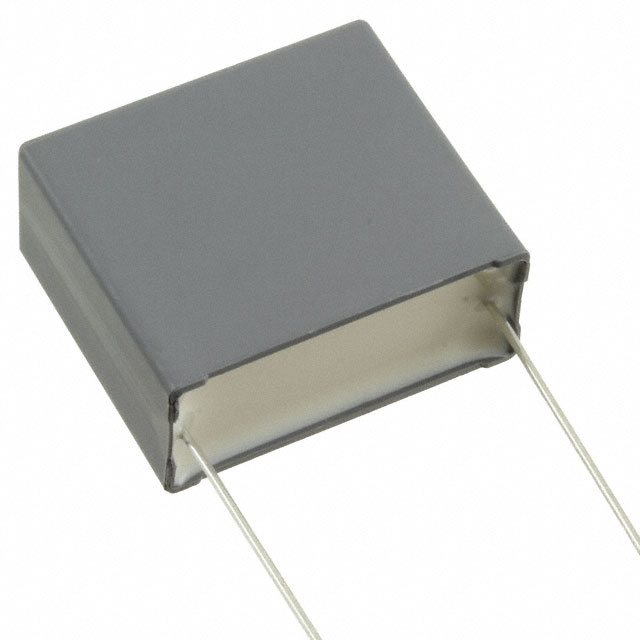

R75QW Series

Manufacturer: KEMET

Catalog

CAP FILM 1.5UF 5% 1KVDC RADIAL

Part	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Applications	Tolerance	Voltage Rating - AC	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - DC	Voltage Rating - DC	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Mounting Type	ESR (Equivalent Series Resistance)	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R75QW41504000J	1500 nF	1.264 "	32.1 mm	PC Pins	DV/DT High Frequency High Pulse Switching	5 %	250 V	Radial	1.634 in	19 mm	41.5 mm	0.748 in	1 kV	1 kVDC	37.5 mm	1.476 in	-55 C	105 ░C	Polypropylene (PP) Metallized	Through Hole
KEMET R75QW433050H0J	3.3 µF			PC Pins	Automotive High Frequency Switching High Pulse DV/DT	5 %	250 V	Radial	1.634 in	30 mm	41.5 mm	1.181 in	1 kV	1 kVDC	37.5 mm	1.476 in	-55 C	125 °C	Polypropylene (PP) Metallized	Through Hole	7.2 mOhms	AEC-Q200	1.776 in	45.1 mm
KEMET R75QW368050L0J	0.68 µF			PC Pins	DV/DT High Frequency High Pulse Switching	5 %	250 V	Radial	1.634 in 41.5 mm			0.945 " 24 mm	1 kV	1 kVDC	37.5 mm	1.476 in	-55 C	105 ░C	Polypropylene (PP) Metallized	Through Hole	9.4 mOhms		0.594 in	15.1 mm
