1058628 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

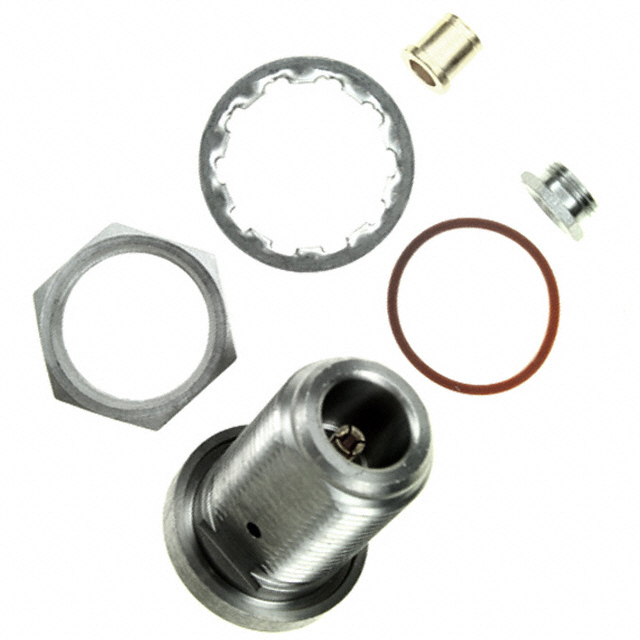

CONN N JACK STR 50 OHM SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Includes | Voltage Rating | Dielectric Material | Center Contact Plating | Mating Cycles | Impedance | Frequency - Max [Max] | Fastening Type | Mounting Type | Connector Type | Center Contact Material | Mounting Feature | Contact Termination | Housing Color | Number of Ports | Shield Termination | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -65 ░C | 125 °C | Stainless Steel | 1 Clamp 1 Connector 1 Gasket 1 Lockwasher 1 Nut 1 Sleeve | 1000 VDC | Polytetrafluoroethylene (PTFE) | Gold | 500 | 50 Ohms | 18 GHz | Threaded | Panel Mount | Female Socket Jack | Beryllium Copper | Bulkhead - Front Side Nut | Solder | Silver | 1 | Clamp | N Type |
