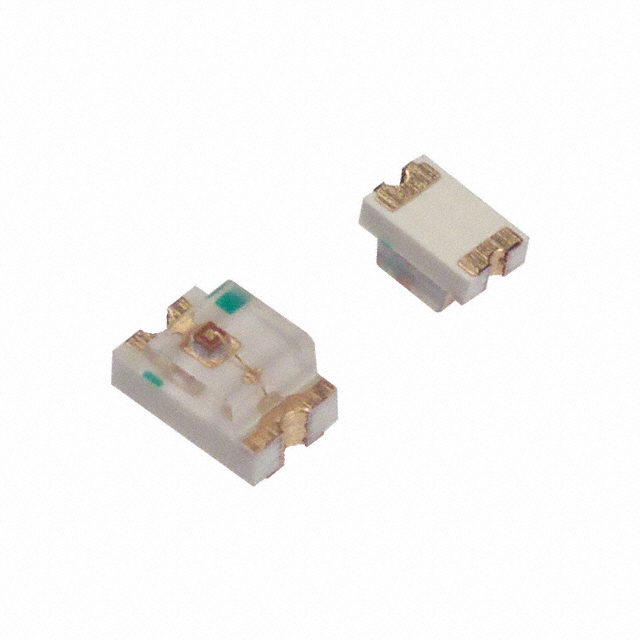

CMD17-21 Series

Catalog

LED GREEN CLEAR 0805 SMD

Part	Millicandela Rating	Configuration	Supplier Device Package	Package / Case	Mounting Type	Lens Size [x]	Lens Size [y]	Height (Max) [Max] [z]	Lens Style	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Color	Voltage - Forward (Vf) (Typ)	Lens Transparency	Lens Color	Wavelength - Peak	Current - Test
Visual Communications Company - VCC CMD17-21VGC/TR8	10 mcd	Standard	0805	0805	Surface Mount	1.4 mm	1.25 mm	1.2 mm	Rectangle with Flat Top	140 °	2 mm	1.25 mm	Green	2.1 V	Clear	Colorless	570 nm	20 mA
Visual Communications Company - VCC CMD17-21SRC/TR8	21 mcd	Standard	0805	0805	Surface Mount	1.4 mm	1.25 mm	1.2 mm	Rectangle with Flat Top	140 °	2 mm	1.25 mm	Red	1.7 V	Clear	Colorless	660 nm	20 mA

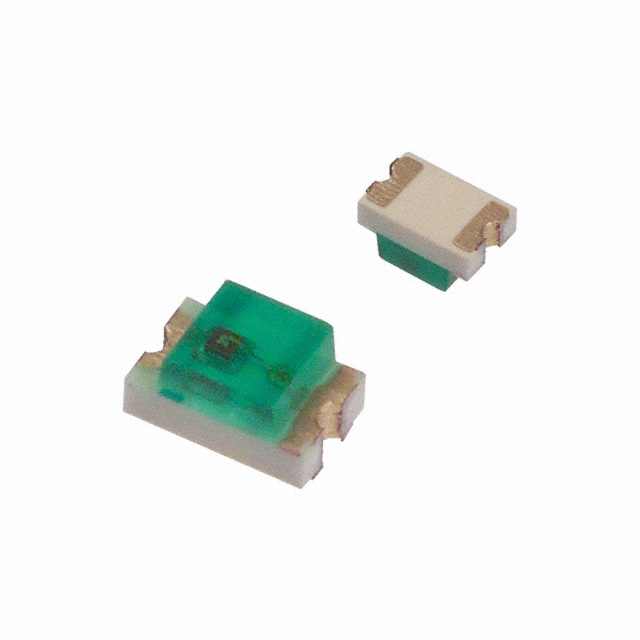

Visual Communications Company - VCC CMD17-21VGD/TR8	7 mcd	Standard	0805	0805	Surface Mount	1.4 mm	1.25 mm	1.2 mm	Rectangle with Flat Top	140 °	2 mm	1.25 mm	Green	2.1 V	Diffused	Green	570 nm	20 mA

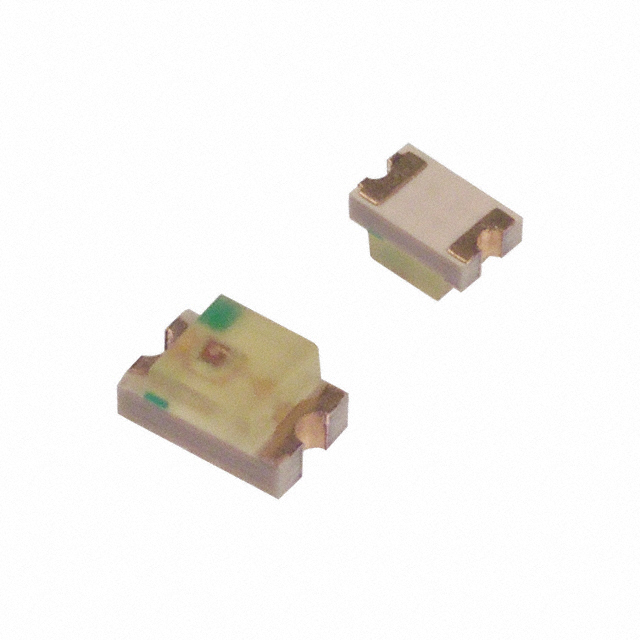

Visual Communications Company - VCC CMD17-21VYD/TR8	4 mcd 50 mcd	Standard	0805	0805	Surface Mount	1.4 mm	1.25 mm	1.2 mm	Rectangle with Flat Top	140 °	2 mm	1.25 mm	Yellow	2 V	Diffused	Yellow	585 nm 591 nm	20 mA
Visual Communications Company - VCC CMD17-21UGC/TR8	15 mcd	Standard	0805	0805	Surface Mount	1.4 mm	1.25 mm	1.2 mm	Rectangle with Flat Top	140 °	2 mm	1.25 mm	Green	2.1 V	Clear	Colorless	570 nm	20 mA
