317-046 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 46POS 0.156

Part	Material - Insulation	Number of Rows [custom]	Read Out	Number of Positions	Mounting Type	Contact Material	Color	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Positions/Bay/Row	Gender	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 317-046-542-801	Diallyl Phthalate (DAP)	2	Dual	46	Through Hole	Copper Alloy	Green	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Wire Wrap	0.25 Ám	10 Áin	3.96 mm	0.156 in	23	Female
EDAC Inc. 317-046-540-802	Diallyl Phthalate (DAP)	2	Dual	46	Through Hole	Copper Alloy	Green	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Wire Wrap	0.25 Ám	10 Áin	3.96 mm	0.156 in	23	Female
EDAC Inc. 317-046-542-808	Diallyl Phthalate (DAP)	2	Dual	46	Through Hole	Copper Alloy	Green	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Wire Wrap	0.25 Ám	10 Áin	3.96 mm	0.156 in	23	Female	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 317-046-540-807	Diallyl Phthalate (DAP)	2	Dual	46	Through Hole	Copper Alloy	Green	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Wire Wrap	0.25 Ám	10 Áin	3.96 mm	0.156 in	23	Female	M3 Threaded Insert Top Mount Opening

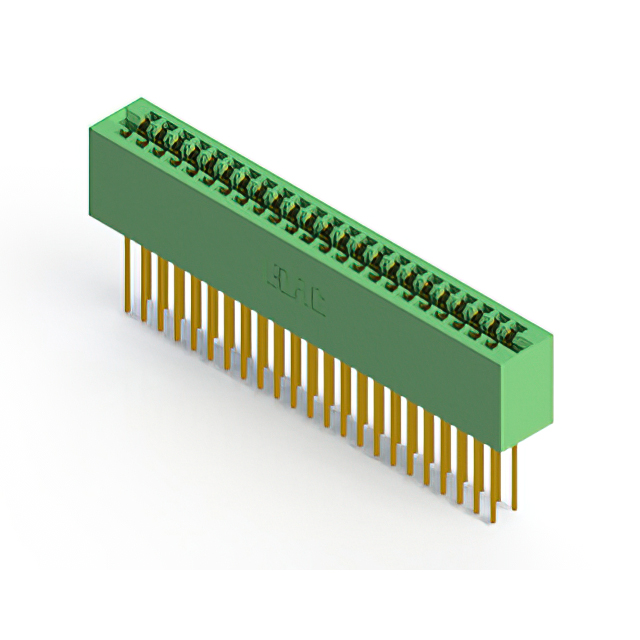

EDAC Inc. 317-046-540-801	Diallyl Phthalate (DAP)	2	Dual	46	Through Hole	Copper Alloy	Green	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Wire Wrap	0.25 Ám	10 Áin	3.96 mm	0.156 in	23	Female
EDAC Inc. 317-046-542-803	Diallyl Phthalate (DAP)	2	Dual	46	Through Hole	Copper Alloy	Green	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Wire Wrap	0.25 Ám	10 Áin	3.96 mm	0.156 in	23	Female	Floating Bobbin Flush Mount	0.116 "	2.95 mm

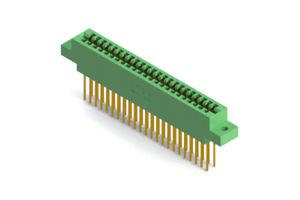

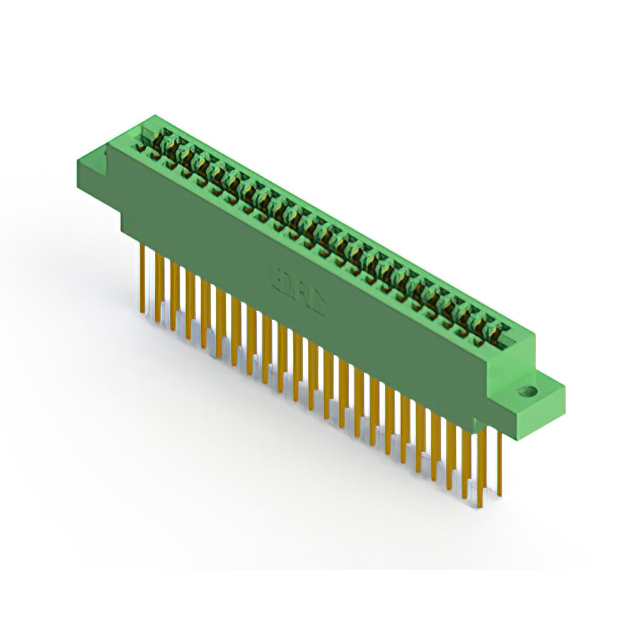

EDAC Inc. 317-046-540-804	Diallyl Phthalate (DAP)	2	Dual	46	Through Hole	Copper Alloy	Green	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Wire Wrap	0.25 Ám	10 Áin	3.96 mm	0.156 in	23	Female		0.156 "	3.96 mm
EDAC Inc. 317-046-540-803	Diallyl Phthalate (DAP)	2	Dual	46	Through Hole	Copper Alloy	Green	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Wire Wrap	0.25 Ám	10 Áin	3.96 mm	0.156 in	23	Female	Floating Bobbin Flush Mount	0.116 "	2.95 mm

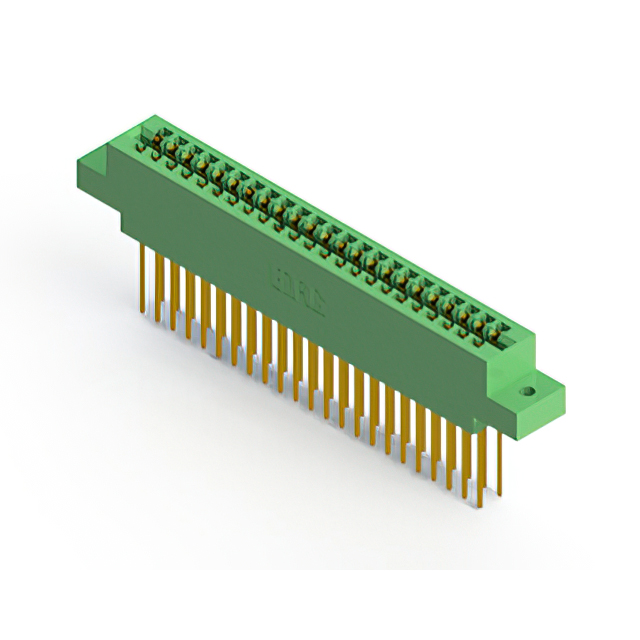

EDAC Inc. 317-046-542-802	Diallyl Phthalate (DAP)	2	Dual	46	Through Hole	Copper Alloy	Green	Non Specified - Dual Edge	-65 ░C	125 °C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Wire Wrap	0.25 Ám	10 Áin	3.96 mm	0.156 in	23	Female
