FUSE 250V SB PT 3AB Pb-FREE .031A
Description
AI

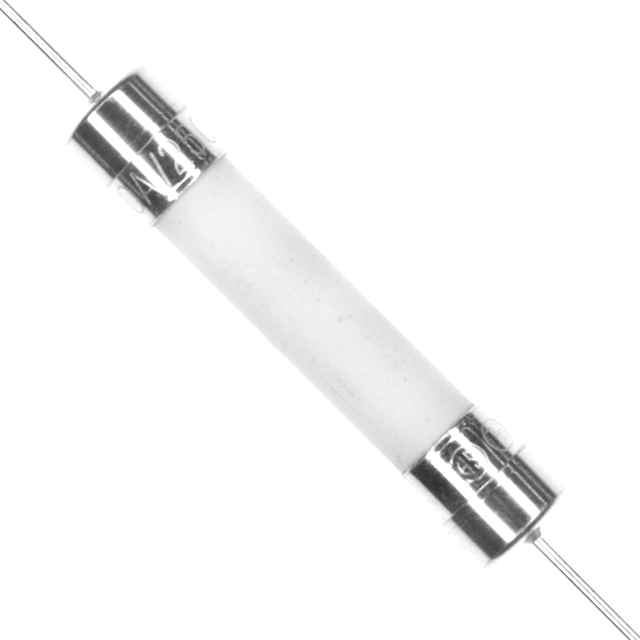

The 3AB Slo-Blo® Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
Beta
⌘K
FUSE 250V SB PT 3AB Pb-FREE .031A
FUSE 250V SB PT 3AB Pb-FREE .031A
| Part | Current Rating (Amps) | Voltage Rating - AC | Package / Case [y] | Package / Case | Package / Case [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Breaking Capacity @ Rated Voltage | Fuse Type | Melting I²t | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Response Time | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 31 mA | 250 V | 3AB 3AG | 0.25 " | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | 100 A | Cartridge Ceramic | 0.011 | -55 C | 125 °C | Through Hole | Slow Blow | CE | |
 LITTELFUSE | 31 mA | 250 V | 3AB 3AG | 0.25 " | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | 100 A | Cartridge Ceramic | 0.011 | -55 C | 125 °C | Through Hole | Slow Blow | CE |
