EN3L4F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

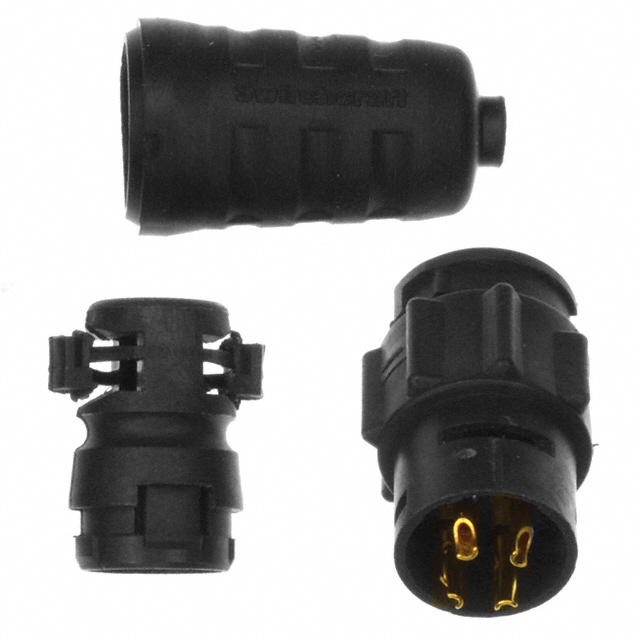

CONN RCPT FMALE 4P GOLD SLDR CUP
| Part | Applications | Primary Material | Cable Opening [diameter] | Cable Opening [diameter] | Orientation | Ingress Protection | Number of Positions | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Voltage Rating | Contact Finish - Mating | Features | Color | Shielding | Insert Material | Material Flammability Rating | Backshell Material, Plating | Mounting Type | Current Rating (Amps) | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | General Purpose Instrumentation Marine Medical | Plastic | 4.06 mm 6.73 mm | 0.16 in 0.265 in | Keyed | IP66/IP68 | 4 | Copper Alloy | 65 °C | -40 °C | Receptacle Female Sockets | 250 VAC | Gold | Backshell Cable Clamp | Black | Unshielded | Elastomer | UL94 V-0 | Thermoplastic | Free Hanging (In-Line) | 7.5 A | Bayonet Lock |
Switchcraft Inc. | General Purpose Instrumentation Marine Medical | Plastic | 4.06 mm 6.73 mm | 0.16 in 0.265 in | Keyed | IP66/IP68 | 4 | Copper Alloy | 65 °C | -40 °C | Receptacle Female Sockets | 250 VAC | Gold | Backshell Cable Clamp | Black | Unshielded | Elastomer | UL94 V-0 | Thermoplastic | Free Hanging (In-Line) | 7.5 A | Bayonet Lock |
