044661 Series
Manufacturer: Molex
Beta
⌘K

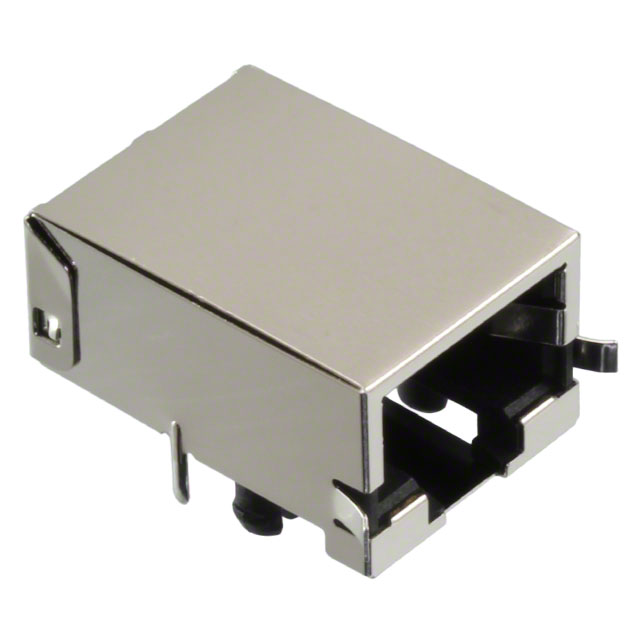

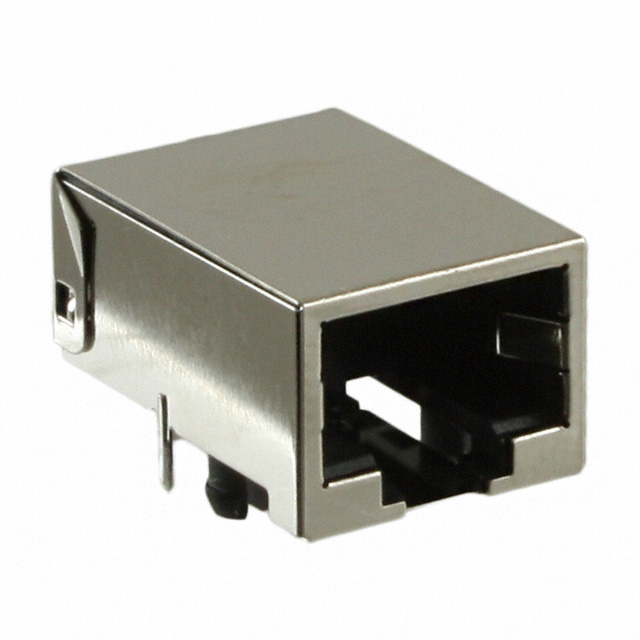

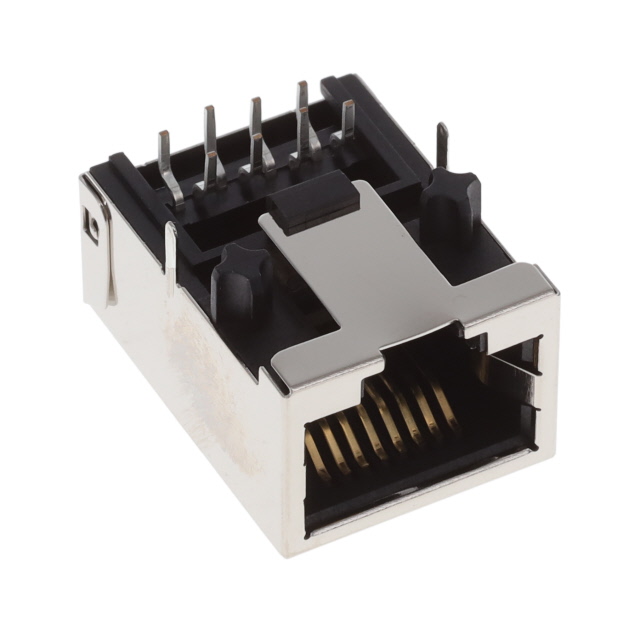

CONN MOD JACK 8P8C R/A SHIELDED
| Part | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Contacts | Tab Direction | Shielding | Contact Finish | Termination | Orientation | Mounting Type | Connector Type | Ratings | LED Color | Number of Ports | Contact Material | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Polyamide (PA) Nylon Glass Filled | 85 °C | -40 °C | 1 | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | Down | Shielded EMI Finger | Gold | Solder | 90 ° | Through Hole | Jack | Cat5e | Does Not Contain LED | 1 | Phosphor Bronze | |
 Molex | Polyamide (PA) Nylon Glass Filled | 85 °C | -40 °C | 1 | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | Down | Shielded | Gold | Solder | 90 ° | Through Hole | Jack | Cat5e | Does Not Contain LED | 1 | Phosphor Bronze | |
Molex | Polyamide (PA) Nylon Glass Filled | 85 °C | -40 °C | 1 | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | Down | Unshielded | Gold | Solder | 90 ° | Through Hole | Jack | Cat5e | Does Not Contain LED | 1 | Phosphor Bronze | |
 Molex | Polyamide (PA) Nylon Glass Filled | 85 °C | -40 °C | 1 | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | Down | Bezel EMI Finger | Gold | Solder | 90 ° | Through Hole | Jack | Cat5e | Does Not Contain LED | 1 | Phosphor Bronze | |
Molex | Polyamide (PA) Nylon Glass Filled | 85 °C | -40 °C | 1 | 50 µin | 1.27 µm | 8p8c (RJ45 Ethernet) | Down | Shielded | Gold | Solder | 90 ° | Through Hole | Jack | Cat5e | Does Not Contain LED | 1 | Phosphor Bronze |
